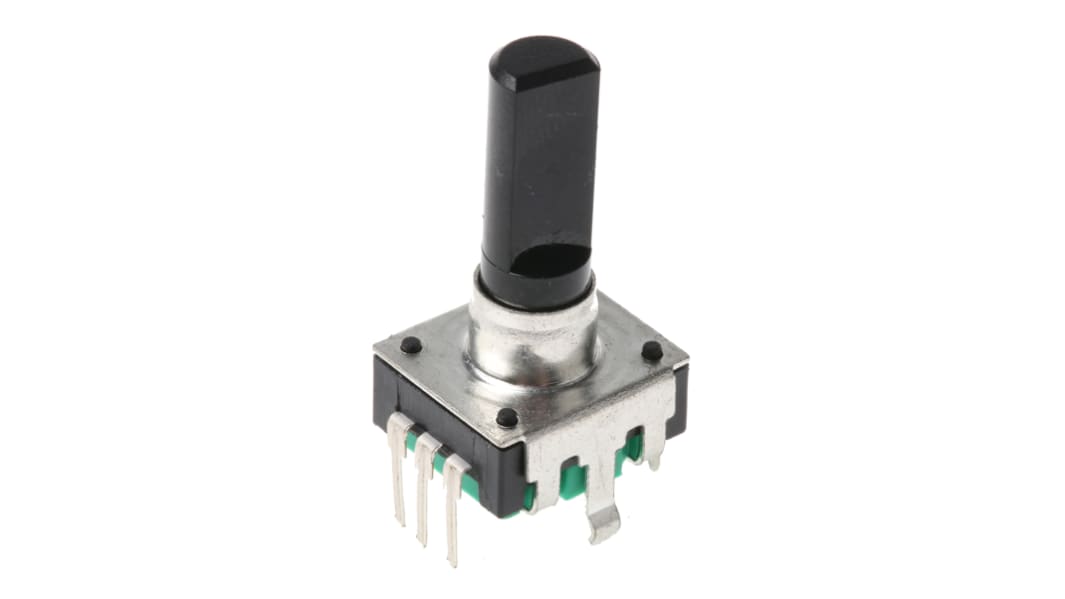

Bourns 24 Pulse Incremental Mechanical Rotary Encoder with a 6 mm Flat Shaft, Through Hole

  • RS Stock No. 167-5310
  • Mfr. Part No. PEC12R-4225F-S0024
  • Manufacturer Bourns
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CN
Product Details

PEC12R Series - 12 mm Incremental Encoder

Pro Audio 12 mm Incremental Encoder with a momentary push switch option
Highly reliable and compact design available in a variety of configurations
Applications include level control, tuning and timer settings in:-

Audio-visual equipment
Consumer electric appliances
Radios
Musical instruments
Communications equipment

Specifications
Attribute Value
Pulses Per Revolution 24
Shaft Style Flat
Shaft Diameter 6 mm
Encoder Reading Incremental
Encoder Signal Digital Square Wave
Mounting Type Through Hole
Shaft Length 25mm
Maximum Operating Speed 100rpm
Mounting Hole Diameter 1mm
On back order for despatch 01/05/2020, delivery within 5 working days from despatch date.
Price (ex. GST) Each (In a Bag of 75)
$ 1.44
(exc. GST)
$ 1.58
(inc. GST)
units
Per unit
Per Bag*
75 +
$1.44
$108.00
*price indicative
