- RS Stock No.:
- 871-7349
- Mfr. Part No.:
- KCPDC04-123
- Brand:
- Kingbright
35 In Global stock for delivery within 10 working day(s)
Added
Price (ex. GST) Each
$14.61
(exc. GST)
$16.07
(inc. GST)
Units | Per unit |
1 + | $14.61 |
- RS Stock No.:
- 871-7349
- Mfr. Part No.:
- KCPDC04-123
- Brand:
- Kingbright
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details

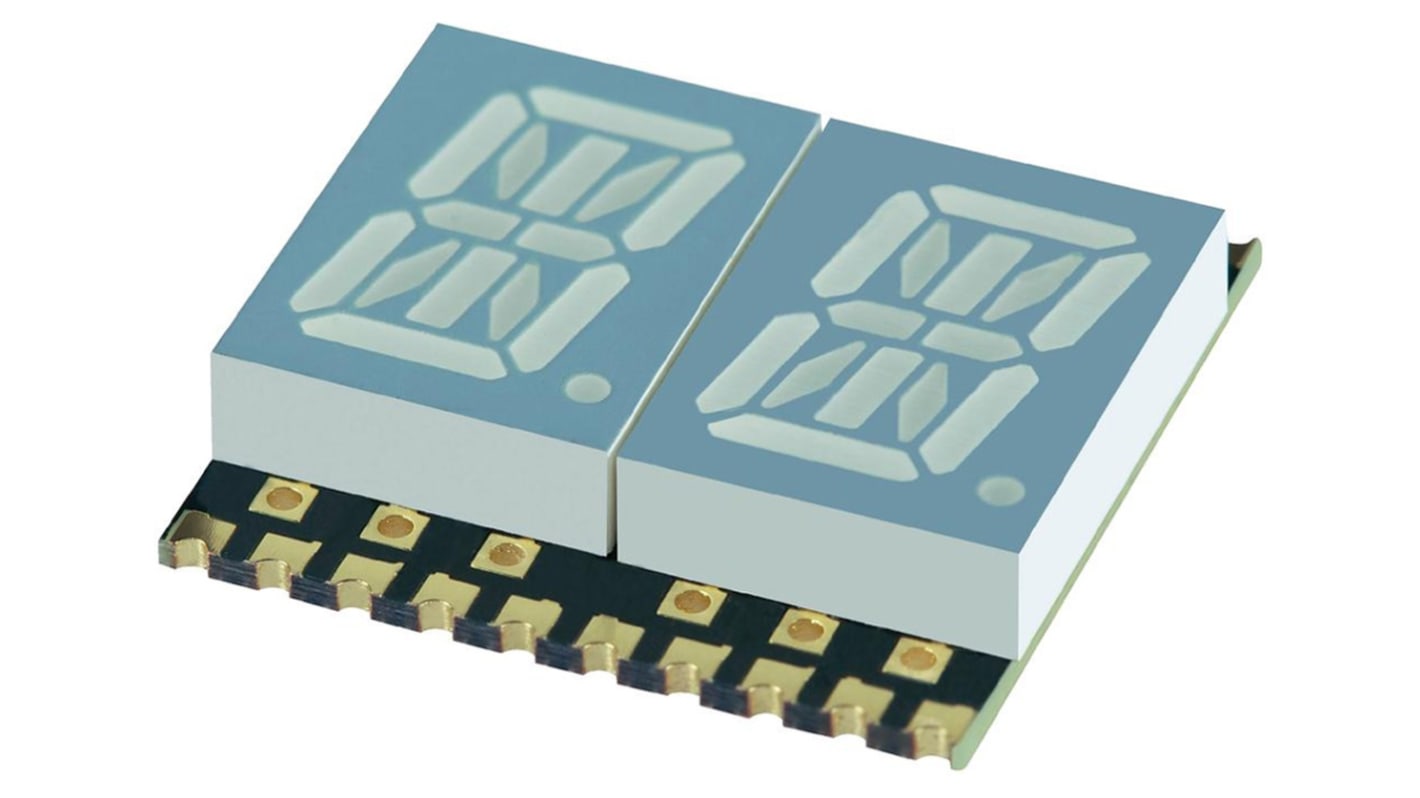

Dual Digit Alphanumeric Display, Kingbright 10.16 mm (0.4 in)
Sixteen-segment displays
Surface mounted (SMD)
Single-digit for numbers and letters
0.4 inch (10.16 mm) character height
13 x 9.3 mm display module
High contrast and high light output
Low current operation
Grey colour module face
Mechanically rugged
Colours: Red, Green, Yellow
Surface mounted (SMD)
Single-digit for numbers and letters
0.4 inch (10.16 mm) character height
13 x 9.3 mm display module
High contrast and high light output
Low current operation
Grey colour module face
Mechanically rugged
Colours: Red, Green, Yellow
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Alphanumeric LED Displays
Specifications
Attribute | Value |
---|---|
Display Type | 14-Segment |
Number of Characters | 2 |
LED Colours | Green |
Number of Segments | 14 |
Dominant Wavelength | 570 nm |
Character Width | 6mm |
Character Height | 10.2mm |
Common Connection | Cathode |
Mounting Type | Surface Mount |
External Height | 3.8mm |
External Width | 18.8mm |
External Dimensions | 18.8 x 19 x 3.8mm |
External Depth | 19mm |
Luminous Intensity | 11 mcd |
Colour of Face | Grey |
Forward Voltage | 2.1 V |
Power Dissipation | 75mW |
Decimal Orientation | Right Side |
Series | KCPDC04 |
Maximum Operating Temperature | +85°C |
Forward Current | 30mA |
Minimum Operating Temperature | -40°C |
Operating Temperature Range | -40 → +85°C |
