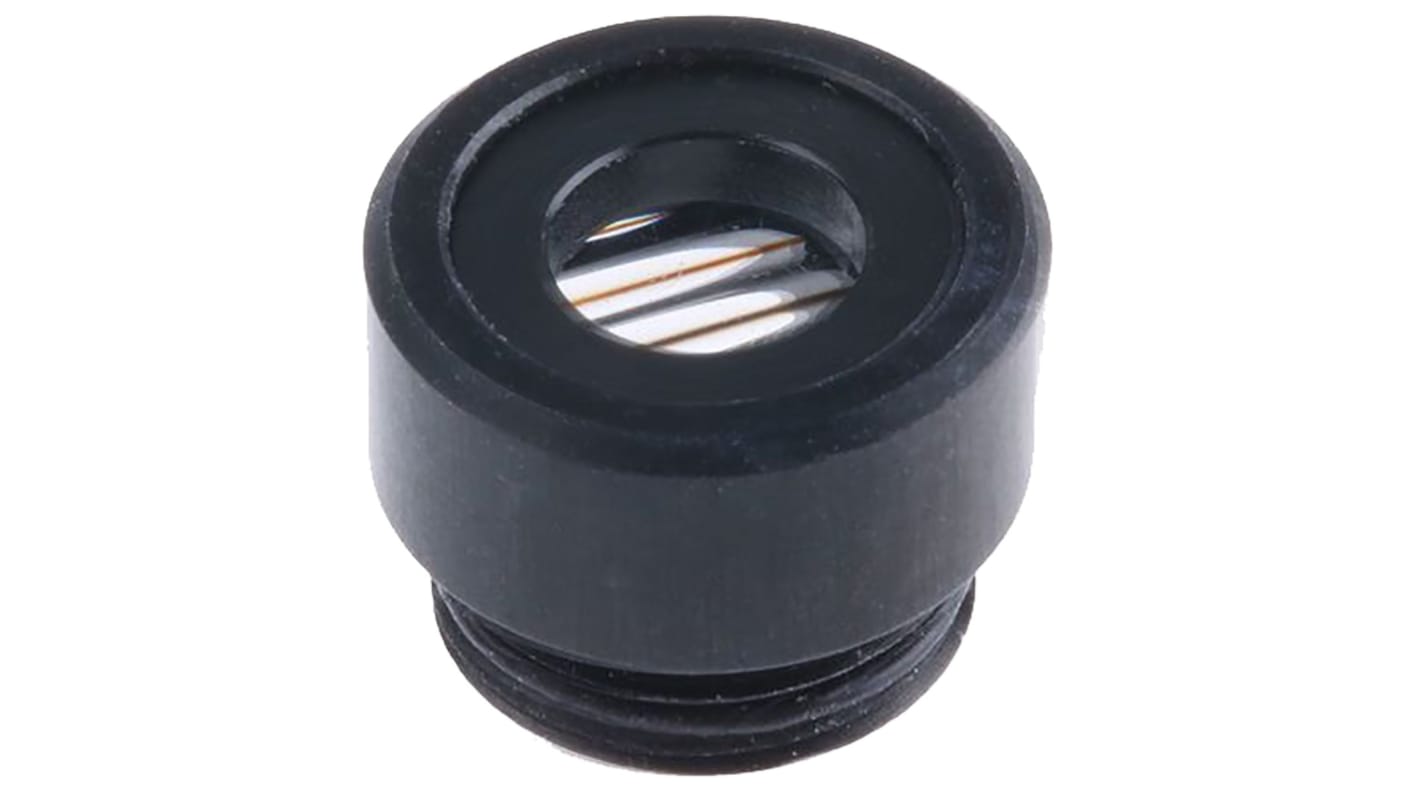

Global Laser 18° fan angle Line shape Moulded Multi Rod Laser Lens, Exit aperture 5mm
- RS Stock No.:
- 127-1548
- Mfr. Part No.:
- 1125-375-000
- Brand:
- Global Laser
5 In Global stock for delivery within 10 working day(s)
10 In Global stock for delivery within 10 working day(s)
Price (ex. GST) Each
$54.07
(exc. GST)
$59.48
(inc. GST)
Units | Per unit |
---|---|
1 - 49 | $54.07 |
50 - 249 | $52.64 |
250 + | $47.38 |
- RS Stock No.:
- 127-1548
- Mfr. Part No.:
- 1125-375-000
- Brand:
- Global Laser
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- GB
Product Details
Cross and Line Optics for LaserLyte-Flex
Interchangeable lens elements which can be used to convert the dot projected by a LaserLyte-Flex Laser into a line, cross or 4x4 grid line. The wider angle optics utilise a moulded multi-rod lens; the 9° cross optic has a DOE (diffractive optical element) lens. The optics are for use with 697-3557
The following optics are available:
127-1548 Line Optic, 18°
127-1549 Line Optic, 30°
697-3569 Line Optic, 60°
697-3572 Line Optic, 90°
697-3579 Cross Optic, 9°
697-3581 Cross Optic, 60°
127-1550 Cross Optic, 100°
127-1547 4x4 Grid optic
The following optics are available:
127-1548 Line Optic, 18°
127-1549 Line Optic, 30°
697-3569 Line Optic, 60°
697-3572 Line Optic, 90°
697-3579 Cross Optic, 9°
697-3581 Cross Optic, 60°
127-1550 Cross Optic, 100°
127-1547 4x4 Grid optic
Specifications
Attribute | Value |
---|---|
Beam Emission Shape | Line |
Lens Type | Moulded Multi Rod |
Fan Angle | 18° |
Exit Aperture Size | 5mm |
Series | M9 |
Transmission Loss | 0.25 |
