- RS Stock No.:
- 787-4754
- Mfr. Part No.:
- 14-141.025K2
- Brand:
- EAO
On back order for despatch 11/06/2024, delivery within 10 working days from despatch date.
Added
Price (ex. GST) Each
$192.28
(exc. GST)
$211.51
(inc. GST)
Units | Per unit |
1 - 9 | $192.28 |
10 - 24 | $185.53 |
25 - 49 | $176.89 |
50 + | $173.06 |
Alternative
This product is not currently available. Here is our alternative recommendation.
- RS Stock No.:
- 787-4754
- Mfr. Part No.:
- 14-141.025K2
- Brand:
- EAO
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- CH
Product Details

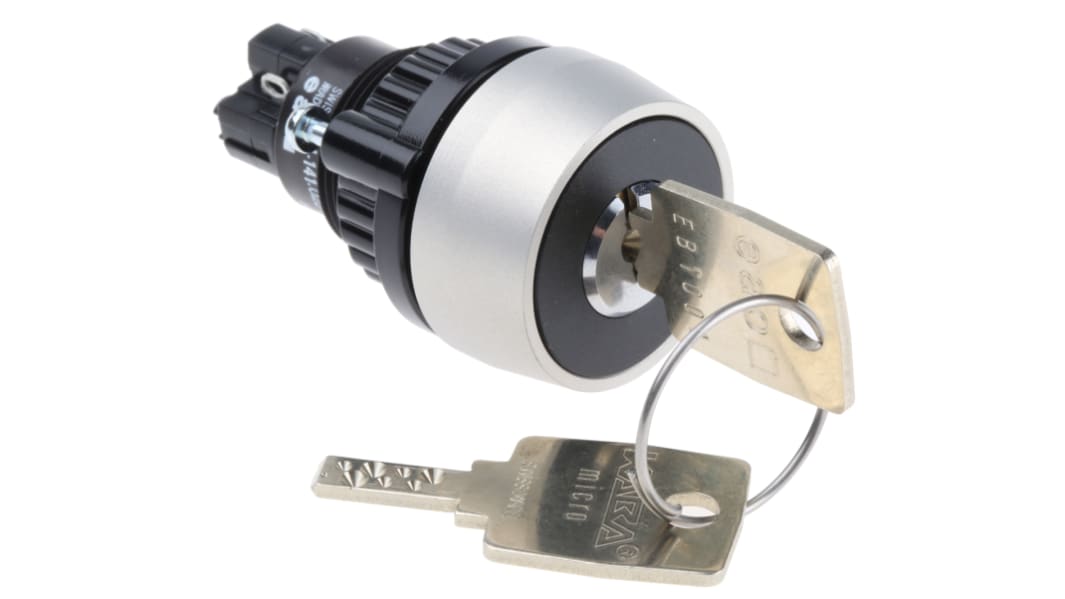

22mm Machine Interface Keylock Switch
Series 14 Human Machine Interface keylock switches from EAO are supplied with two keys and an aluminium bezel for raised mounting.
Mounting cut-out Ø 22.5 mm
Natural anodized front ring colour
Front protection IP65
Switching current 5 A @ 250 V ac
Natural anodized front ring colour
Front protection IP65
Switching current 5 A @ 250 V ac
Specifications
Attribute | Value |
---|---|
Number of Positions | 2 |
Switch Operation | Off-(On), Snap Action |
Contact Configuration | 1NC + 1NO |
Key Trapping | Yes |
Contact Current Rating | 5 A @ 250 V ac |
IP Rating | IP65 |
Key Type | Flat |
Terminal Type | PCB Pin |
Case Material | Plastic |
Bezel Shape | Round |
Application | High Security |
Depth Behind Panel | 35.5 → 58mm |
Key Index Angle | 42° |
Contact Material | Gold |
Minimum Operating Temperature | -25°C |
Maximum Operating Temperature | +55°C |
Mechanical Life | 1000000Cycles |
