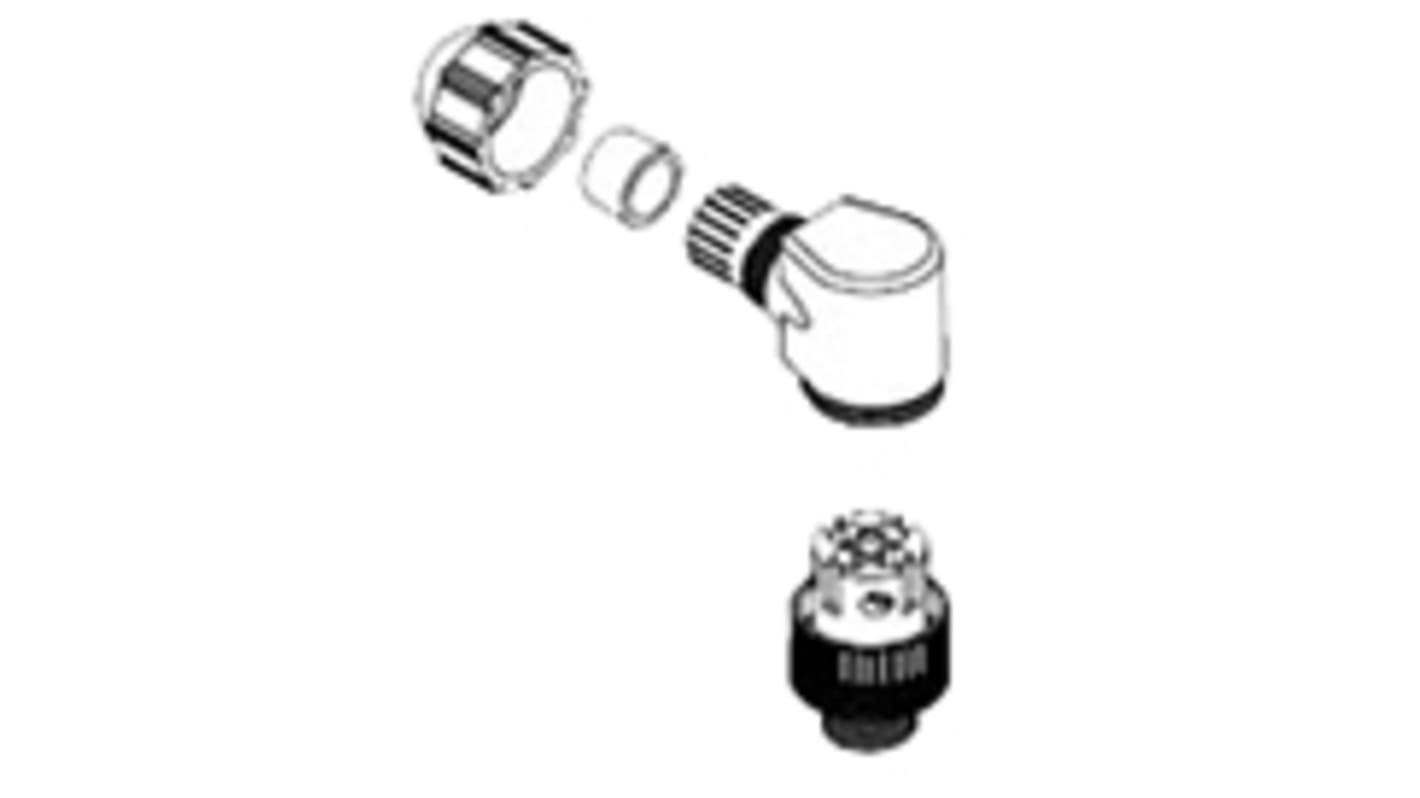

Brad from Molex Circular Connector, 5 Contacts, Cable, M12 Connector, Plug, Male, IP67, Micro-Change Series

RS Stock No.:: 913-2386
Mfr. Part No.:: 1200710049
Brand:: Brad from Molex

Brad from Molex Circular Connector, 5 Contacts, Cable, M12 Connector, Plug, Male, IP67, Micro-Change Series

Bulk discount available

Subtotal (1 unit)*

$100.75

(exc. GST)

$110.82

(inc. GST)

FREE delivery for orders over $60.00 ex GST

In Stock

19 unit(s) ready to ship from another location

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 - 4	$100.75
5 - 24	$99.94
25 - 49	$98.03
50 +	$94.64

*price indicative

RS Stock No.:: 913-2386
Mfr. Part No.:: 1200710049
Brand:: Brad from Molex

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Brad from Molex
	Product Type	Circular Connector
	Number of Contacts	5
	Mount Type	Cable
	Current	4A
	Connector Size	M12
	Plug/Socket	Plug
	Contact Gender	Male
	IP Rating	IP67
	Orientation	Angled
	Series	Micro-Change
	Voltage	36 V
	Minimum Operating Temperature	-25°C
	Mating Type	External Thread
	Maximum Operating Temperature	90°C
	Housing Material	Polyamide
	Standards/Approvals	No
	Pole Format	5
	Contact Plating	Silver
	Contact Material	Brass
	Distrelec Product Id	302-89-559

	Select all
	Brand Brad from Molex
	Product Type Circular Connector
	Number of Contacts 5
	Mount Type Cable
	Current 4A
	Connector Size M12
	Plug/Socket Plug
	Contact Gender Male
	IP Rating IP67
	Orientation Angled
	Series Micro-Change
	Voltage 36 V
	Minimum Operating Temperature -25°C
	Mating Type External Thread
	Maximum Operating Temperature 90°C
	Housing Material Polyamide
	Standards/Approvals No
	Pole Format 5
	Contact Plating Silver
	Contact Material Brass
	Distrelec Product Id 302-89-559

Molex Micro-Change Series Circular Connector, 5 Contacts, IP67 - 1200710049

This circular connector offers a robust solution for various applications. Featuring five contacts and designed for cable mounting, it enables easy integration with M12 interfaces. Its dimensions accommodate cable diameters ranging from 3.30mm to 6.60mm, making it suitable for diverse requirements.

Features & Benefits

• IP67 rating ensures protection against dust and water

• Male plug design facilitates secure connections with ease

• Silver-plated contacts improve conductivity and reliability

• External thread coupling type simplifies assembly and disassembly

Applications

• Used in automation systems for reliable connectivity

• Ideal for electrical and mechanical equipment connections

• Suitable for industrial machinery needing waterproof connectors

• Can be used in robotics and factory automation

• Utilised in railways and transport for enhanced durability

How does the IP67 rating benefit users in challenging environments?

The IP67 rating guarantees complete protection against dust ingress and temporary immersion in water, ensuring reliable performance in demanding conditions such as factories or outdoor installations.

What are the implications of the high-temperature rating for operational safety?

The high-temperature rating of +90°C allows the connector to withstand extreme operating conditions without compromising its integrity, making it suitable for applications exposed to heat.

Does the connector require special tools for installation?

No, the external thread coupling allows for straightforward installation without the need for specialised tools, facilitating efficient assembly.

What materials are used in the construction of this connector?

The connector is made from durable PA for the housing, with nickel-plated brass for the coupling nut, and features silver-plated brass contacts to enhance performance and longevity.
