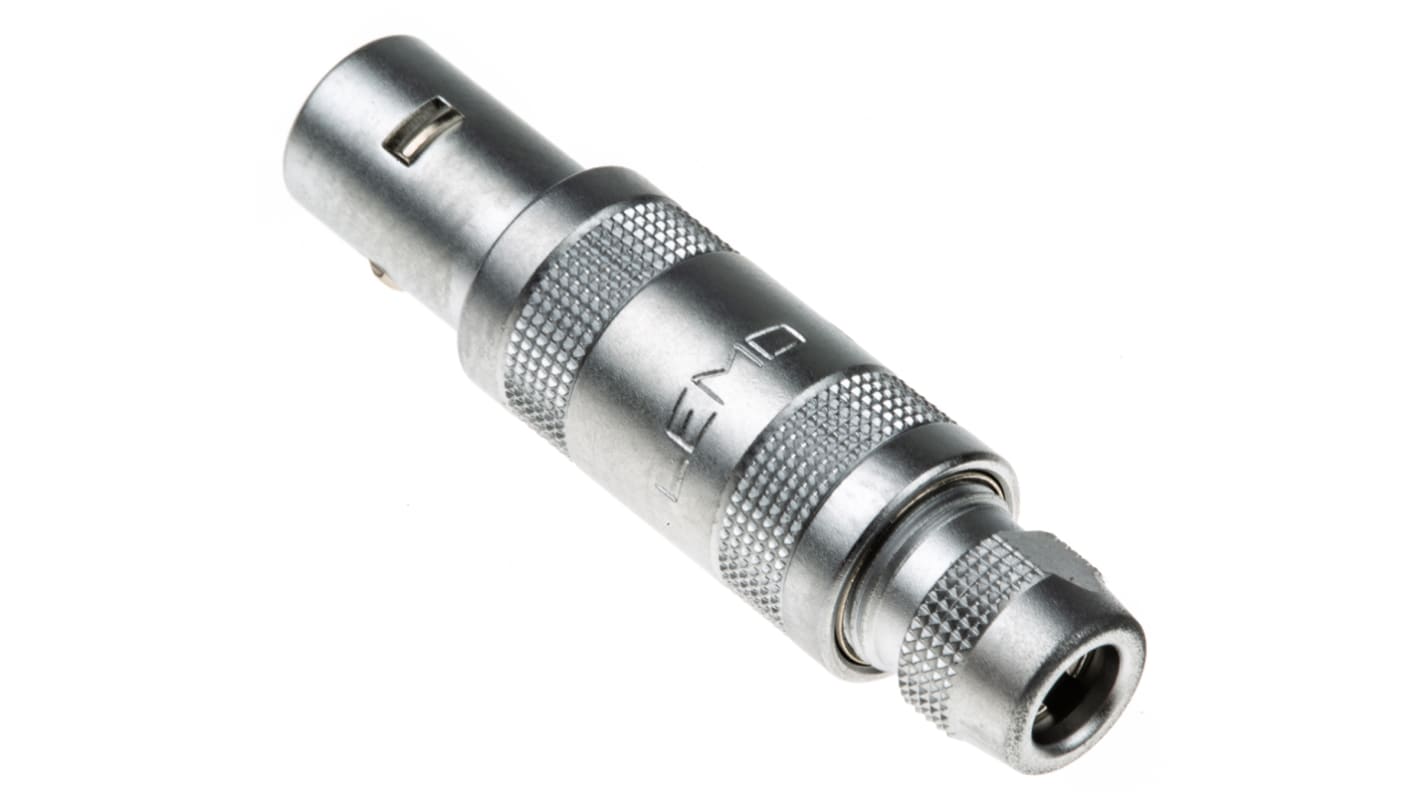

Lemo Circular Connector, 1 Contacts, Cable Mount, Plug, Male, IP50, 0S Series
- RS Stock No.:
- 168-3870
- Mfr. Part No.:
- FFA.0S.250.CTAC32
- Brand:
- Lemo
23 In Global stock for delivery within 10 working day(s)
Price (ex. GST) Each
$37.47
(exc. GST)
$41.22
(inc. GST)
Units | Per unit |
---|---|
1 - 4 | $37.47 |
5 - 24 | $37.22 |
25 - 49 | $36.80 |
50 + | $35.67 |
- RS Stock No.:
- 168-3870
- Mfr. Part No.:
- FFA.0S.250.CTAC32
- Brand:
- Lemo
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- CH
Product Details
Lemo Coaxial Connector
The Lemo 0S series single contacts male coaxial connector has a plug in-line connection. This cable mount connector has a voltage rating of 3000VAC and a current rating is up to 6A per contact. This connector features a highly precise push-pull latching system with high-durability strain relief collets and in-built keying to prevent mismating. It has a rugged and robust design to resist every environmental and mechanical requirement for indoor and outdoor applications. It is made from chrome-plated brass with collet nut and nickel-plated brass latch sleeve.
Features and Benefits
Solder termination
Straight body orientation
360° EMC shielding
Cable acceptance ranges between 2.7mm and 3.1mm
Easy cable assembly
Endurance is 5000 mating cycles
High vibration and shock resistance
Impedance is 50ohm
Operation temperature ranges between -55°C and 250°C
Waterproof and UV resistance capabilities
Straight body orientation
360° EMC shielding
Cable acceptance ranges between 2.7mm and 3.1mm
Easy cable assembly
Endurance is 5000 mating cycles
High vibration and shock resistance
Impedance is 50ohm
Operation temperature ranges between -55°C and 250°C
Waterproof and UV resistance capabilities
Applications
Audio/video application
Medical devices
Research
Test and measurement instrumentation
Medical devices
Research
Test and measurement instrumentation
Certifications
IP50 rated
UL approved
UL approved
Specifications
Attribute | Value |
---|---|
Number of Contacts | 1 |
Mounting Type | Cable Mount |
Plug/Socket | Plug |
Contact Gender | Male |
Termination Method | Solder |
IP Rating | IP50 |
Current Rating | 6.0A |
Body Orientation | Straight |
Series | 0S |
Shell Size | 0 |
Housing Material | Brass |
Contact Plating | Nickel |
Contact Material | Brass |
Minimum Operating Temperature | -55°C |
Maximum Operating Temperature | +250°C |
