RS PRO Hydraulic Manifold, 6 stations

RS Stock No.:: 235-8209
Brand:: RS PRO

1 / 4

Bulk discount available

Subtotal (1 unit)**

$143.84

(exc. GST)

$158.22

(inc. GST)

On back order for despatch 04/08/2025, delivery within 10 working days from despatch date.*

* Delivery dates may change based on your chosen quantity and delivery address.

FREE delivery for orders over $60.00 ex GST

Units	Per unit
1 - 4	$143.84
5 +	$118.37

**price indicative

RS Stock No.:: 235-8209
Brand:: RS PRO

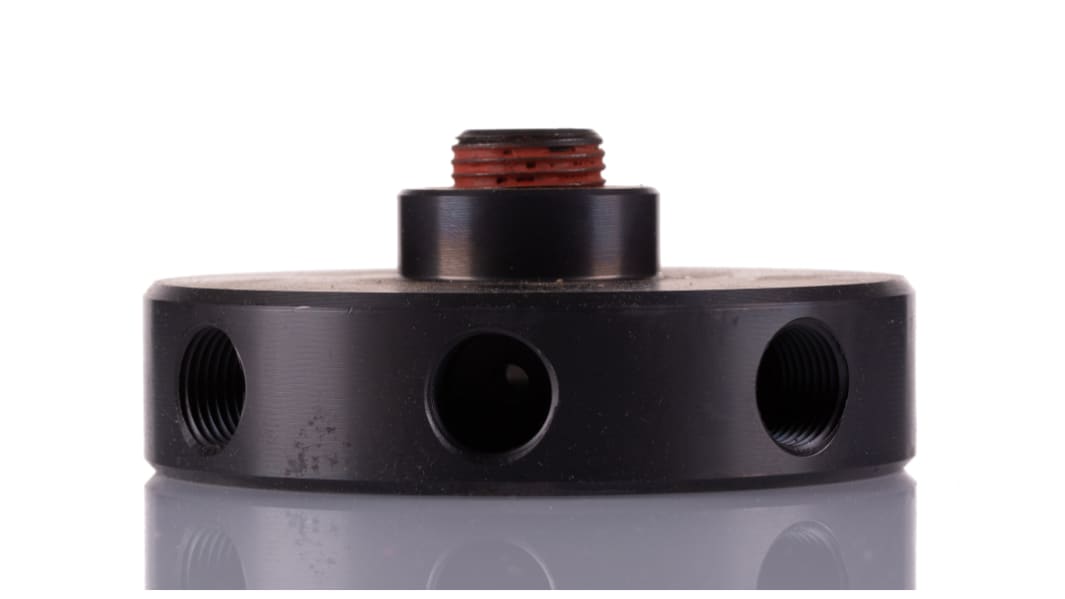

RS PRO Hydraulic Manifold 700bar 3/8 NPT Steel 6 Ways Hydraulic Fluid Distributor.

From the extensive RS PRO Hydraulic fittings range we offer you the RS PRO Hydraulic manifold fluid distributor with a 3/8 NPT Female connector. This hydraulic fluid distributor manifold system has six outlets for 3/8 NPT hydraulic couplers plus also includes one single inch hydraulic NPT inlet. This system is an excellent offering from the RS PRO range providing multiple hydraulic line connections to a single location from your pressure source.

RS PRO offer you an impressive range of hydraulic fittings helping you to tailor your hydraulic systems providing adaptable, safe and leak free connections. Our hydraulic fittings range can provide fittings with pressure ranges measuring from 350bar to 2860bar helping you to connect your hydraulic component systems.

Features & Benefits

Hydraulic Fluid Distributor.

Made from Steel with a black nitrate finish.

Circular shape.

1 x Hydraulic inlet for inch NPT Female.

6 x Outlets for 3/8-inch NPT Hydraulic couplers Female.

700 bar Maximum operating pressure.

82 mm Diameter.

37 mm Depth/width.

No Sealing.

No Drain.

Applications

Distribution and flow control of Hydraulic fluid.

Directs hydraulic fluid to and from a pressure source.

Where multiple line coupling is necessary.

What is an RS PRO Hydraulic Manifold?

In simple terms a hydraulic manifold is a component within hydraulic systems that assists you in distributing the oil/hydraulic fluid throughout a system plus, regulates the flow between all components, pumps, and actuators. It is a distribution and control component.

Why RS PRO?

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards; they’re only given the RS PRO seal of approval if we’re confident of their exceptional quality, which means you can be confident too.

Standards

eCl@ss, UNSPSC

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	RS PRO
	Number of Stations	6
	Manufacturer Series	AZ
	Maximum Operating Pressure	700 bar

	Select all
	Brand RS PRO
	Number of Stations 6
	Manufacturer Series AZ
	Maximum Operating Pressure 700 bar
