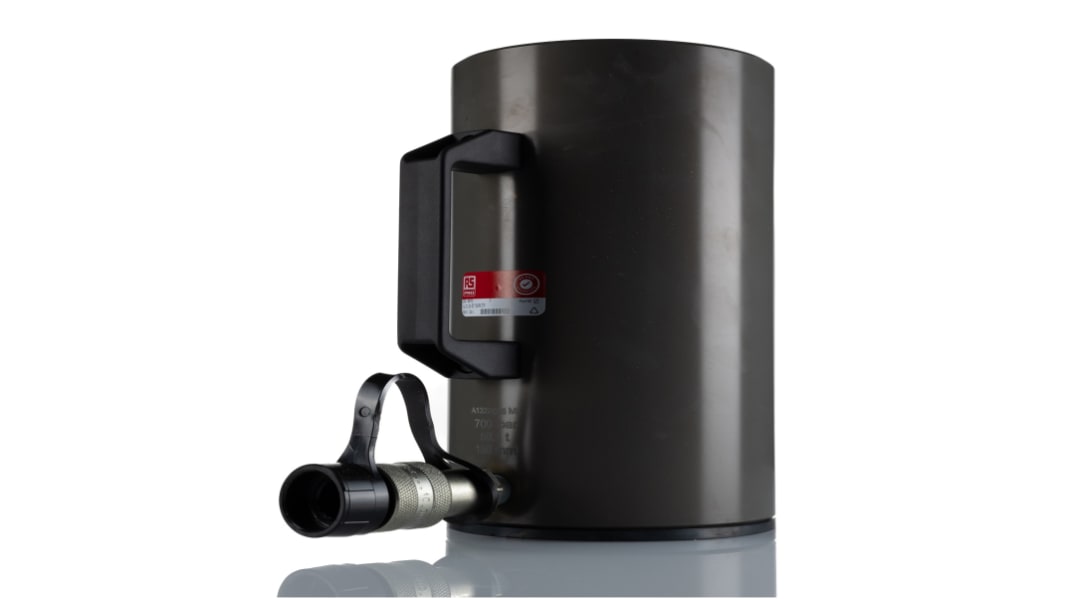

RS PRO Single, Portable General Purpose Hydraulic Cylinder, 50t, 150mm stroke

From the extensive RS PRO Hydraulic Tools range, we offer you the RS PRO Single action general purpose hydraulic cylinder, also known as centre hole cylinders. This single action plunger has a 50-ton capacity with a 150 mm stroke, made from aluminium so is lightweight weighing 40% less than a steel cylinder, plus includes handles for safe transport and mounts to a steel base plate. This single action hydraulic cylinder includes one female quick coupler and please note that if a coupler has to be installed on the cylinder you must use Teflon around the male 3/8 NPT thread.
RS PRO offer you an impressive range of hydraulic Cylinders helping you to tailor your hydraulic systems providing adaptable, safe, and versatile solutions for tensioning, testing, pulling, and lifting. Our hydraulic cylinders are available as single action spring return or double action controlled plunger return.

50 Ton capacity
150 mm Stroke
Made from hard anodized aluminium
Lightweight
1 x Female quick coupler
Standard plain saddle
Mounts to a steel base plate
Cylinder bore 95 mm
Plunger 80 mm
Saddle 61 mm
Bolt circle 115 mm
M6 base hole thread 19 mm

All general industrial applications.

Hydraulic cylinders are also known as a linear hydraulic motor. They are a mechanical actuator used to provide unidirectional force through unidirectional stroke. The power to the cylinder is provided from pressurised hydraulic fluid. Normally oil is used as the hydraulic fluid. Single acting cylinders are the simplest, hydraulic fluid pushed through into the cylinder through a port extending the rod then the rod returns to its previous position, spring action. A Double action cylinder has a port at each end of the piston and the hydraulic fluid then extends and retracts the piston, faster and more controlled.

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards; they’re only given the RS PRO seal of approval if we’re confident of their exceptional quality, which means you can be confident too.
