- RS Stock No.:
- 758-2449
- Mfr. Part No.:
- 712TN-5
- Brand:
- Teledyne
113 In Global stock for delivery within 10 working day(s)
Added
Price (ex. GST) Each
$324.07
(exc. GST)
$356.48
(inc. GST)
Units | Per unit |
1 - 4 | $324.07 |
5 - 9 | $317.60 |
10 - 24 | $311.25 |
25 - 49 | $305.01 |
50 + | $295.85 |
- RS Stock No.:
- 758-2449
- Mfr. Part No.:
- 712TN-5
- Brand:
- Teledyne
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- US
Product Details

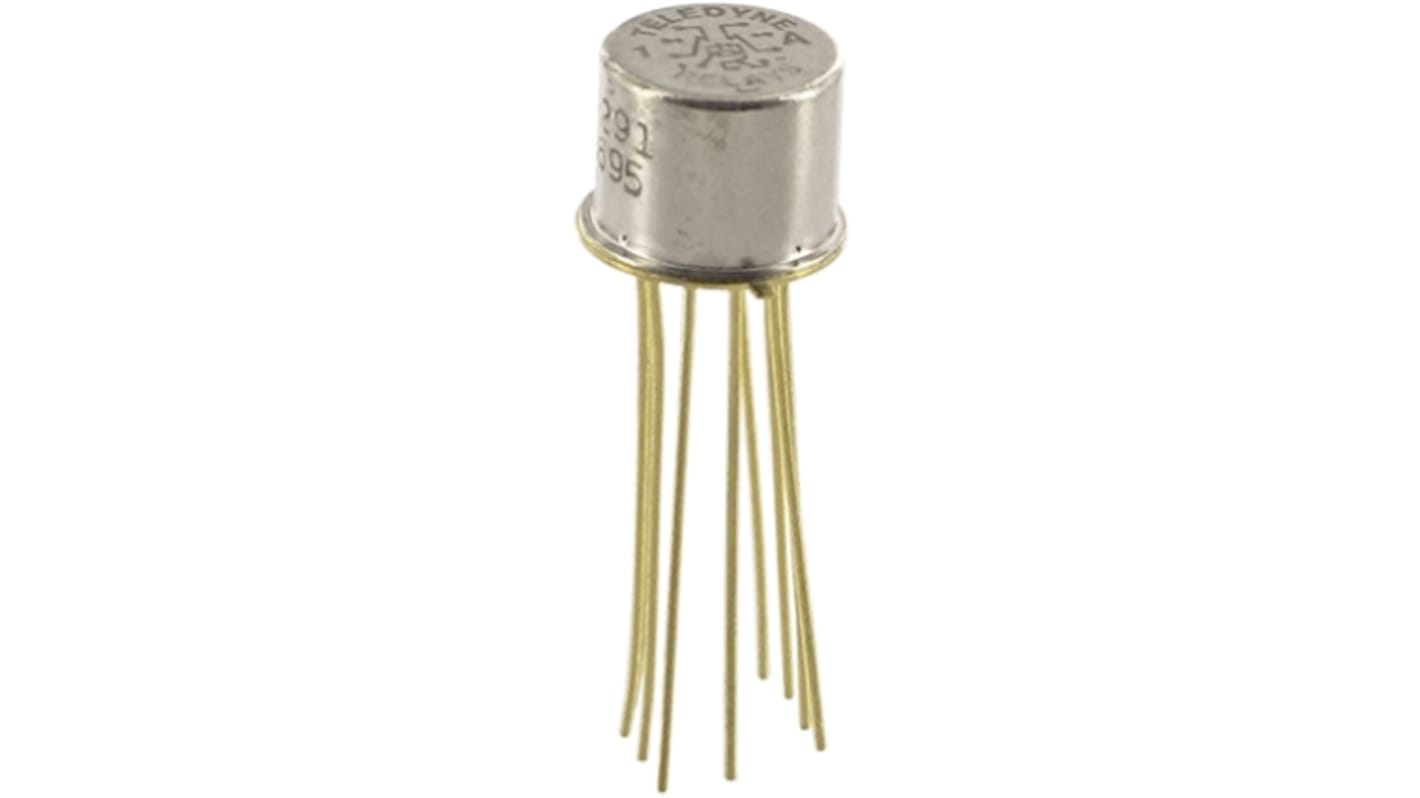

Teledyne RF Relay
The Teledyne 712 series PCB mount DPDT ultra-miniature RF relay is actuated with 5VDC coil voltage at a frequency of 1GHz. It is a relay with internal transistor driver and coil transient suppression diode. It has a low profile height of 6.99mm, low coil power dissipation and is designed for use when close PCB spacing is required. This relay has unique construction features and manufacturing techniques that provide excellent resistance to environmental extremes and overall high reliability. It is hermetically sealed and gives excellent switching performance from Dry Circuit to 1A. A typical RF application for this relay is in handheld radio transceivers which combine the features of good RF performance, small size, low coil power dissipation and high reliability, making it a preferred method for transmitting/receive switching.
Features and Benefits
Coil power is 450mW
Coil resistance is 50ohm
Contact termination is solder pin
Dimensions are 9.4mm x 6.99mm
Gold-plated contacts
High reliability and excellent resistance to environmental extremes
High resistance to shock and vibration
Low insertion loss i.e. isolation and intercontact capacitance of 0.4pF
Operating temperature ranging between -55°C and 85°C
Uniframe design provides high magnetic efficiency and mechanical rigidity
Coil resistance is 50ohm
Contact termination is solder pin
Dimensions are 9.4mm x 6.99mm
Gold-plated contacts
High reliability and excellent resistance to environmental extremes
High resistance to shock and vibration
Low insertion loss i.e. isolation and intercontact capacitance of 0.4pF
Operating temperature ranging between -55°C and 85°C
Uniframe design provides high magnetic efficiency and mechanical rigidity
Certifications
ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007
BS EN 61340-5-1:2007
Specifications
Attribute | Value |
---|---|
Coil Resistance | 50 Ω |
Relay Type | HF Relay |
Contact Resistance | 150 mΩ |
Contact Configuration | DPDT |
Coil Voltage | 5V dc |
Mounting Type | PCB Mount |
Contact Voltage | 28V dc |
Coil Power | 450mW |
Contact Material | Gold Plated |
Contact Current Rating | 1A |
Length | 6.99mm |
Terminal Type | Through Hole |
Life | 10000000 cycles |
Switching Voltage | 28V dc |
Operating Temperature Range | -55 → +85°C |
Minimum Operating Temperature | -55°C |
Height | 6.99mm |
Relay Switching Classification | General Purpose Relay |
Dimensions | 9.4(Dia.) x 6.99mm |
Maximum Operating Temperature | +85°C |
Depth | 9.4mm |
Diameter | 9.4mm |
Operating Time Including Bounce | 4ms |
