- RS Stock No.:
- 842-7668
- Mfr. Part No.:
- 09150083113
- Brand:
- HARTING
On back order for despatch 03/06/2024, delivery within 10 working days from despatch date.
Added
Price (ex. GST) Each
$59.48
(exc. GST)
$65.43
(inc. GST)
Units | Per unit |
1 - 99 | $59.48 |
100 - 499 | $59.00 |
500 + | $57.74 |
- RS Stock No.:
- 842-7668
- Mfr. Part No.:
- 09150083113
- Brand:
- HARTING
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- DE
Product Details

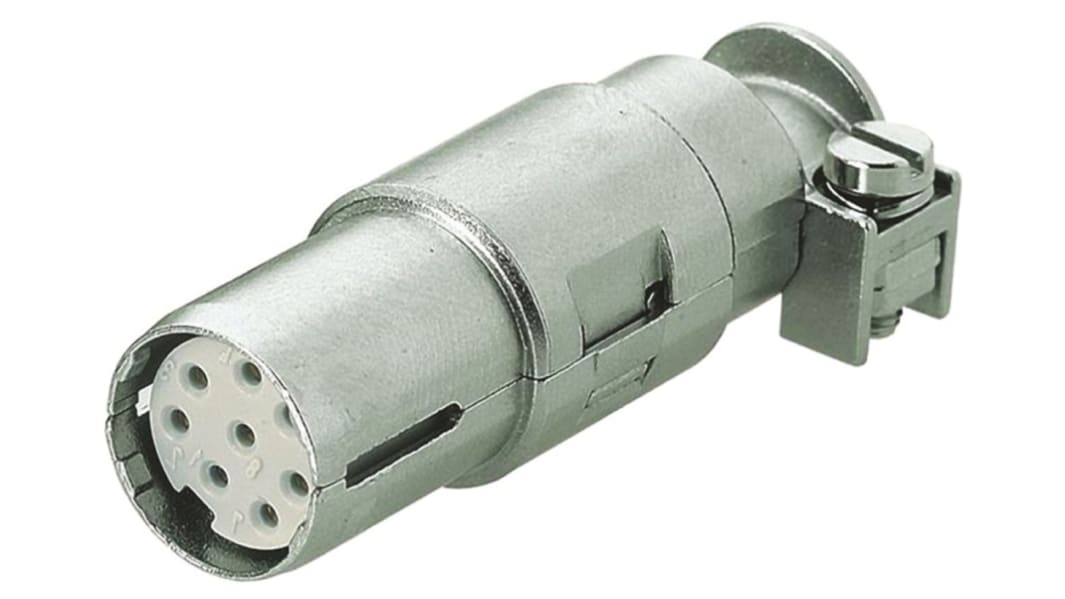

Han-Brid Quintax Inserts and Contacts
A comprehensive offering of contacts and inserts for use with the Han-Brid series of modules, inserts etc, can be used with Han 3A housing and hoods.
Possibility to terminate shielded four/eight wires
conductors (2 pair STP)
Terminate Coax cable with large diameter
Suitable for all 4-wire bus systems
Ideal for shielded cable conductor diameter 3 – 9.5 mm
conductors (2 pair STP)
Terminate Coax cable with large diameter
Suitable for all 4-wire bus systems
Ideal for shielded cable conductor diameter 3 – 9.5 mm
Harting Han-Brid
The Han-Brid series allows the connection of a data interface and a power supply in a single space saving connector. This means it is now possible to provide data transmission and power to devices in a single bus .
Specifications
Attribute | Value |
---|---|
Current Rating | 5A |
Gender | Female |
Series | Han-Modular |
For Use With | 2 Contact Module |
Voltage Rating | 50 V |
Number of Contacts | 8 |
Maximum Wire Size mm² | 0.52mm² |
Minimum Wire Size mm² | 0.09mm² |
