HellermannTyton Halogen Free Heat Shrink Tubing, Black 6.4 mm Sleeve Dia. x 1m Length 2:1 Ratio, TCN20 Series
- RS Stock No.:
- 133-1760
- Mfr. Part No.:
- 300-73564 TCN20-6.4/3.2-PO-X-BK
- Brand:
- HellermannTyton
Subtotal (1 box of 24 units)*
$110.78
(exc. GST)
$121.86
(inc. GST)
FREE delivery for orders over $60.00 ex GST
In Stock
- Plus 8 unit(s) shipping from 10 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Box(es) | Per Box | Per unit* |
|---|---|---|
| 1 + | $110.78 | $4.616 |
*price indicative
- RS Stock No.:
- 133-1760
- Mfr. Part No.:
- 300-73564 TCN20-6.4/3.2-PO-X-BK
- Brand:
- HellermannTyton
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | HellermannTyton | |
| Sleeve Diameter | 6.4mm | |
| Product Type | Heat Shrink Tubing | |
| Colour | Black | |
| Shrunk Diameter | 3mm | |
| Shrink Ratio | 2:1 | |
| Sleeve Length | 1m | |
| Material | Polyolefin | |
| Flame Retardant | Yes | |
| Standards/Approvals | ANSI, CSA, UL | |
| Halogen Free | Yes | |
| Series | TCN20 | |
| Select all | ||
|---|---|---|
Brand HellermannTyton | ||
Sleeve Diameter 6.4mm | ||
Product Type Heat Shrink Tubing | ||
Colour Black | ||
Shrunk Diameter 3mm | ||
Shrink Ratio 2:1 | ||
Sleeve Length 1m | ||
Material Polyolefin | ||
Flame Retardant Yes | ||
Standards/Approvals ANSI, CSA, UL | ||
Halogen Free Yes | ||
Series TCN20 | ||

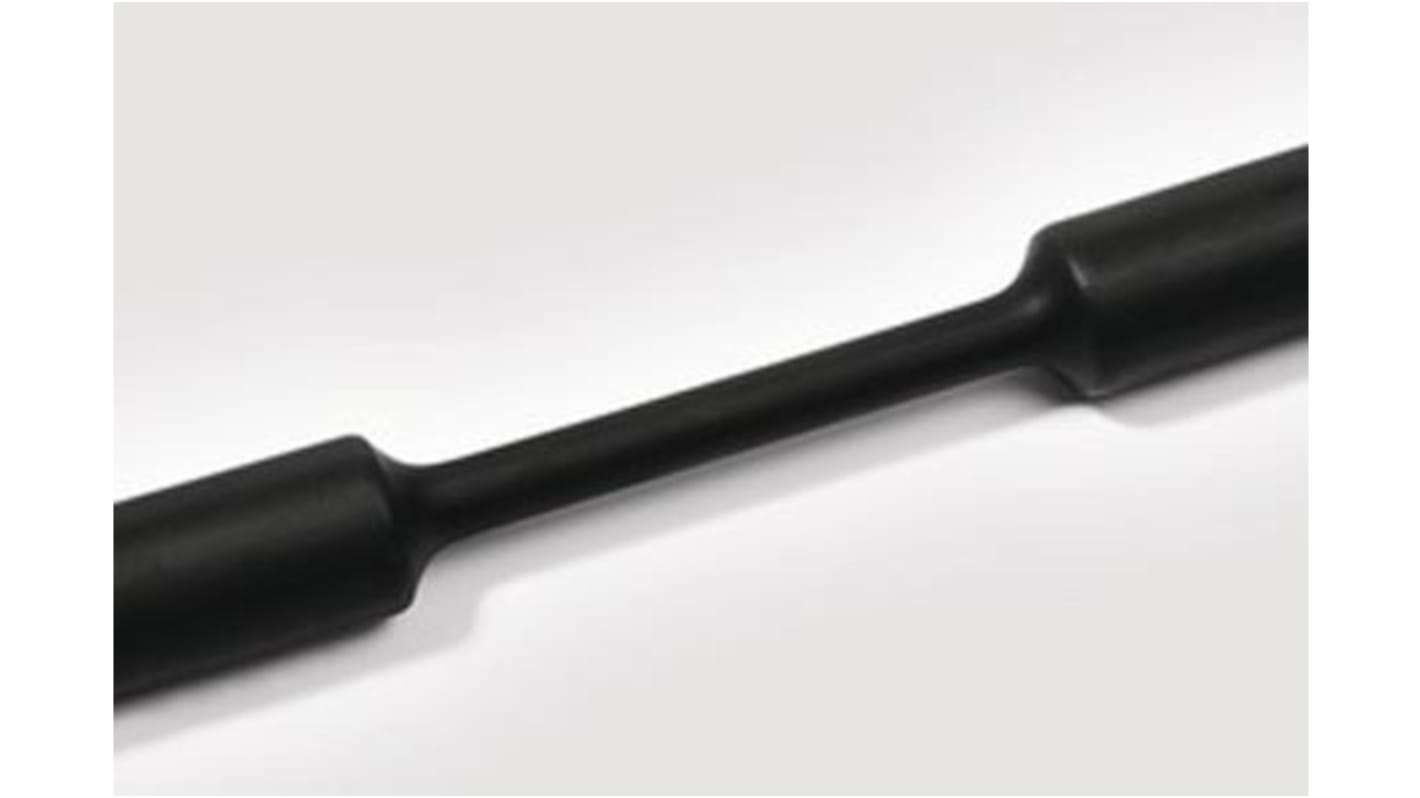

HellermannTyton TCN20 Heat Shrink Tubing
The TCN20 series of heat shrink tubing is flexible, flame retardant and manufactured from high-quality polyolefin. The tubing has a shrink ratio of 2:1 with an operating temperature range of -55 to +125°C. The TCN20 range of heat shrink is ideal for use in many applications such as cable bundling, electrical insulation, strain relief, identification and mechanical protection.
Features and Benefits
Shrink ratio of 2:1;Minimum shrink temperature 100°C;Thin wall;Self-extinguishing to UL 224 VW-1
