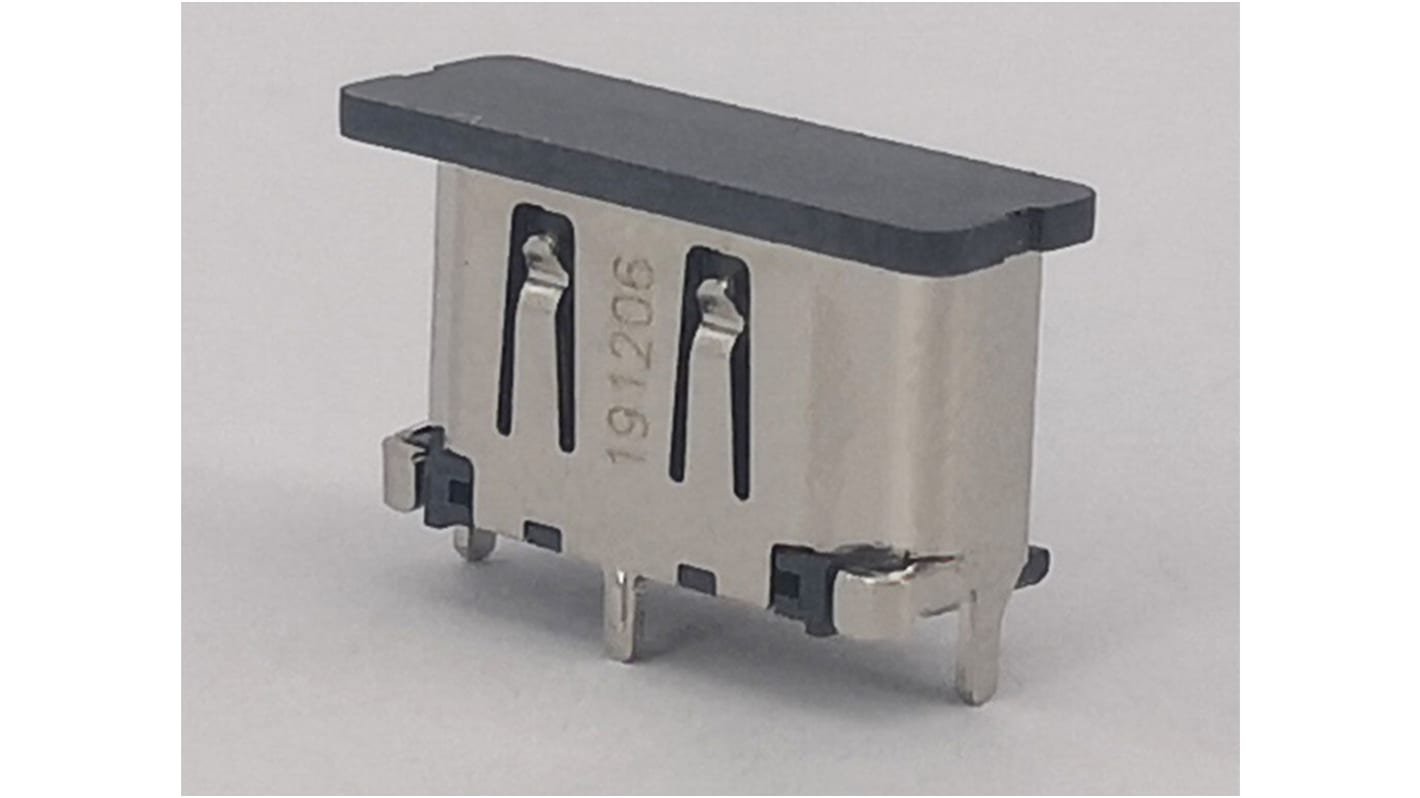

Molex Type A 19 Way Female Vertical HDMI Connector 40 V
- RS Stock No.:
- 201-0434
- Mfr. Part No.:
- 476591100
- Brand:
- Molex
115 In Global stock for delivery within 10 working day(s)
Added
Price (ex. GST) Each (In a Pack of 5)
$4.20
(exc. GST)
$4.62
(inc. GST)
| Units | Per unit | Per Pack* |
| 5 - 45 | $4.20 | $21.00 |
| 50 - 95 | $4.094 | $20.47 |
| 100 + | $4.034 | $20.17 |
| *price indicative | ||
- RS Stock No.:
- 201-0434
- Mfr. Part No.:
- 476591100
- Brand:
- Molex
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
The Molex 47659 series I/O connectors have 0.50mm pitch which is HDMI receptable with 8.50mm vertical mounted height. It has Gold (Au) plating with 19 circuits loaded. The product is lead free and comes with without flange. The Molex I/O connectors can be
Durability (mating cycles max): 10000
Surface Mount
Operating Temperature: -20° to +85°C
Surface Mount
Operating Temperature: -20° to +85°C
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Specifications
Attribute | Value |
|---|---|
| Gender | Female |
| Number of Contacts | 19 |
| Size | Type A |
| Contact Material | Brass |
| Contact Plating | Gold |
| Body Orientation | Vertical |
| Voltage Rating | 40 V |
