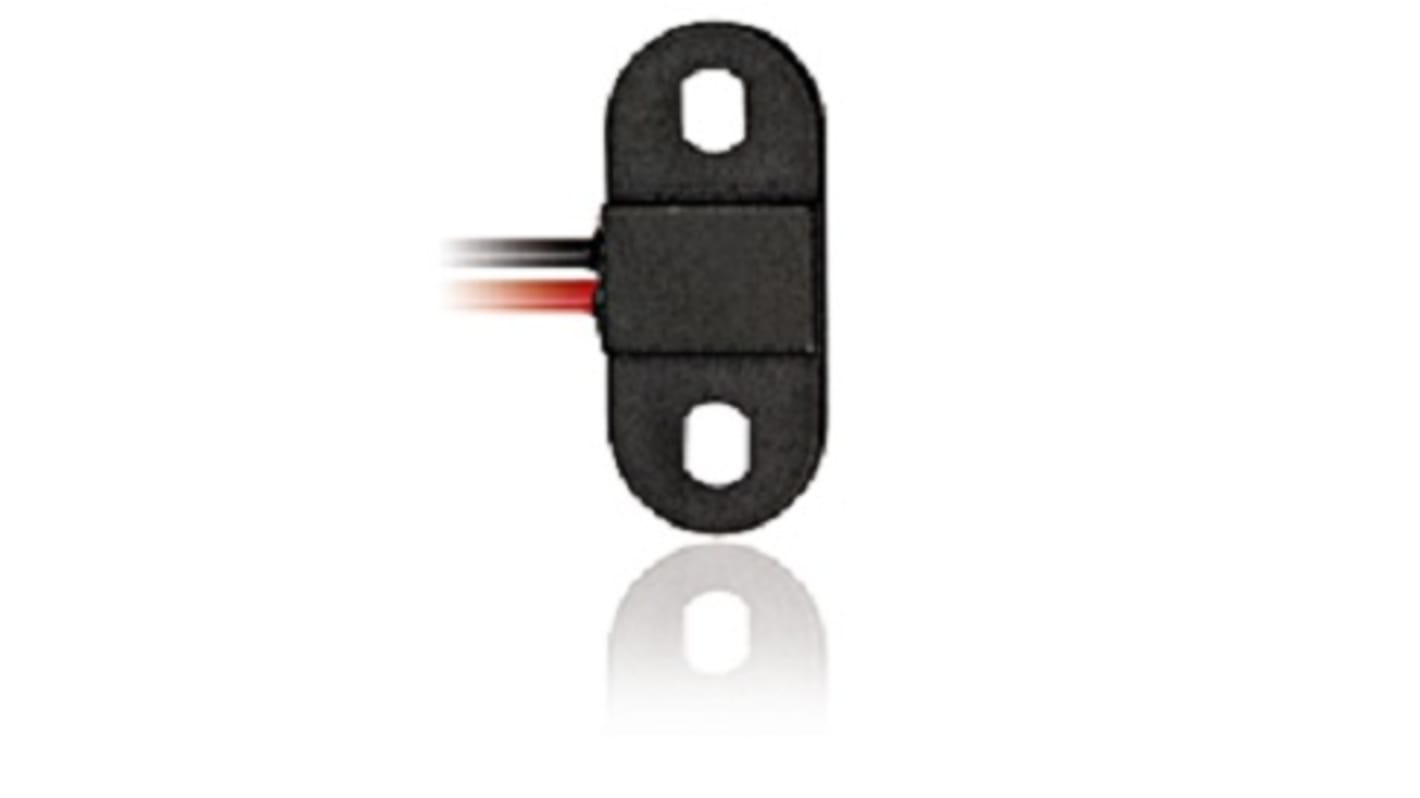

RS PRO Hall Effect Sensor Flange, Flat Body, 40 V dc 24V dc

RS Stock No.:: 277-3625
Brand:: RS PRO

RS PRO Hall Effect Sensor Flange, Flat Body, 40 V dc 24V dc

Subtotal (1 pack of 50 units)*

$765.55

(exc. GST)

$842.10

(inc. GST)

FREE delivery for orders over $60.00 ex GST

Last RS stock

Final 200 unit(s), ready to ship from another location

Units	Per unit	Per Pack*
50 +	$15.311	$765.55

*price indicative

RS Stock No.:: 277-3625
Brand:: RS PRO

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	RS PRO
	Product Type	Hall Effect Sensor
	Body Style	Flat
	Terminal Type	2 Wire
	Mount Type	Flange
	Maximum DC Voltage	40V dc
	Maximum Supply Voltage	24V dc
	Minimum Operating Temperature	-20°C
	Depth	1.5mm
	Length	25.5mm
	Width	11mm
	Standards/Approvals	No
	Maximum Operating Temperature	85°C
	IP Rating	IP67
	Housing Material	Polyamide 6

	Select all
	Brand RS PRO
	Product Type Hall Effect Sensor
	Body Style Flat
	Terminal Type 2 Wire
	Mount Type Flange
	Maximum DC Voltage 40V dc
	Maximum Supply Voltage 24V dc
	Minimum Operating Temperature -20°C
	Depth 1.5mm
	Length 25.5mm
	Width 11mm
	Standards/Approvals No
	Maximum Operating Temperature 85°C
	IP Rating IP67
	Housing Material Polyamide 6

COO (Country of Origin):: CN

RS PRO 24V Unipolar Flat Hall Effect Sensor

A reliable and accurate 24V hall effect position sensor with a Unipolar design. The Unipolr hall effect sensor is ideal for a wide range of non-contact operations including position control, speed measurement, level sensing and flow detection applications.

The hardwearing and durable hall sensor is encapsulated within a hardwearing Nylon PA6 body protected to IP67 with excellent strength and corrosion resistance highly suited for use in the automotive industry.

An easy to mount threaded design connected with 2 AWG 24 wires rated to UL 1007/1569 suited for internal wiring applications.

Features and Benefits

Unipolar operation;2 wire termination;Compact flat design;25.5 x 11 x 1.5mm

Applications

No contact sensing;Position control;Speed measurement (RPM);Level sensing;Flow detection
