    RS PRO Gauss Meter, 30 → 300Hz

    RS Stock No.:
    106-5309
    Manufacturer:
    RS PRO
    RS PRO
    View all Gaussmeters
    2 In AU stock for next working day delivery
    8 In Global stock for delivery within 5 working day(s)
    Add to Basket
    units

    Added

    Price (ex. GST) Each

    $146.33

    (exc. GST)

    $160.96

    (inc. GST)

    unitsPer unit
    1 +$146.33
    RS Stock No.:
    106-5309
    Manufacturer:
    RS PRO
    COO (Country of Origin):
    TW

    Technical data sheets


    Legislation and Compliance

    COO (Country of Origin):
    TW

    Product Details

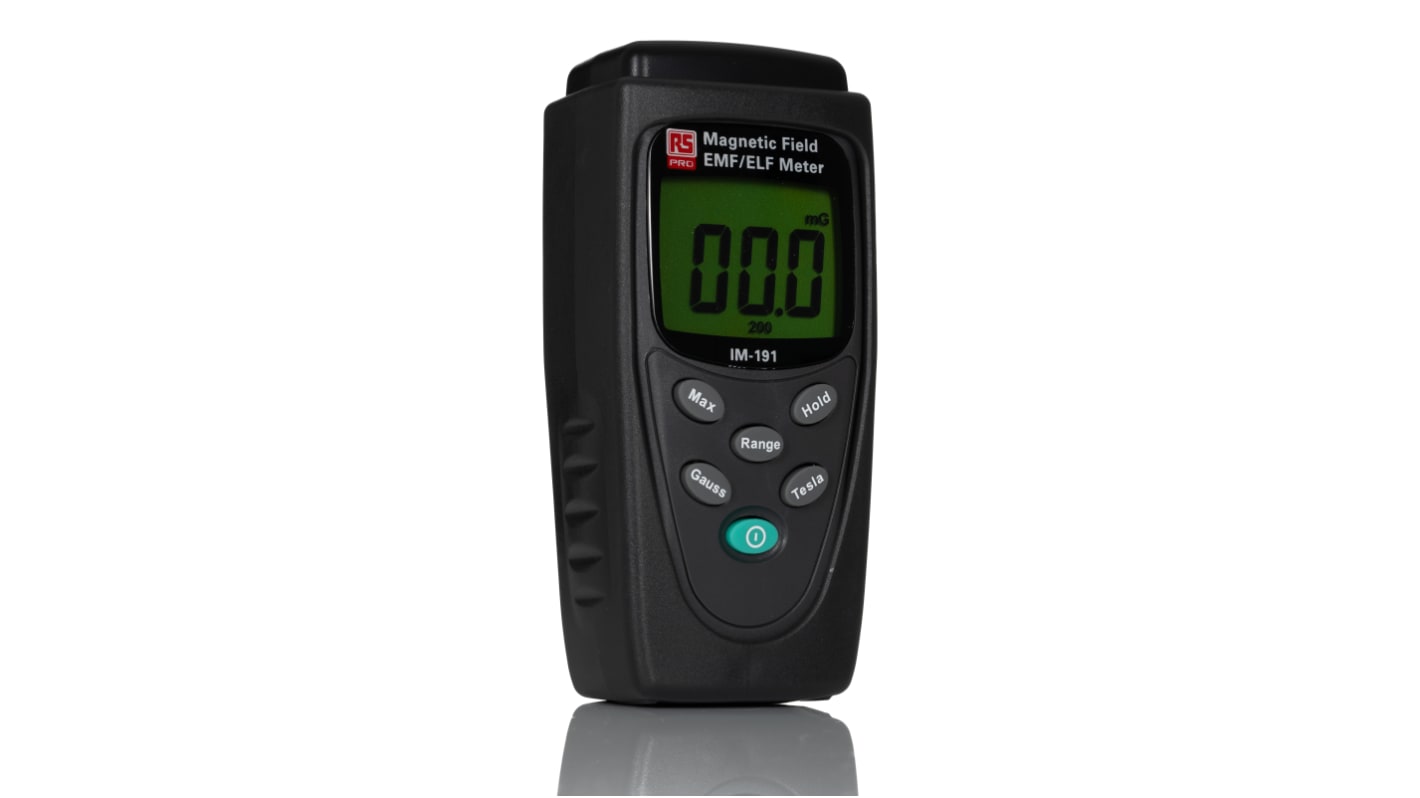

    RS Pro Guass Meter IM-191


    Our high quality brand RS Pro presents this handheld light weight Guassmeter, a great instrument for measuring magnetic fields of extremely low frequency (ELF) of 30 to 300 Hz. With a large user friendly LCD display of 3-1/2 digits it has a display range of 20, 200 and 2000. Display units are featured in micro-Tesla and mini-Guass, with an overload indication (LCD displays 'OL') and a low battery indication. With around 100 hours of battery life, measurement and testing is accurate and easy using the large soft press button panel.


    Features and Benefits:


    • Resolution 0.1/1 mG or 0.01/0.1 μT
    • Frequency response 30 Hz to 300 Hz
    • Sensor, single axis
    • Accuracy ± (2.5% + 6 digit) at 50/60 Hz
    • Sample rate 2.5 times per second
    • Data hold (HOLD) and Maximum (MAX) hold functions
    • Operating temperature & humidity 5℃ to 40℃, below 80% RH
    • Dimensions 130 x 56 x 38 mm
    • Weight approximately 170 g


    Application includes: Electric transmission equipment, Power lines, Air conditioners, Refrigerators, Computer monitors and Video/audio devices.


    How Does a Gauss Meter Work?


    Guassmeters are a Hall probe, a test current is sent by the meter through the probe. This Hall affect produces a voltage and the meter then records this. Often the highest voltage detected is used or frozen by the meter as voltage fluctuation is common given that magnetic fields are rarely static.


    Did you know?


    Carl Friederich Gauss born in 1777 developed one of the first devices that could measure direction and strength of a magnetic field. He was a pioneer in this type of study and a great mathematician. He created the system used to measure magnetism and is the reason the modern unit of flux density is named Guass and why we call these units Guass meters.


    Supplied with

    9 V battery, carrying case, user manual


    Specifications

    AttributeValue
    Magnetic Range20 → 200 μT, 200 → 2000 mG
    Maximum Magnetic Measurement200 μT, 2000mg
    Minimum Magnetic Measurement20 μT, 200 mg
    Best Accuracy±2.5 %
    Resolution0.01 μT, 0.1 mG
    Frequency Range30 → 300Hz
    Operating UnitsGauss, Tesla
    Maximum Operating Temperature+40°C
    Minimum Operating Temperature+5°C
    Battery Life100 h
    Battery Type9V
    Power SourceBattery
    Width56mm
    Model Number pIM-191
    Weight170g
    Height38mm
    Length130mm
    Dimensions130 x 56 x 38mm
