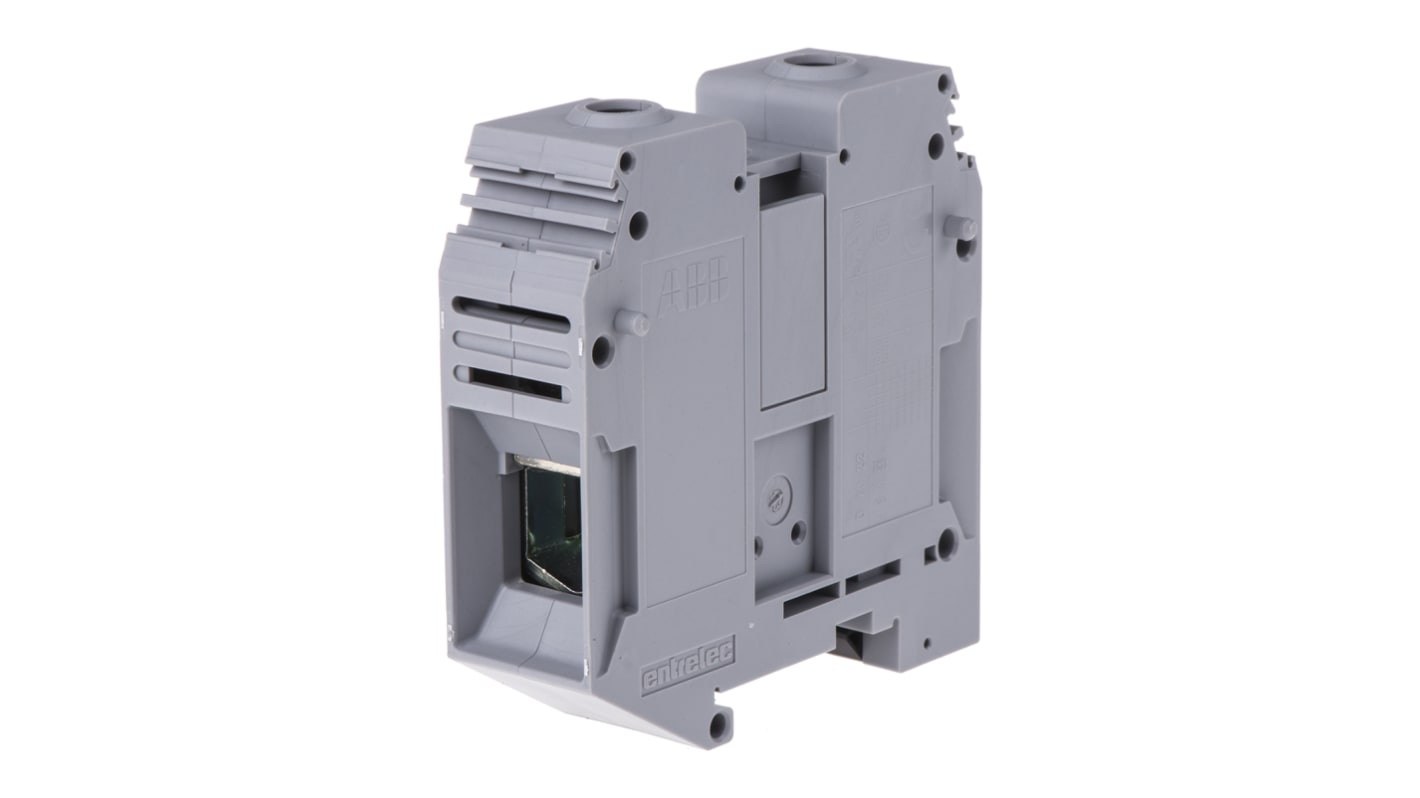

Name: Entrelec 1SNA400305R1000 SNA Series Grey, 70mm², Single-Level, Screw Termination
Brand: Entrelec
SKU: 277-9269
Price: 32.22 AUD
Availability: Discontinued

Standard Terminals and End Covers

Professional range of Entrelec Standard DIN rail terminals. Three different functions are availalble. They are either Screw, Spring or Stud making these DIN rail terminals perfect for standard industrial applications.

Screw, Spring or Stud functions

Note

Terminals of 70mm² and larger incorporate a hexagon key actuated rising clamp system.
Terminal sizes up to and including 70mm² require a separate end cover; larger terminals are of fully-enclosed design

Approvals

UL listed,CSA certified,ASE,SETI,SEMKO,NEMKO,DEMKO,GL,FIMKO,VDE,CEGB,KEMA,E ExiI/II,E Exei/II

Approvals

1-2,5,10

Select all	Attribute	Value
	Brand	Entrelec
	Colour	Grey
	Number of Levels	Single
	Series	SNA
	Termination Method	Screw
	Cable CSA	70mm²
	Current Rating	192A
	Voltage Rating	1 kV ac
	Pitch	22mm
	Minimum Operating Temperature	-5°C
	Maximum Operating Temperature	+40°C

	Select all
	Brand Entrelec
	Colour Grey
	Number of Levels Single
	Series SNA
	Termination Method Screw
	Cable CSA 70mm²
	Current Rating 192A
	Voltage Rating 1 kV ac
	Pitch 22mm
	Minimum Operating Temperature -5°C
	Maximum Operating Temperature +40°C
