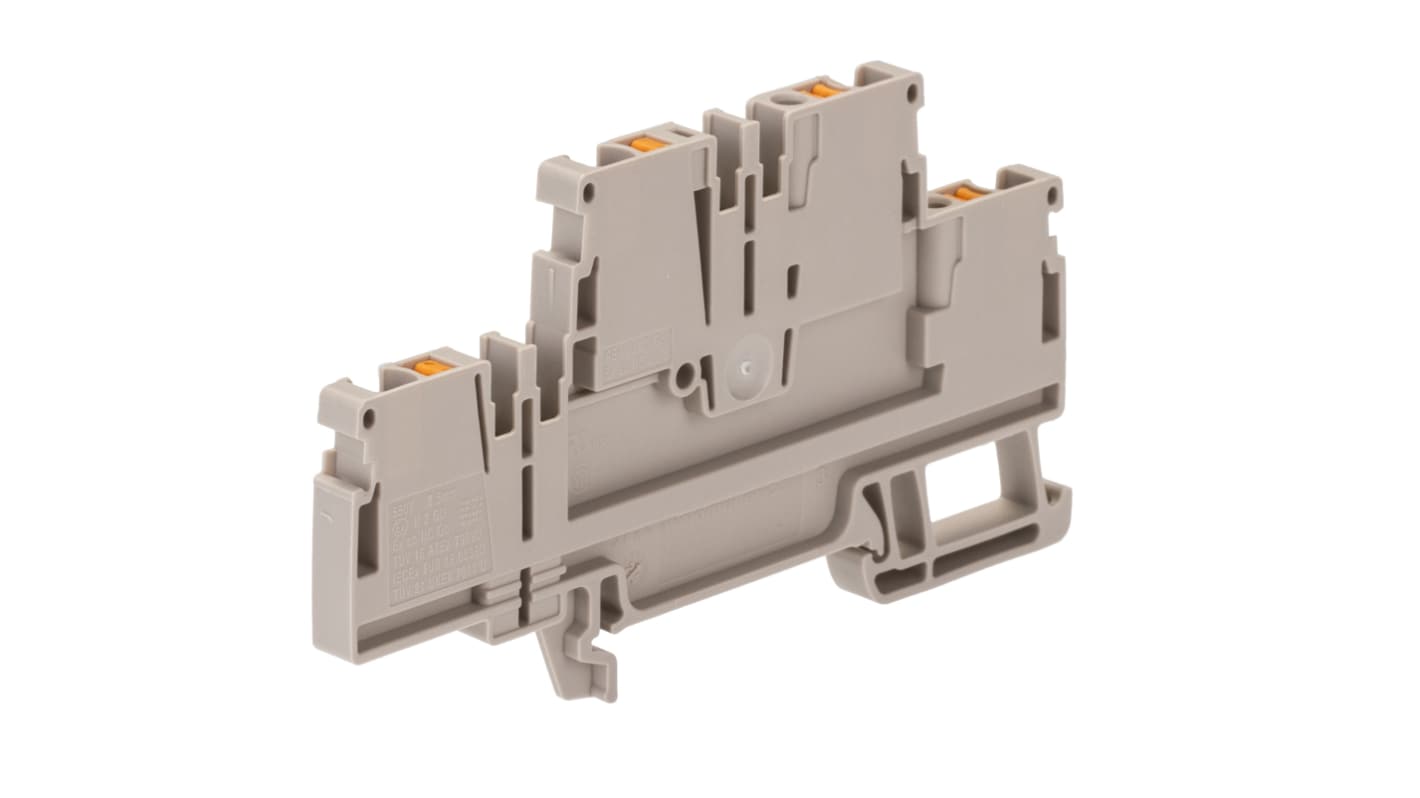

Weidmüller A Series Beige DIN Rail Terminal Block, 2.5mm², Double-Level, Push In Termination

RS Stock No.:: 144-8741
Mfr. Part No.:: 1547610000
Brand:: Weidmüller

Weidmüller A Series Beige DIN Rail Terminal Block, 2.5mm², Double-Level, Push In Termination

4 In Global stock for delivery within 10 working day(s)

Added

Price (ex. GST) 1 Box of 50

$332.29

(exc. GST)

$365.52

(inc. GST)

Box(es)	Per Box	Per unit*
1 +	$332.29	$6.646
*price indicative

RS Stock No.:: 144-8741
Mfr. Part No.:: 1547610000
Brand:: Weidmüller

Technical data sheets

Datasheet

Legislation and Compliance

COO (Country of Origin):: DE

Product Details

Weidmuller Terminal Block

The Weidmuller terminal block is an A-series, 800V, tailored, AAP, potential distribution terminal block. It is ideal for surge current protection and central control voltage distribution. The new maxGUARD range enables potential distribution with integrated electronic load monitoring in the smallest of installation spaces. It has push-in termination, an innovative technology that reduces the amount of time you spend on wiring to a minimum. Direct insertion guarantees high conductor pull out forces and simple handling for all conductor types. It can mount wire size between 28 to 12AWG and cable CSA of 2.5mm².

Features and Benefits

• Rated current 24A
• Rated impulse withstand voltage 8KV
• Rated voltage 800V
• Temperature ranges between -60°C to 130°C

Certifications

• cURus E60693
• ETIM 6.0 EC000897
• IEC 60947-7-1

Specifications

Attribute	Value
Colour	Beige
Number of Levels	Double
American Wire Gauge	28 → 12AWG
Series	A
Termination Method	Push In
Cable CSA	2.5mm²
Current Rating	24A
Voltage Rating	800 V
Minimum Operating Temperature	-60°C
Maximum Operating Temperature	+130°C
