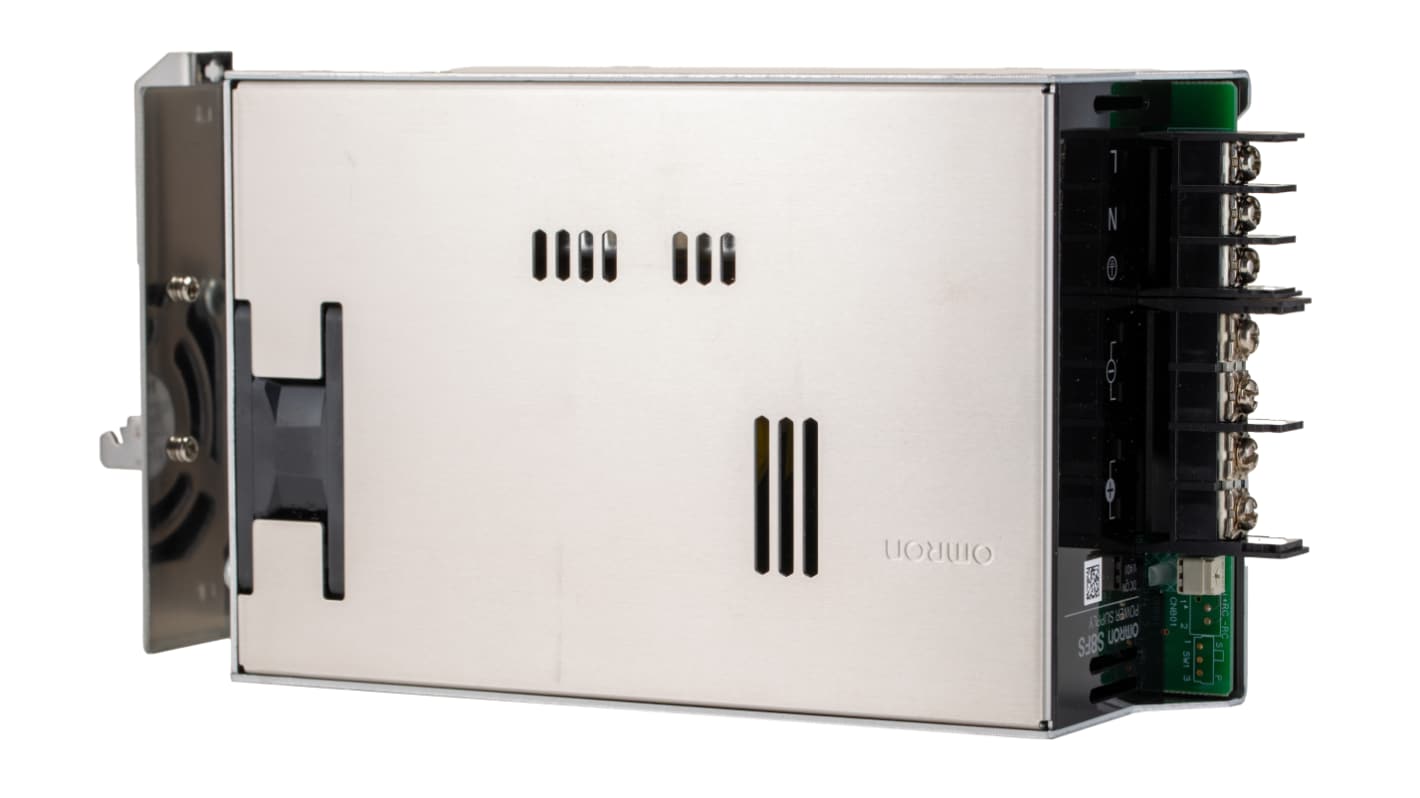

Omron S8FS-G Switched Mode DIN Rail Power Supply, 100 → 240V ac ac Input, 12V dc dc Output, 50A Output, 600W

RS Stock No.:: 166-6787
Mfr. Part No.:: S8FS-G60012CD
Brand:: Omron

Omron S8FS-G Switched Mode DIN Rail Power Supply, 100 → 240V ac ac Input, 12V dc dc Output, 50A Output, 600W

7 In Global stock for delivery within 10 working day(s)

Price (ex. GST) Each

$824.07

(exc. GST)

$906.48

(inc. GST)

Units	Per unit
1 +	$824.07

RS Stock No.:: 166-6787
Mfr. Part No.:: S8FS-G60012CD
Brand:: Omron

Technical data sheets

Legislation and Compliance

Product Details

S8FS-G DIN Rail Switch Mode Power Supply

The S8FS-G series of Switch mode DIN Rail power supplies provide you with excellent standard performance and reliability. They do not require transformers for control circuits plus have in built IEC 61558-2-16 compliant transformers so no need for a transformer with compound windings. The S8FS0G power supplies are excellent with machine tools and semi-conductor equipment plus reduce costs and space. The power supplies include a wealth of features including operating within harsh vibration environments, high temperatures, unstable input voltage and altitudes up to 3000 m.

Part Number S8FS-G60012CD

The S8FS Switch mode, mounted Din Rail mounted power supply is a covered type, screw terminal power supply. S8FS-G60012CD has a power rating of 600 W and an output voltage of 12 V dc plus a rated input voltage of 100 V ac to 240 V ac. This model is natural air cooling.

Features and Benefits.

• Covered type power supply

• Screw terminal

• Built-in transformer

• Design stops screws from falling out of the terminal block

• Front cover

• Resistant to harsh environments

• DIN Rail Mounted

• Green output indicators

• Natural air cooling

• Power rating 600 W

• Output voltage 12 V dc

• Input voltage 100 V ac to 240 V ac (Permissible range 85 V ac to 264 V ac, 120 V dc to 350 V dc)

• Rated output current 50 A

• Harmonic current emissions

• Efficiency 84% min.

• Space saving

• Weight 1050g

• 10 Year life expectancy

Safety and Storage.

Vibration resistance 10 Hz to 55 Hz. 0.375 mm single amplitude in each 3 directions for 2 hours.

Shock resistance 150 m/s**2 in each 6 directions 3 times.

Standards

EN 61000-3-2
UL 508 (Listing, excluding models with connector option or remote control option)
UL 60950-1, UL 62368-1 (Recognition, OVCII 3,000 m, Pol2)
CSA C22.2 No.107.1 (excluding models with connector option or remote control option)
CSA C22.2 No.60950-1, No.62368-1 (excluding models with connector option remote control option)
EN 50178 (OVCIII 2,000 m, OVCII 2,000 m and 3,000 m, Pol2)
EN/IEC 60950-1, EN/IEC 62368-1 (OVCII 3,000 m, Pol2)
Conforms to EN/IEC 61558-2-16
Conforms to PELV (EN/IEC 60204-1)
SEMI conforms to F47-0706 (200 VAC input)

Specifications

Attribute	Value
Series	S8FS-G
Type	Switched Mode
Electrical Phase	1
AC or DC Input Voltage	ac
Input Voltage	100 → 240V ac
AC or DC Output Voltage	dc
Output Voltage	12V dc
Output Current	50A
Power Rating	600W
Number of Outputs	1
Dimensions	242.1 x 126.3 x 62.5mm
Width	242.1mm
Depth	126mm
Height	63mm
Load Regulation	1%
Output Voltage Adjustment Range	-10 → +15%
MTBF	135000h
Mounting Type	DIN Rail Mount
Ripple And Noise	170mV Pk-Pk
Efficiency	88%
Standards Met	CE, CSA C22.2 No. 60950-1, CSA C22.2 No.107.1, cULus Recognised, EN 50178, EN 55011 Class B, EN 60950-1, EN 61000-3-2, EN 61204-3, EN 61204-3 Class B, EN/IEC 61558-2-16, TUV, UL, UL 508, UL 60950-1
Maximum Temperature	+70°C
Minimum Temperature	-20°C
