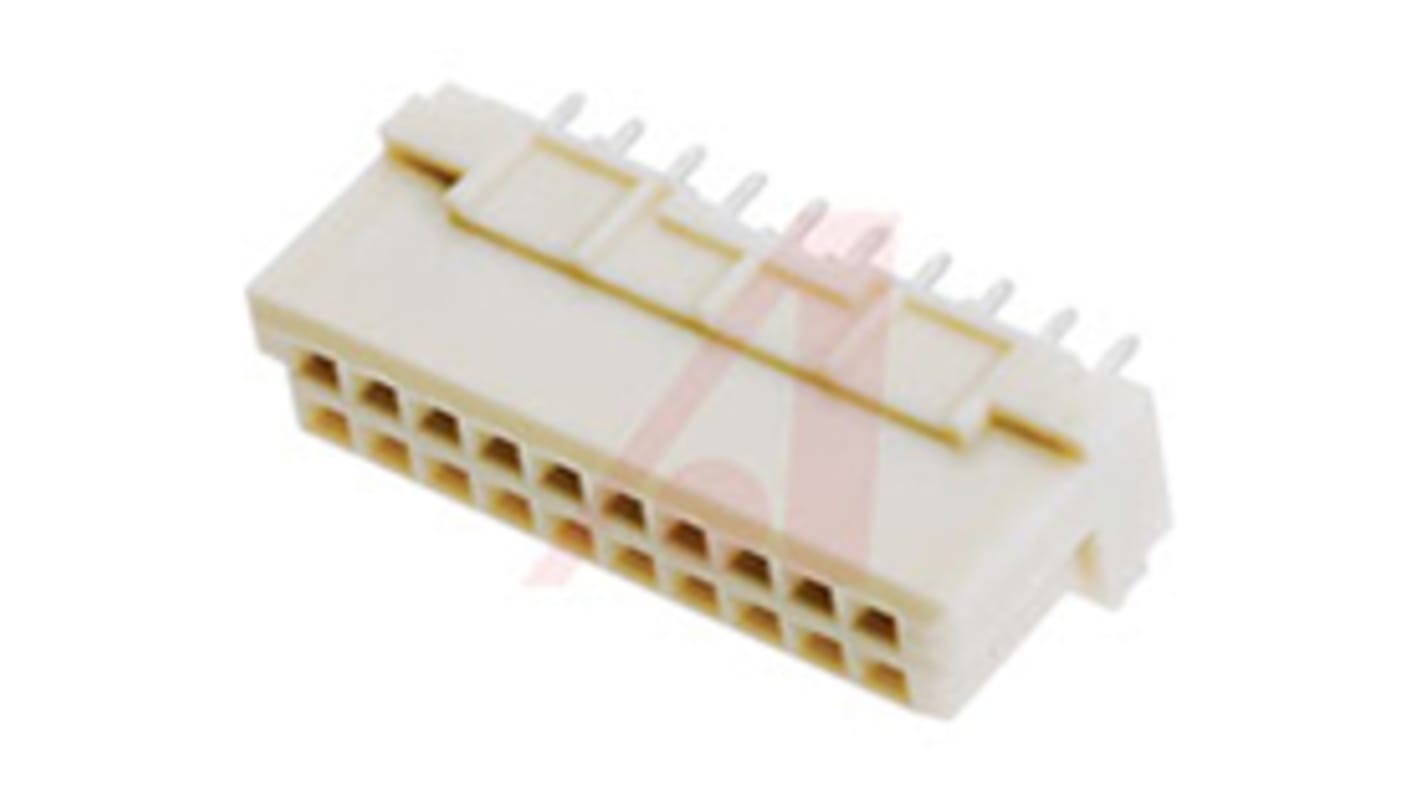

HARTING DIN 41612 20 Way 2.54mm Pitch, Type 3B Class C2, 2 Row, Straight DIN 41612 Connector, Socket
- RS Stock No.:
- 843-8958
- Mfr. Part No.:
- 09242206414
- Brand:
- HARTING
17 In Global stock for delivery within 10 working day(s)
Added
Price (ex. GST) Each
$12.49
(exc. GST)
$13.74
(inc. GST)
Units | Per unit |
1 - 19 | $12.49 |
20 - 74 | $12.14 |
75 + | $11.65 |
- RS Stock No.:
- 843-8958
- Mfr. Part No.:
- 09242206414
- Brand:
- HARTING
Technical data sheets
Legislation and Compliance
RoHS Status: Not Applicable
Product Details
Type 3B Connectors
Performance level 2 as per IEC 60603-2
Straight or right-angled versions available
Straight or right-angled versions available
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
DIN41612 - Harting Range
DIN 41612 connectors for interconnection in all 19in Eurocard racking systems.
Specifications
Attribute | Value |
---|---|
Number of Contacts | 20 |
Gender | Female |
Number of Rows | 2 |
Body Orientation | Straight |
Termination Method | Solder |
Row Loading | a/b |
Type | 3B |
Pitch | 2.54mm |
Contact Plating | Au over Ni |
Class Rating | C2 |
Current Rating | 2A |
Series | DIN 41612 |
