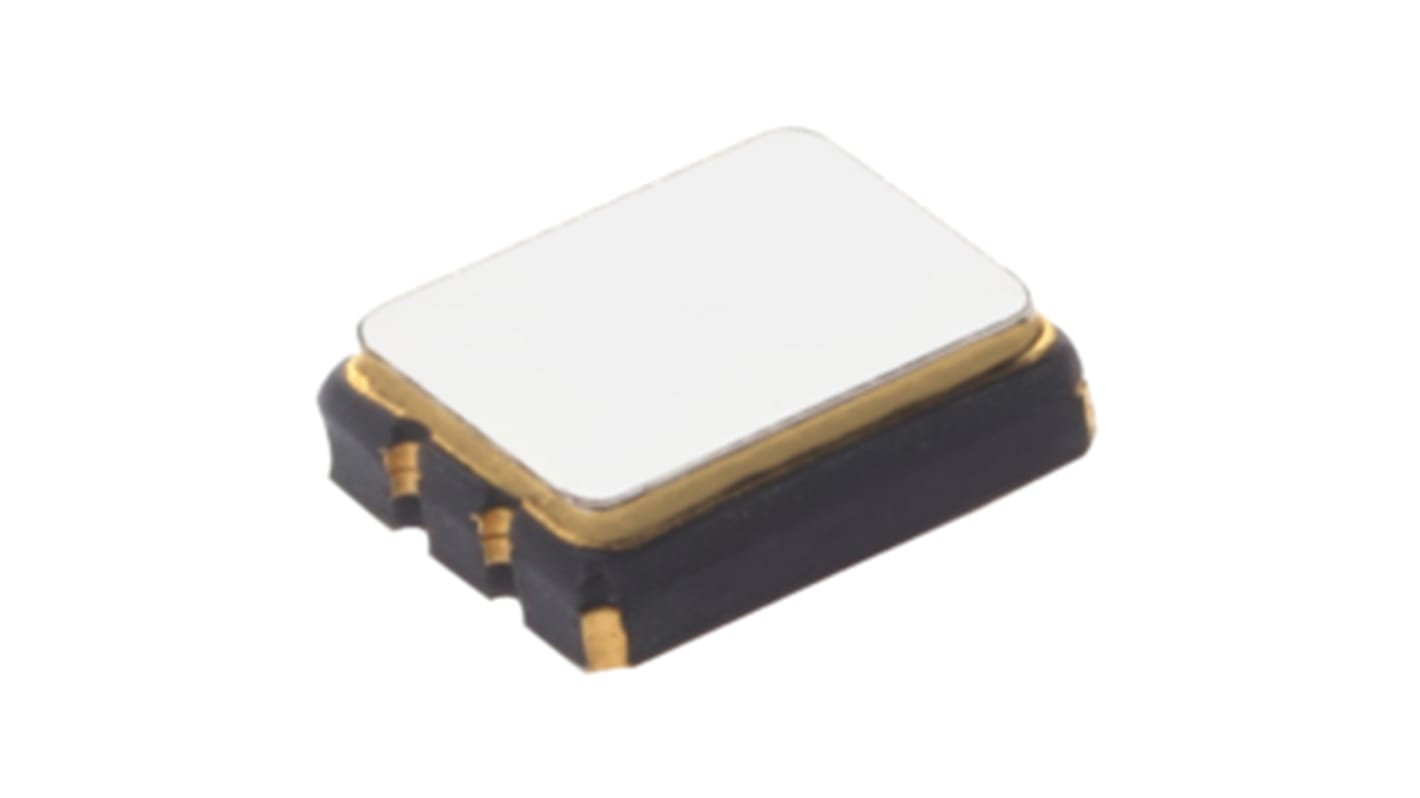

CTS, 25MHz Clock Oscillator, ±50ppm HCMOS, TTL, 4-Pin SMD CB3LV-3I-25M0000
- RS Stock No.:
- 178-1981
- Mfr. Part No.:
- CB3LV-3I-25M0000
- Brand:
- CTS
Available for back order.
Added
Price (ex. GST) Each (On a Reel of 1000)
$1.407
(exc. GST)
$1.548
(inc. GST)
| Units | Per unit | Per Reel* |
| 1000 - 1000 | $1.407 | $1,407.00 |
| 2000 - 3000 | $1.394 | $1,394.00 |
| 4000 + | $1.35 | $1,350.00 |
| *price indicative | ||
- RS Stock No.:
- 178-1981
- Mfr. Part No.:
- CB3LV-3I-25M0000
- Brand:
- CTS
Technical data sheets
Legislation and Compliance
Product Details
Clock Oscillators are the heart of frequency control products. Whether you need a simple reference clock or you are developing a mission critical system, we have the right crystal oscillators to help. Available in packages as small as 2.5mm´2.0mm.
Low phase noise fundamental and 3rd overtone crystal designs
Ultra-low phase noise and jitter: as low as -170dBc/Hz, to 22fs
Standard output types – HCMOS, LVPECL & LVDS
High frequency options available – reaching 1,000MHz
Low cost small package footprints – to 2.5mmx2.0mm size
Real Time clock reference @ 32.768kHz w/ ultra-low current option available [10μA maximum]
Operating temperatures -40°C to +125°C
High Reliability/COTS/High Temperature options [to +200°C]
Extreme Temperature [reaching -55°C to +125°C], Shock and Vibration capability
Ultra-low phase noise and jitter: as low as -170dBc/Hz, to 22fs
Standard output types – HCMOS, LVPECL & LVDS
High frequency options available – reaching 1,000MHz
Low cost small package footprints – to 2.5mmx2.0mm size
Real Time clock reference @ 32.768kHz w/ ultra-low current option available [10μA maximum]
Operating temperatures -40°C to +125°C
High Reliability/COTS/High Temperature options [to +200°C]
Extreme Temperature [reaching -55°C to +125°C], Shock and Vibration capability
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Specifications
Attribute | Value |
|---|---|
| Oscillator Type | Clock |
| Output Frequency | 25MHz |
| Frequency Stability | ±50ppm |
| Package Type | SMD |
| Minimum Operating Supply Voltage | 3V dc |
| Output Level | HCMOS, TTL |
| Maximum Operating Supply Voltage | 3.6V dc |
| Mounting Type | Surface Mount |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | 85°C |
| Height | 1.8mm |
| Width | 5mm |
| Length | 7mm |
| Dimensions | 7 x 5 x 1.8mm |
