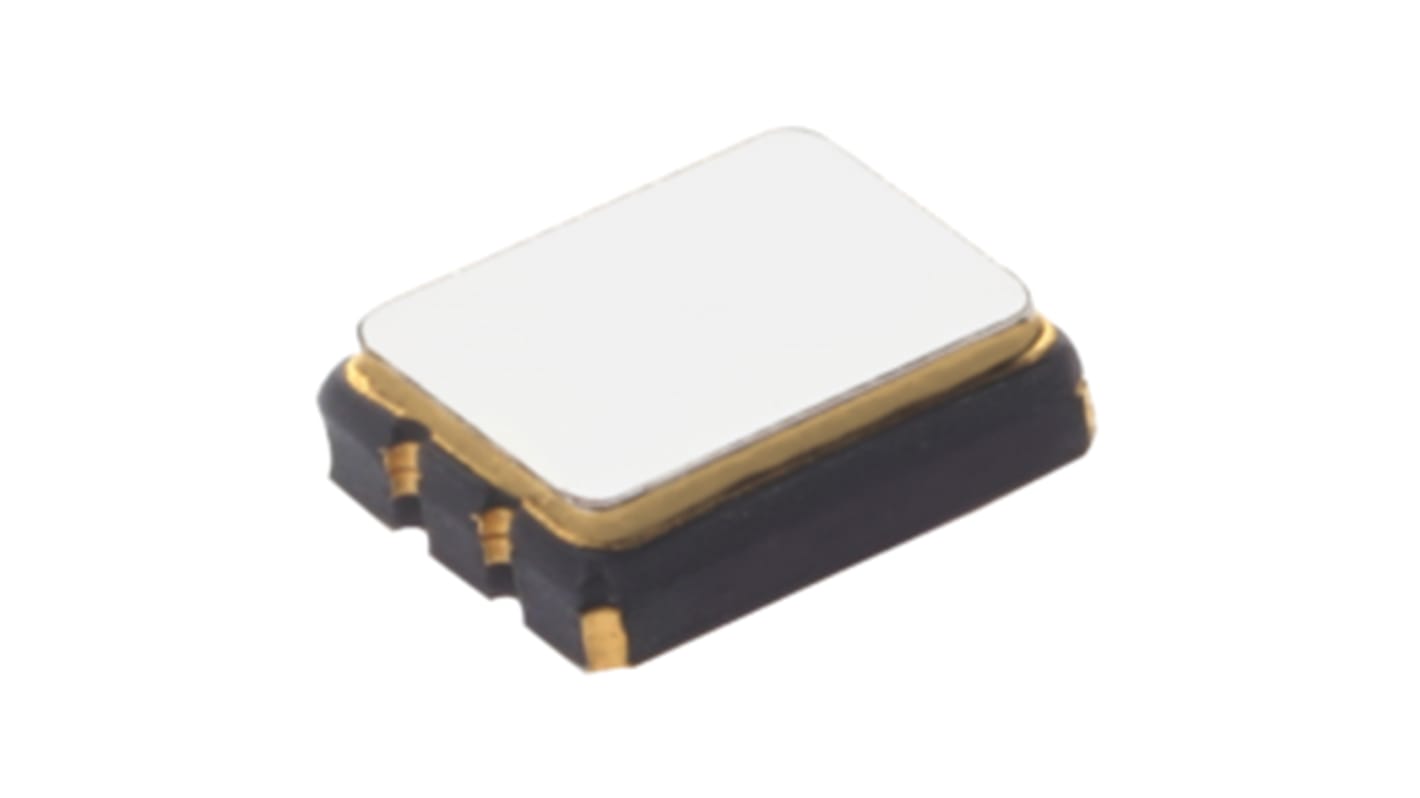

CTS, 25MHz Clock Oscillator, ±50ppm HCMOS, TTL, 4-Pin SMD 636L3I025M00000
- RS Stock No.:
- 178-1935
- Mfr. Part No.:
- 636L3I025M00000
- Brand:
- CTS
Available for back order.
Added
Price (ex. GST) Each (On a Reel of 1000)
$1.571
(exc. GST)
$1.728
(inc. GST)
| Units | Per unit | Per Reel* |
| 1000 - 4000 | $1.571 | $1,571.00 |
| 5000 + | $1.414 | $1,414.00 |
| *price indicative | ||
- RS Stock No.:
- 178-1935
- Mfr. Part No.:
- 636L3I025M00000
- Brand:
- CTS
Technical data sheets
Legislation and Compliance
Product Details
Clock Oscillators are the heart of frequency control products. Whether you need a simple reference clock or you are developing a mission critical system, we have the right crystal oscillators to help. Available in packages as small as 2.5mm´2.0mm.
Low phase noise fundamental and 3rd overtone crystal designs
Ultra-low phase noise and jitter: as low as -170dBc/Hz, to 22fs
Standard output types – HCMOS, LVPECL & LVDS
High frequency options available – reaching 1,000MHz
Low cost small package footprints – to 2.5mmx2.0mm size
Real Time clock reference @ 32.768kHz w/ ultra-low current option available [10μA maximum]
Operating temperatures -40°C to +125°C
High Reliability/COTS/High Temperature options [to +200°C]
Extreme Temperature [reaching -55°C to +125°C], Shock and Vibration capability
Ultra-low phase noise and jitter: as low as -170dBc/Hz, to 22fs
Standard output types – HCMOS, LVPECL & LVDS
High frequency options available – reaching 1,000MHz
Low cost small package footprints – to 2.5mmx2.0mm size
Real Time clock reference @ 32.768kHz w/ ultra-low current option available [10μA maximum]
Operating temperatures -40°C to +125°C
High Reliability/COTS/High Temperature options [to +200°C]
Extreme Temperature [reaching -55°C to +125°C], Shock and Vibration capability
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Specifications
Attribute | Value |
|---|---|
| Oscillator Type | Clock |
| Output Frequency | 25MHz |
| Frequency Stability | ±50ppm |
| Package Type | SMD |
| Minimum Operating Supply Voltage | 2.97V dc |
| Output Level | HCMOS, TTL |
| Mounting Type | Surface Mount |
| Maximum Operating Supply Voltage | 3.63V dc |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | 85°C |
| Height | 1.3mm |
| Width | 3.2mm |
| Length | 5mm |
| Dimensions | 5 x 3.2 x 1.3mm |
