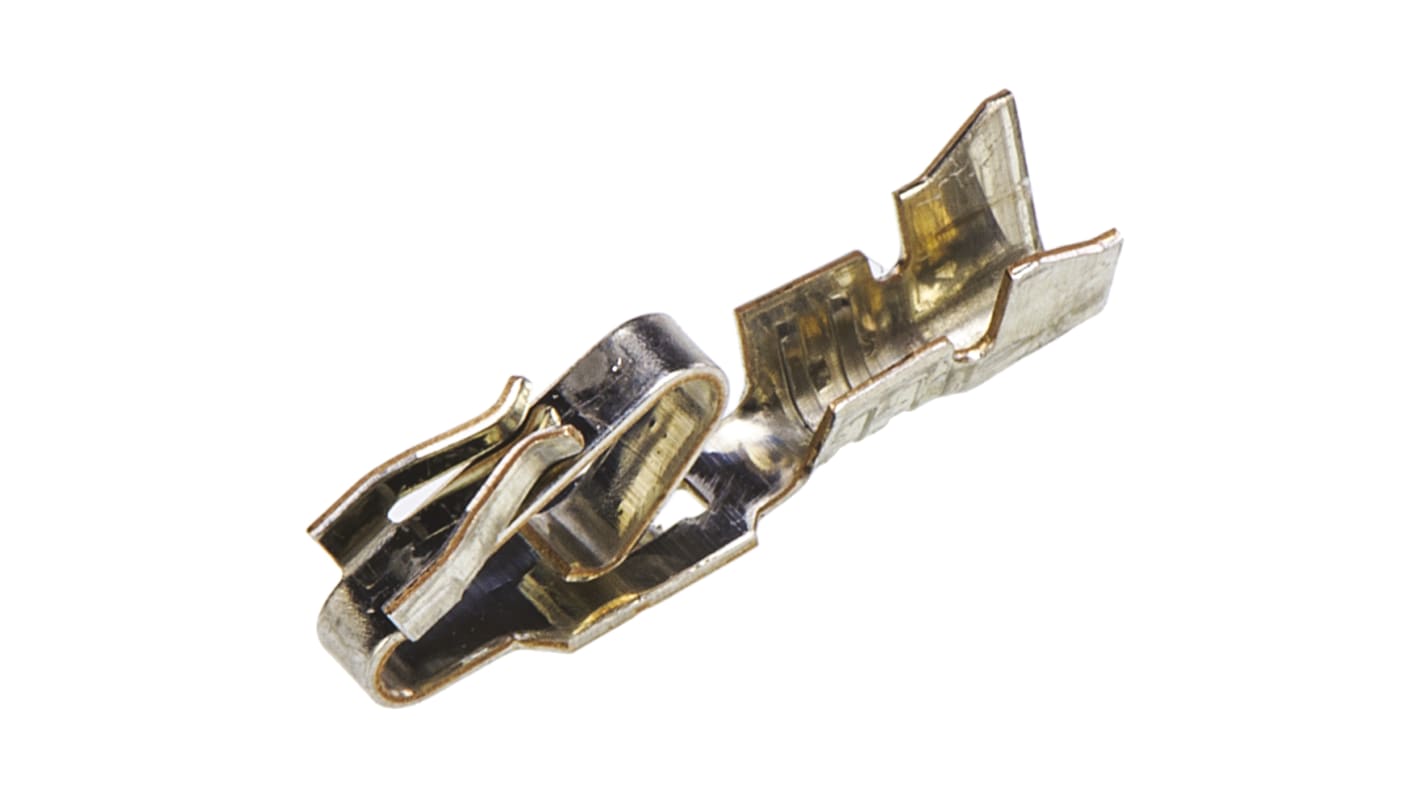

Molex, KK 396, Trifurcon Female Crimp Terminal Contact 18AWG 08-52-0113

  • RS Stock No. 679-4723
  • Mfr. Part No. 08-52-0113
  • Manufacturer Molex
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

Crimp Terminals, 6838 Series

Crimp terminals for use with 41695 Series housings

3.96mm Molex KK Range

Specifications
Attribute Value
Gender Female
For Use With KK 396 Connector Housing
Series KK 396, Trifurcon
Minimum Wire Size mm² 0.5mm²
Maximum Wire Size mm² 0.8mm²
Termination Method Crimp
Minimum Wire Size AWG 20AWG
Contact Plating Tin
Maximum Wire Size AWG 18AWG
Contact Material Phosphor Bronze
Series Number 6838
Maximum Contact Resistance 6mΩ
Minimum Operating Temperature 0°C
Maximum Operating Temperature +75°C
1600 : Next working day (AU stock)
1600 : 7 working days (Global stock)
Price (ex. GST) Each (In a Pack of 100)
$ 0.156
(exc. GST)
$ 0.172
(inc. GST)
units
Per unit
Per Pack*
100 - 900
$0.156
$15.60
1000 - 2900
$0.148
$14.80
3000 - 7400
$0.141
$14.10
7500 - 14900
$0.137
$13.70
15000 +
$0.133
$13.30
*price indicative
