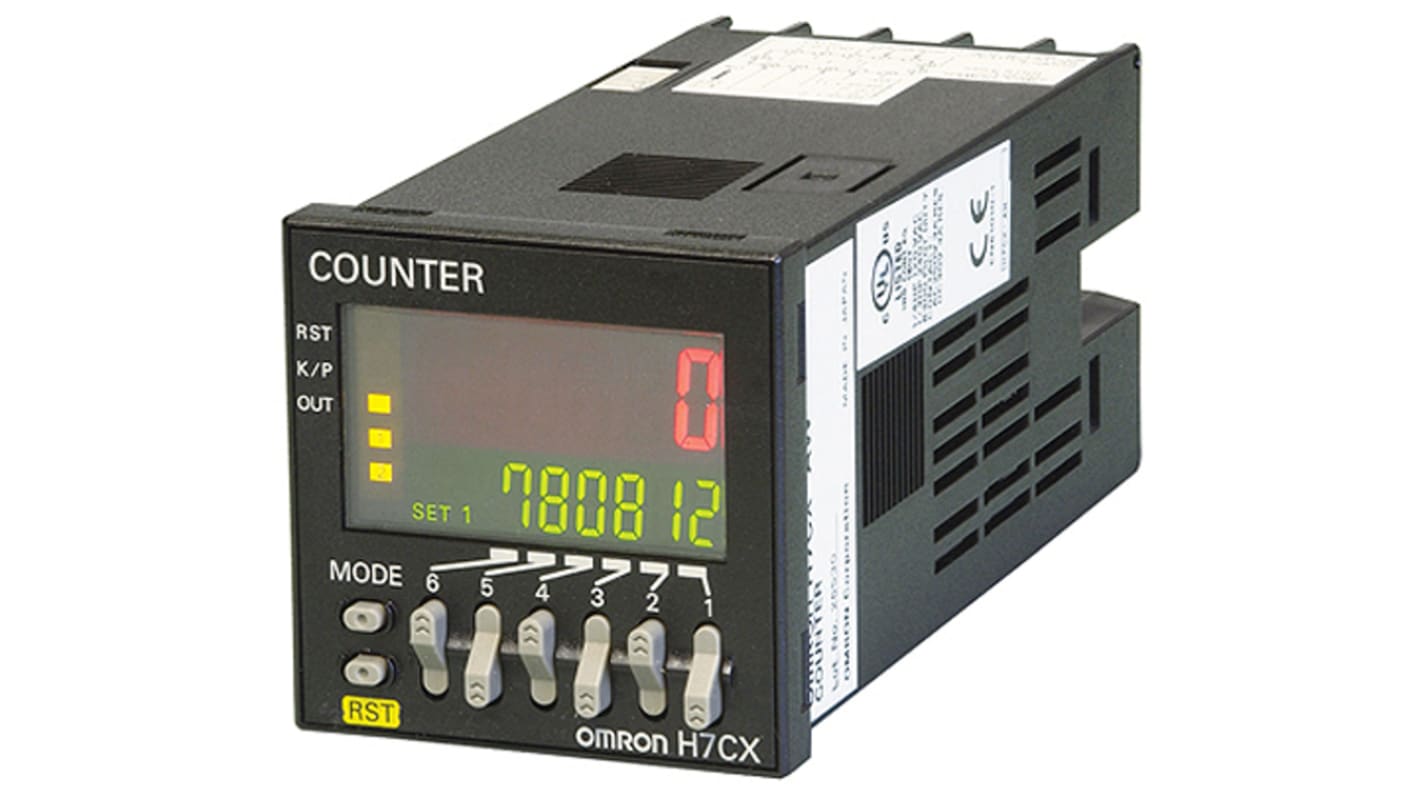

Omron 6 Digit, LCD, Digital Counter, 10kHz, 24 V dc, 12 24 V ac

  • RS Stock No. 827-6750
  • Mfr. Part No. H7CXAWD1NDC1224AC24
  • Manufacturer Omron
Technical data sheets
Legislation and Compliance
Non Compliant
Product Details

Multifunction Preset Counter

Configurable single or dual preset counter, total and preset counter, batch counter, dual counter or tachometer (configurability varies with model) Note that dual preset H7CXU types are factory configured as single preset

Highly visible LCD display
Programmable PV colour to visually alert when output status changes (screw terminal block models only)
Intuitive setting enabled using ergonomic up/down digit keys (4 digit modes) and DIP switch
Option of screw terminal block or 11-pin plug-in style terminals
Resettable
Data retention greater than 10 years
Fingersafe terminals (screw terminal block models)
1/16 DIN Standard 45 x 45mm panel cut-out
Front fascia sealed to IP66
NEMA4 compliance

Note

Panel mounting adaptor supplied with screw terminal models, available separately for 11-pin versions, see 342-916
For 11-pin DIN-rail/surface mount base, see 342-922

Approvals

UL, CSA

Specifications
Attribute Value
Supply Voltage 12 24 V ac, 24 V dc
Count Mode Seconds
Display Type LCD
Input Type No Voltage, Voltage
Connection Type Screw
Reset Method Automatic, External, Manual
Number of Digits 6
Mounting Type Flush Mount
Output / Interface SPDT, SPST Contact
Count Direction Bi-Directional
Digit Height 10 mm
Backlighting Yes
Maximum Count Frequency 10kHz
Display Range -99999 999999
Measurement Range -99999 999999
Minimum Operating Temperature -10°C
Series H7CX
Weight 130g
Maximum Operating Temperature +55°C
1 : Next working day (AU stock)
10 : 5 working days (Global stock)
Price (ex. GST) Each
$ 484.00
(exc. GST)
$ 532.40
(inc. GST)
units
Per unit
1 +
$484.00
