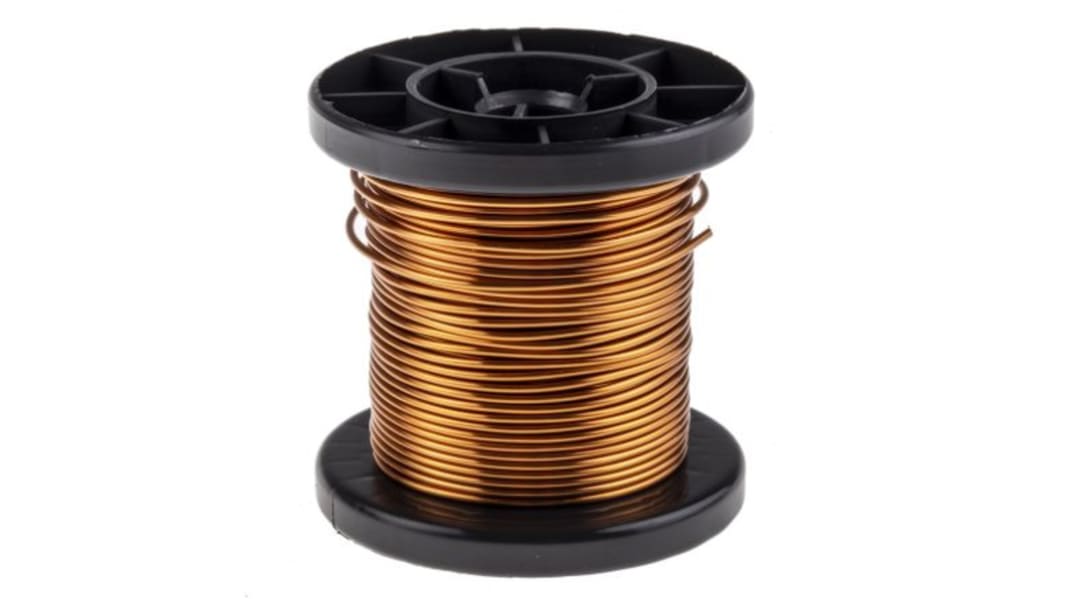

Block Single Core 1.8mm diameter Copper Wire, 17m Long

RS Stock No.:: 779-0750
Mfr. Part No.:: CUL 500/1,80
Brand:: Block

Block Single Core 1.8mm diameter Copper Wire, 17m Long

19 In stock for delivery within 1 working day(s)

Added

Price (ex. GST) Each

$60.86

(exc. GST)

$66.95

(inc. GST)

Units	Per unit
1 - 4	$60.86
5 +	$59.20

RS Stock No.:: 779-0750
Mfr. Part No.:: CUL 500/1,80
Brand:: Block

Technical data sheets

Legislation and Compliance

COO (Country of Origin):: DE

Product Details

Block Enamelled Copper Wire

From Block, a range of enamelled copper wire supplied on plastic spools. The single strand copper wire features a thin covering of enamel which acts as great insulation ensuring good chemical and thermal resistance. The enamel coating also prevents shorting. Enamelled copper wire or magnet wire is particularly useful for the production of tight coils. Block insulated copper wire is available in various diameters, AWG (American Wire Gauge) sizes and current ratings.

Features and Benefits

• Excellent insulation properties
• Copper possesses good chemical and corrosion protection
• Long term thermal resistance
• Solderable

Applications

Enamelled single strand copper conductors are utilised in a wide range of electronic manufacturing. The most common are

• Motor coil production
• Transformer winding
• Inductors for electronics
• Relay coils
• Speaker coils
• Potentiometers

Specifications

Attribute	Value
Cross Sectional Area	2.5 mm²
Core Strands	1/1.80 mm
Insulation Material	PUR
Outer Diameter	1.8mm
Length	17m
Finish	Enamelled
Maximum Operating Temperature	+155°C
Shield Type	Unshielded
Series	CUL500
Operating Temperature Range	+155 °C
Cable Type	Single Core
