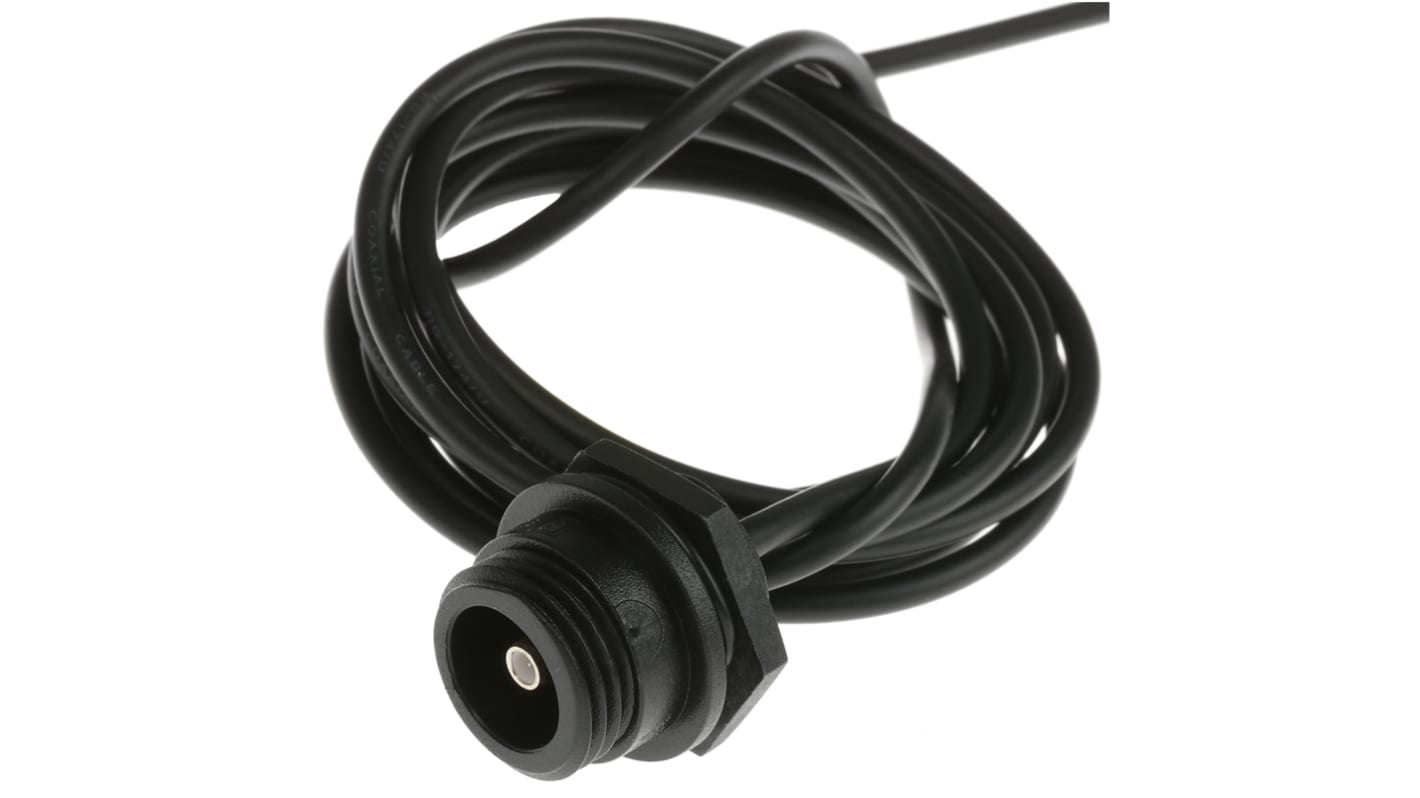

Bulgin 400 Series Panel Mount Female SMB, 50 Ω, Straight Body Pre-Wired
- RS Stock No.:
- 494-4364
- Mfr. Part No.:
- PX0414/1M50
- Brand:
- Bulgin
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
$75.91
(exc. GST)
$83.50
(inc. GST)
FREE delivery for orders over $80.00 ex GST
Temporarily out of stock
- 9 left, ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 14 | $75.91 |
| 15 - 49 | $73.63 |
| 50 - 99 | $71.36 |
| 100 - 249 | $69.82 |
| 250 + | $68.28 |
*price indicative
- RS Stock No.:
- 494-4364
- Mfr. Part No.:
- PX0414/1M50
- Brand:
- Bulgin
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Bulgin | |
| Product Type | Coaxial Connector | |
| Coaxial Connector Type | SMB | |
| Mount Type | Panel Mount | |
| Impedance | 50Ω | |
| Connector Gender | Female | |
| Orientation | Straight | |
| Cable Type | RG174 | |
| Size | Standard | |
| Bulkhead | No | |
| Operating Frequency | 4GHz | |
| Minimum Operating Temperature | -20°C | |
| Body Plating | Gold | |
| Termination Type | Pre-Wired | |
| Maximum Operating Temperature | 80°C | |
| Polarity | Normal | |
| Contact Gender | Female | |
| Series | 400 | |
| Standards/Approvals | No | |
| Contact Material | Beryllium Copper Alloy | |
| Contact Plating | Gold | |
| Select all | ||
|---|---|---|
Brand Bulgin | ||
Product Type Coaxial Connector | ||
Coaxial Connector Type SMB | ||
Mount Type Panel Mount | ||
Impedance 50Ω | ||
Connector Gender Female | ||
Orientation Straight | ||
Cable Type RG174 | ||
Size Standard | ||
Bulkhead No | ||
Operating Frequency 4GHz | ||
Minimum Operating Temperature -20°C | ||
Body Plating Gold | ||
Termination Type Pre-Wired | ||
Maximum Operating Temperature 80°C | ||
Polarity Normal | ||
Contact Gender Female | ||
Series 400 | ||
Standards/Approvals No | ||
Contact Material Beryllium Copper Alloy | ||
Contact Plating Gold | ||
- COO (Country of Origin):
- TN
Panel SMB Connector
Panel mount SMB jack
Terminated with RG-174 cable
Single hole fixing
Bulgin - SMB Buccaneer
The SMB Buccaneer is designed for applications requiring compact RF connections up to 4GHz in external or harsh environments. Dust and waterproof to IP68, the SMB connector is housed in robust moulding.Applications include: broadband, LAN/internet routing, test and measurement and instrumentation/telemetry equipment.
Sealed to IP68 (tested 10m for 2 weeks)
50Ωimpedance
Cable connector re-wireable - RG -174 cable
Cable connector pre-wired with RG-174 cable
Panel connector pre-wired with RG-174 cable
Overall diameter 19mm
Gold plated SMB connectors
