Product Details
RG179 FEP
A double shielded, RG179 coaxial cable with a fluorinated ethylene propylene jacket that provides excellent resistance to caustic agents.
Features and Benefits
· Double silver plated copper braid
· High rated temperature -70-200°C
· Double silver plated copper braid
· High rated temperature -70-200°C
Standards
MIL-C-17F, MIL-C-17G

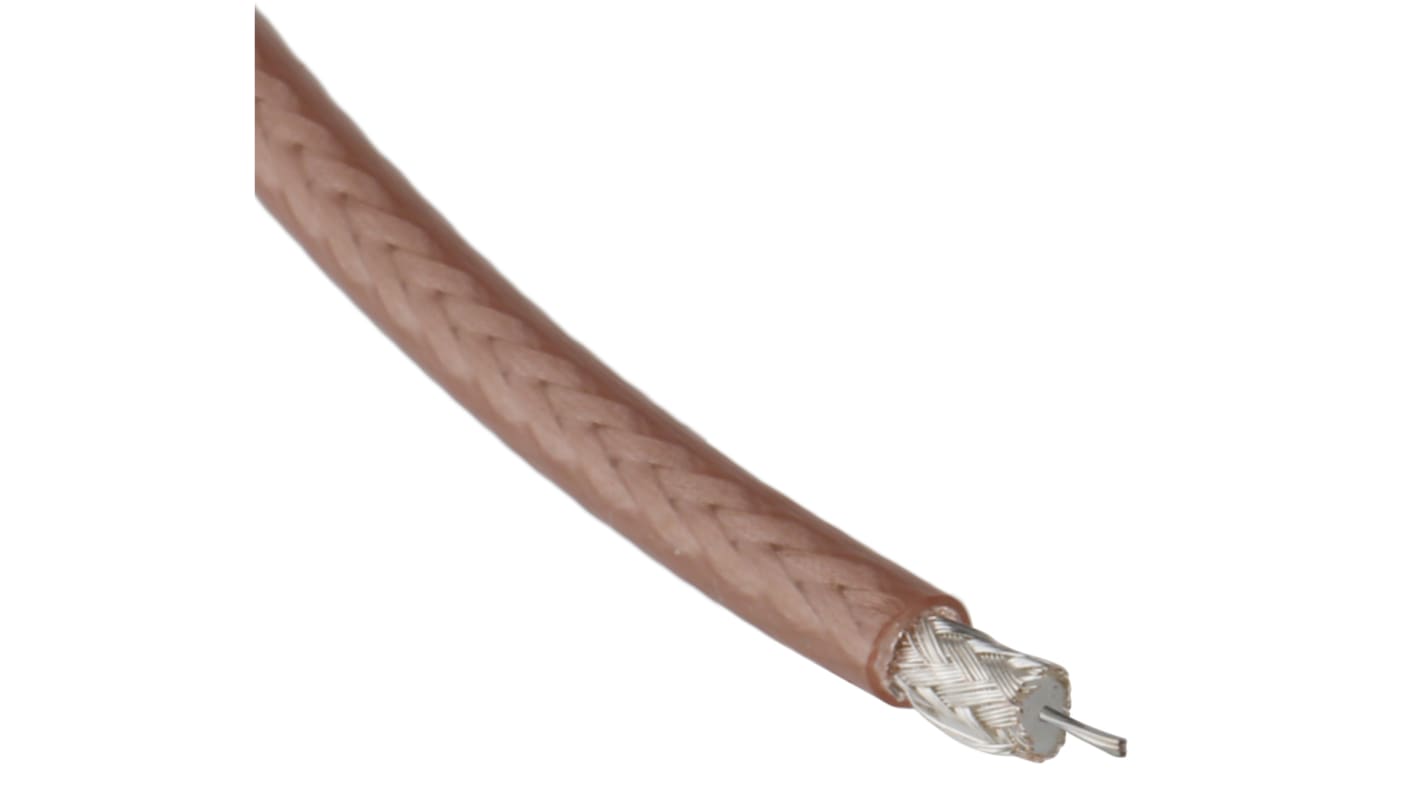

RS PRO Brown Unterminated to Unterminated RG179 Coaxial Cable, 75 Ω 3 mm OD
This RS PRO unterminated to unterminated RG179 coaxial cable is well-suited as a transmission line for radio frequency signals. This means you can use it for a range of everyday applications, including joining a satellite TV antenna to a television, connecting a digital audio (S/PDIF) signal to a radio or interlinking computer networks via the internet. The brown PVC-coated lead comes in a 25-metre reel and is used in both domestic and commercial settings.
As an RG179 cable, this product is capable of transmitting high-quality images. The inner wires are double shielded, so users will benefit from lower levels of image and noise interference.
This cable comes with the reliability and durability you'd expect from our top-quality RS PRO range. It has a hardwearing fluorinated ethylene propylene (FEP) jacket to stop the inner cable corroding. In addition, it's able to withstand a wide range of temperatures, from -70°C to 200°C.
As an RG179 cable, this product is capable of transmitting high-quality images. The inner wires are double shielded, so users will benefit from lower levels of image and noise interference.
This cable comes with the reliability and durability you'd expect from our top-quality RS PRO range. It has a hardwearing fluorinated ethylene propylene (FEP) jacket to stop the inner cable corroding. In addition, it's able to withstand a wide range of temperatures, from -70°C to 200°C.
Features and Benefits
• Unterminated connectors
• RG179
• 75 Ω
• Outer diameter of 3 mm
• Brown sheath
• Stranded conductor
• Attenuation of 78.7dB @ 1000 MHz
• MIL-C-17F and MIL-C-17G certified for quality
• Minimum operating temperature -70 °C
• Maximum operating temperature +200 °C
• RG179
• 75 Ω
• Outer diameter of 3 mm
• Brown sheath
• Stranded conductor
• Attenuation of 78.7dB @ 1000 MHz
• MIL-C-17F and MIL-C-17G certified for quality
• Minimum operating temperature -70 °C
• Maximum operating temperature +200 °C
RS PRO
RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
theyre only given the RS PRO Seal of Approval if were confident of their exceptional quality, which means you can be confident too.
Specifications
Attribute | Value |
---|---|
Terminated/Unterminated | Unterminated |
Coaxial Type | RG179 |
Outer Diameter | 3mm |
CPR Certification | Fca |
Characteristic Impedance | 75 Ω |
Attenuation | 78.7dB @ 1000 MHz |
Length | 25m |
Sheath Colour | Brown |
Conductor Strand Type | Stranded |
Sheath Material | FEP |
Shielding | Silver Plated Copper Braid |
Insulation Material | PTFE |
Velocity ratio | 69.5% |
Minimum Operating Temperature | -70°C |
Number of Strands | 7 |
Maximum Operating Temperature | +200°C |
Size of Strands | 0.1 mm |
Conductor Material | Silver Plated Copper Clad Steel |
Capacitance | 64pF/m |
Core Strands | 7/0.1 |
Operating Temperature Range | -70 → +200 °C |
Standards Met | Euroclass Eca |
