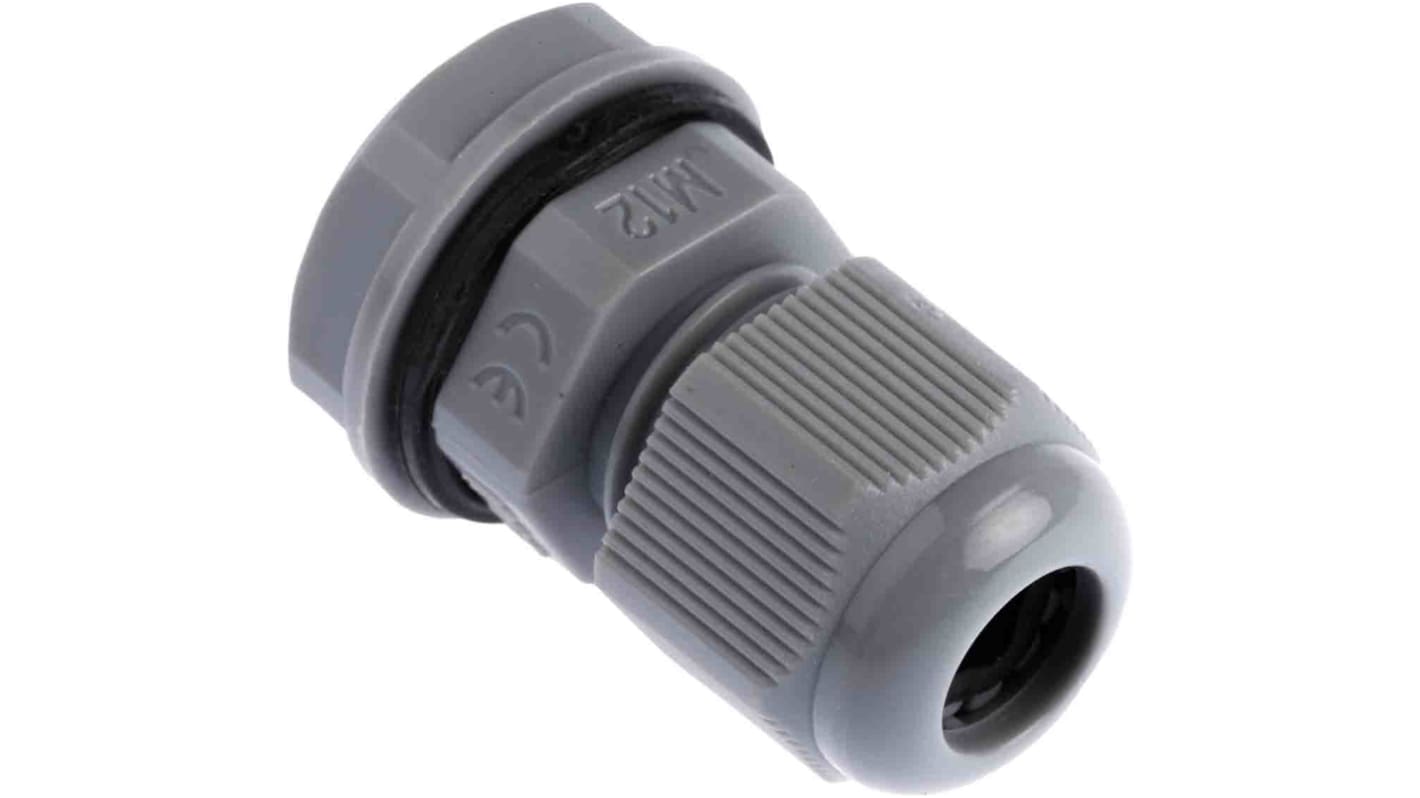

HellermannTyton NGM Series Grey Nylon Cable Gland, M12 Thread, 3mm Min, 6.5mm Max, IP68

RS Stock No.:: 882-9947
Mfr. Part No.:: NGM12-DGY
Brand:: HellermannTyton

HellermannTyton NGM Series Grey Nylon Cable Gland, M12 Thread, 3mm Min, 6.5mm Max, IP68

310 In AU stock for next working day delivery

3000 In Global stock for delivery within 10 working day(s)

Added

Price (ex. GST) Each (In a Pack of 10)

$1.341

(exc. GST)

$1.475

(inc. GST)

Units	Per unit	Per Pack*
10 - 140	$1.341	$13.41
150 - 490	$1.338	$13.38
500 +	$1.321	$13.21
*price indicative

RS Stock No.:: 882-9947
Mfr. Part No.:: NGM12-DGY
Brand:: HellermannTyton

Technical data sheets

Legislation and Compliance

RoHS Status: Not Applicable

COO (Country of Origin):: CN

Product Details

HellermannTyton IP68 M12 Nylon Cable Gland

Nylon cable gland with an IP68 rating, size M12 are ideal for connecting cable to electrical equipment.The IP68 rating helps protect againt dust & water.

Features and benefits

Rating to IP68 protection against ingress of dust and water

Dismantling not necessary

Nylon 66 material

Available in red, black, white and grey

Note

These glands are NOT designed to be used with steel wire armoured cable.

HellermannTyton Cable Gland, For Use With Non-Armoured Cable, Grey - NGM Series - NGM12-DGY

Protect your wiring connection with this cable gland from HellermannTyton. It has an M12 thread size for wide compatibility with industry-standard panels and connectors. An IP68 rating indicates you can be sure the unit stops dust in its tracks and withstands temporary immersion in water up to one metre deep. The straightforward design means there's no need for complex tools as the locknut simply twists open and you can close it by hand.

Features & Benefits

• Nylon 66 material withstands corrosion, impacts and abrasion for a long service life
• Performs reliably in a temperature range between -40°C and +100°C, to suit harsh conditions
• Halogen-free, so it's an environmentally friendly choice
• Accepts a cable diameter range between 3 and 6.5mm for versatile application

Applications

• HVAC controls
• Industrial automation
• Construction industry

Is this product fire-safe?

Yes. This cable gland is made from flame-retardant material that self-extinguishes in under 60 seconds in the event of fire.

Specifications

Attribute	Value
Thread Size	M12
Maximum Cable Diameter	6.5mm
Minimum Cable Diameter	3mm
Material	Nylon 66
Colour	Grey
Series	NGM
IP Rating	IP68
Locknut Included	Yes
Fire Behaviour	Low Smoke Zero Halogen (LSZH)
Maximum Operating Temperature	+100°C
Minimum Operating Temperature	-40°C
Standards Met	ELV
Operating Temperature Range	-40 → +100 °C
