Ansmann Energy Check LCD Battery Tester For Various Battery

  • RS Stock No. 517-7818
  • Mfr. Part No. 4000392
  • Manufacturer Ansmann
Technical data sheets
Legislation and Compliance
RoHS Status: Not Applicable
COO (Country of Origin): CN
Product Details

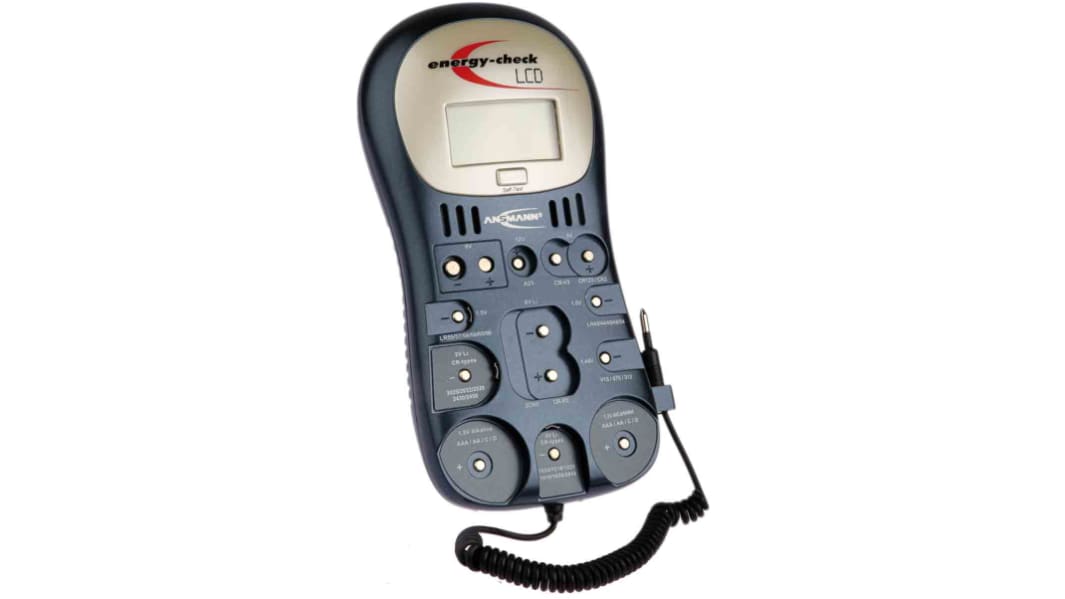

Ansmann Battery Tester

The Ansmann battery capacity tester is a high-quality tester designed to test popular primary and rechargeable batteries. By using “CAM-Technology” the capacity of the cell under test will be indicated accurately in only two seconds.
This tester is compatible with:
Lithium button cells 3V: CR1025, CR1216, CR1220, CR1616, CR1620, CR2016, CR2025, CR2032, CR2430, CR2450
Lithium photo batteries: CR2, CR123A, CRP-2/2CR5
Alkaline button cells: LR43, LR44, LR45, LR48, LR54, LR55, LR59, LR58, LR60, LR66
Zinc-air button cells: V675, V13, V312
Alkaline batteries: A23(12V), AAA, AA, C, D, 9V
NiCd and NiMH cells: AAA, AA, C and D

Features and Benefits

The supply voltage is 9V
3 digit LCD display
Reliable battery tester for all common cell types
Ultra-fast testing
Indicates the cell capacity in 10% steps within 2-3 seconds
Indicates the battery voltage in V

Certifications

CE certified
ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007

Specifications
Attribute Value
For Battery Chemistry Alkaline, Lithium, NiCd, NiMH, Zinc Air
For Battery Size A23, AA, AAA, C, Coin Cell, CR123A, CR2, CRP2, CRV3, D, 2CR5, 9V
