Panasonic 47μF Aluminium Electrolytic Aluminium Electrolytic Capacitor 50V dc, Radial, Through Hole - EEUFC1H470

RS Stock No.:: 572-198
Mfr. Part No.:: EEUFC1H470
Brand:: Panasonic

Panasonic 47μF Aluminium Electrolytic Aluminium Electrolytic Capacitor 50V dc, Radial, Through Hole - EEUFC1H470

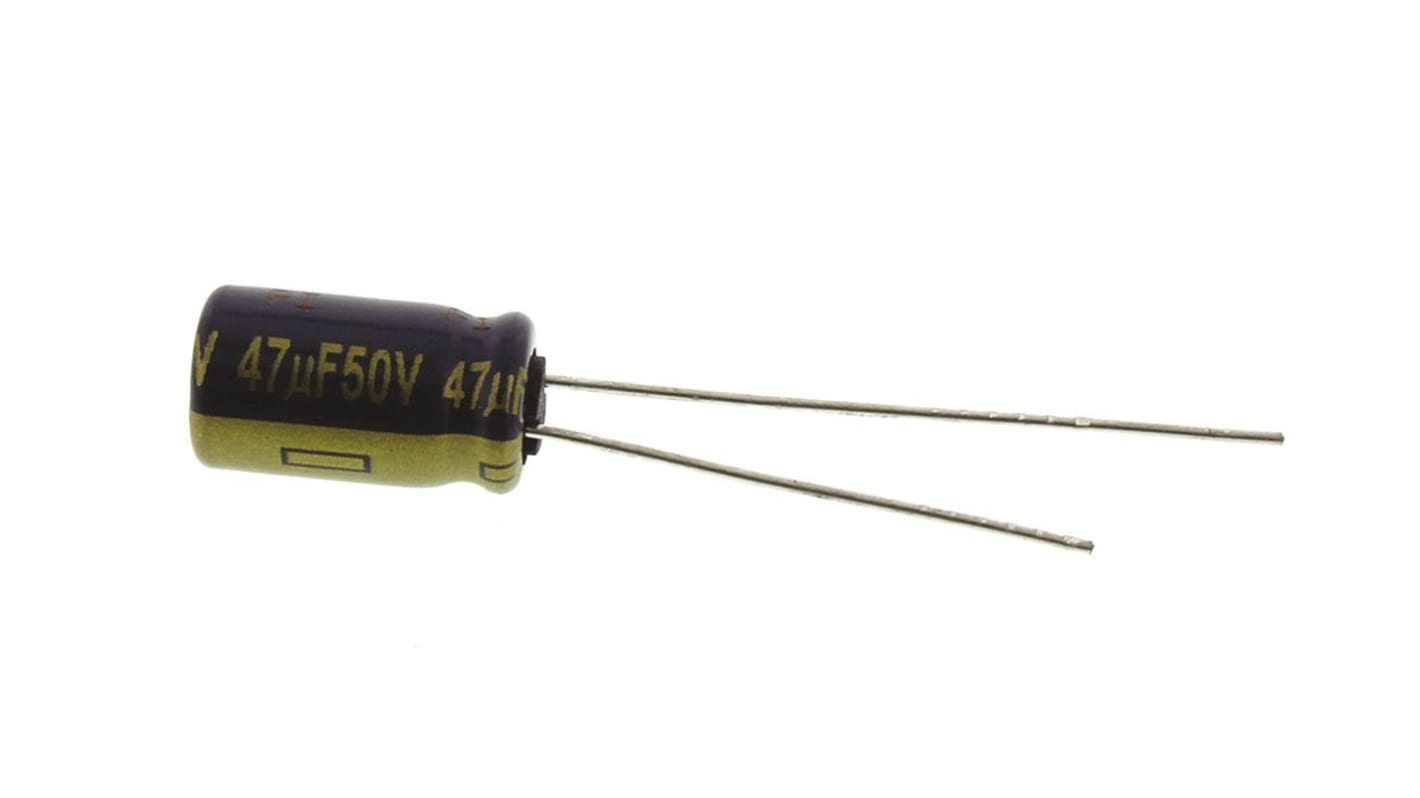

This image is representative of the product range

Bulk discount available

Subtotal (1 pack of 5 units)**

$2.80

(exc. GST)

$3.10

(inc. GST)

20 In AU stock for next working day delivery*

180 In Global stock for delivery within 10 working day(s)

* Delivery dates may change based on your chosen quantity and delivery address.

FREE delivery for orders over $60.00 ex GST

Real time qty checker

Units	Per unit	Per Pack**
5 - 45	$0.56	$2.80
50 - 95	$0.548	$2.74
100 +	$0.542	$2.71

**price indicative

RS Stock No.:: 572-198
Mfr. Part No.:: EEUFC1H470
Brand:: Panasonic

Panasonic FC-A Series Aluminium Electrolytic Capacitor, 47μF Capacitance, 50V Voltage - EEUFC1H470

This aluminium electrolytic capacitor is designed for precision within electronic applications. With a capacitance of 47 μF and a maximum voltage rating of 50V DC, it ensures reliable operation across a range of environments. The radial through-hole mounting type allows for seamless integration into various PCB designs, with dimensions of 6.3mm in diameter and a height of 11.2mm.

Features & Benefits

• Suitable for high-temperature applications up to +105 °C
• Low equivalent series resistance of 600 mΩ for improved performance
• Polarised design ensures correct installation and operation
• Reliable ripple current rating of 260 mA offers stable functionality
• Designed for longevity with a lifetime of 1000 hours
• Minimal leakage current of just 3 μA enhances efficiency

Applications

• Used with power supply circuits in consumer electronics
• Commonly employed in automation control systems
• Utilised in filtering within audio equipment
• Ideal for use in DC-link in inverters

What are the specific temperature tolerances for this component?

It operates efficiently between -55 °C and +105 °C, making it suitable for diverse environmental conditions.

How does the ripple current rating affect performance?

The rated ripple current indicates the maximum current the capacitor can handle without overheating, ensuring consistent performance even under load.

What is the significance of a low equivalent series resistance (ESR)?

A low ESR reduces energy losses and heat generation, leading to better efficiency and longer capacitor life in electronic circuits.

How should this capacitor be mounted for optimal performance?

Utilising a radial through-hole approach allows for secure placement on PCBs, ensuring stable connections and reliable operation.

What precautions should be taken regarding the polarised nature?

Bear in mind the polarity when installing, as reversing the connection can lead to component failure or damage to the circuit.

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Panasonic
	Capacitance	47µF
	Voltage	50V dc
	Mounting Type	Radial, Through Hole
	Technology	Aluminium Electrolytic
	Dimensions	6.3 (Dia.) x 11.2mm
	Height	11.2mm
	Length	11.2mm
	Minimum Operating Temperature	-55°C
	Diameter	6.3mm
	Maximum Operating Temperature	+105°C
	Lead Pitch	2.5mm
	Lifetime	1000h
	Equivalent Series Resistance	600mΩ
	Series	FC-A
	Ripple Current	260mA
	Leakage Current	3 μA
	Polarised	Polar
	Tolerance	±20%
	Dissipation Factor	200%

	Select all
	Brand Panasonic
	Capacitance 47µF
	Voltage 50V dc
	Mounting Type Radial, Through Hole
	Technology Aluminium Electrolytic
	Dimensions 6.3 (Dia.) x 11.2mm
	Height 11.2mm
	Length 11.2mm
	Minimum Operating Temperature -55°C
	Diameter 6.3mm
	Maximum Operating Temperature +105°C
	Lead Pitch 2.5mm
	Lifetime 1000h
	Equivalent Series Resistance 600mΩ
	Series FC-A
	Ripple Current 260mA
	Leakage Current 3 μA
	Polarised Polar
	Tolerance ±20%
	Dissipation Factor 200%
