Product Details

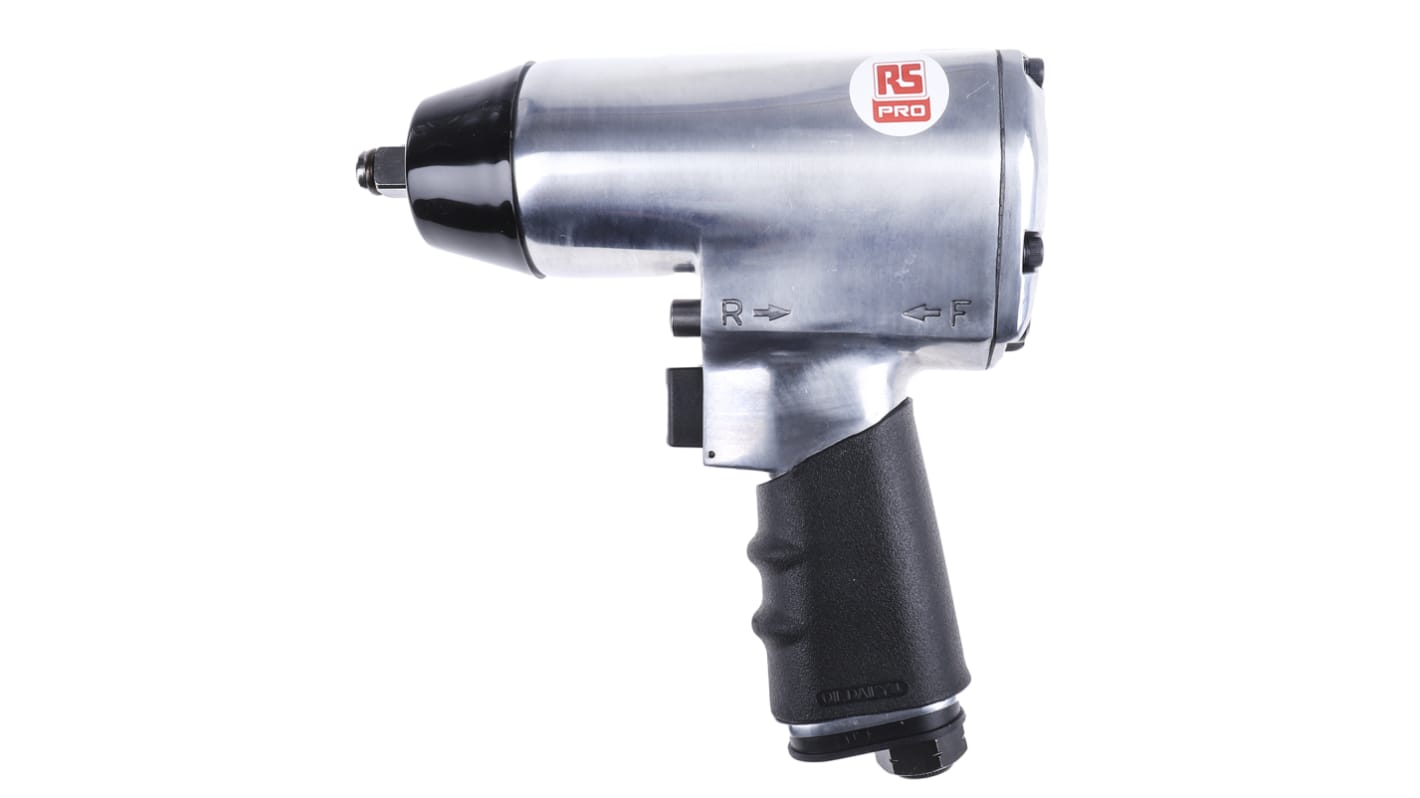

RS PRO APT205 1/2-inch Air Impact Wrench, 7,500 rpm, 540 Nm
The RS PRO APT205 is a general-purpose air impact wrench powered by compressed air. It provides a high torque output with minimal effort. You can use it for heavy-duty applications like loosening extremely tight or stubborn fasteners and fixings.
The air wrench features forward and reverse modes and has a comfortable non-slip grip. A 1/2-inch drive connection means you can use it with your standard 1/2-inch sockets and accessories. The lightweight aluminium body weighs only 2.4 kg, with excellent balance and a rear exhaust that channels used air through the handle. This means it remains comfortable even during extended periods of continuous use.
The versatile air wrench has a variable speed positive action trigger and four forward impact settings. You can change the operation direction intuitively with one hand, using the push-buttons on either side of the device.
The air wrench features forward and reverse modes and has a comfortable non-slip grip. A 1/2-inch drive connection means you can use it with your standard 1/2-inch sockets and accessories. The lightweight aluminium body weighs only 2.4 kg, with excellent balance and a rear exhaust that channels used air through the handle. This means it remains comfortable even during extended periods of continuous use.
The versatile air wrench has a variable speed positive action trigger and four forward impact settings. You can change the operation direction intuitively with one hand, using the push-buttons on either side of the device.
Features and Benefits
Air impact wrench
4 forward impact settings
1/2-inch drive
Maximum torque of 540 Nm
1/4-inch BSP air inlet
Maximum permissible operating pressure of 90 psi / 6.2 bar
Recommended operating pressure of 90 psi / 6.2 bar
Average air consumption of 101.7 litres / 3.6 cubic feet per minute
Speed of 7,500 rpm
Vibration of 1.39 m/s²
Length of 190 mm
Forward and reverse independent power regulator
Sound level of 96.6 dBA
American National Standards Institute Electrostatic Discharge Association S20.20:2014 and British Standard European Norm 61340-5-1:2007 standards for electrostatic control compliant
4 forward impact settings
1/2-inch drive
Maximum torque of 540 Nm
1/4-inch BSP air inlet
Maximum permissible operating pressure of 90 psi / 6.2 bar
Recommended operating pressure of 90 psi / 6.2 bar
Average air consumption of 101.7 litres / 3.6 cubic feet per minute
Speed of 7,500 rpm
Vibration of 1.39 m/s²
Length of 190 mm
Forward and reverse independent power regulator
Sound level of 96.6 dBA
American National Standards Institute Electrostatic Discharge Association S20.20:2014 and British Standard European Norm 61340-5-1:2007 standards for electrostatic control compliant
RS PRO
RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
theyre only given the RS PRO Seal of Approval if were confident of their exceptional quality, which means you can be confident too.
Specifications
Attribute | Value |
---|---|
Air Tool Type | Air Impact Wrench |
Drive Size | 1/2 in |
Maximum Torque | 540Nm |
Air Inlet BSP | 1/4in |
Speed | 7500rpm |
Length | 190mm |
Model Number | APT205 |
