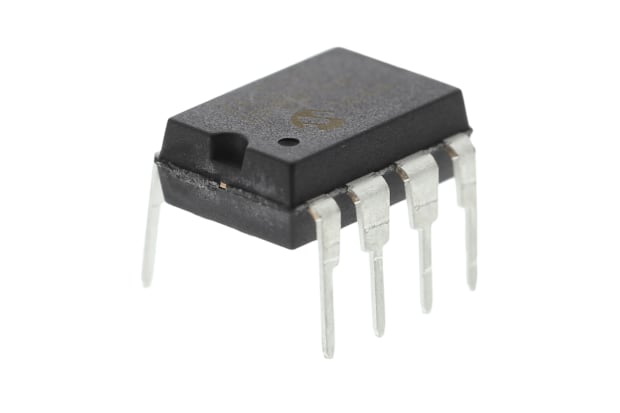

A Complete Guide to Electrically Erasable Programmable Read-Only Memory (EEPROM)

EEPROM offers several key features that make it a versatile and reliable memory technology:

• Non-volatile: EEPROM retains stored data even when power is removed. This makes it suitable for applications where data persistence is essential, such as storing user settings or calibration data.
• Reprogrammable: EEPROM memory can be erased and reprogrammed electrically, allowing for in-system updates and modifications. This flexibility makes it ideal for applications that require data changes or firmware upgrades.
• Byte-Level Addressable: EEPROM allows individual bytes of data to be accessed and modified, providing granular control over data storage and retrieval.
• Low Power Consumption: EEPROM consumes minimal power, especially in standby mode, making it suitable for battery-powered and energy-efficient devices.

Structure

EEPROM consists of a matrix of memory cells, each capable of storing a bit of data (either a 0 or a 1). These cells are organized in rows and columns.

Writing Data

To write data to an EEPROM, electrical signals are applied to the memory cells, altering their state. This programming typically uses a higher-than-normal voltage, which changes the charge on a "floating gate" inside the memory cell. This change in charge represents the binary data (0 or 1).

Erasing Data

Erasing data involves applying a higher voltage to the memory cells, removing the stored charge and returning them to their default state (usually a 1). The memory can then be reprogrammed with new data.

Accessing Data

Reading data from EEPROM is a simple process. The memory cells do not require any special voltage to read, and data can be accessed directly. This allows for quick and random access to any stored value.

Rewriting Cycles

EEPROMs have a limited number of write/erase cycles per cell (typically around 1 million) before they start to degrade. This makes them suitable for applications where data is updated occasionally rather than constantly.

There are two ways to write EEPROMs:

1. Byte-wise: Data can be written or erased one byte at a time.
2. Block-wise: Data is written or erased in larger blocks (e.g., 64 bytes or 256 bytes at a time).

EEPROM vs Flash Memory

• EEPROM

EEPROM and flash memory are both non-volatile memory types, but they differ in how they erase and write data. EEPROM allows for byte-level erasure and programming, making it suitable for applications where individual bytes of data need to be modified, such as storing configuration data or sensor calibration values. It also typically has a higher endurance, meaning it can withstand more write/erase cycles than flash memory.

While EEPROM has a lower storage capacity than flash memory, its high endurance makes it ideal for applications where data is updated frequently.

• Flash Memory

Flash memory erases and writes data in blocks, making it faster for bulk data storage and updates, such as storing firmware, operating systems, or multimedia files. Flash memory is commonly used in applications like USB drives and solid-state drives (SSDs), where large amounts of data need to be stored and accessed quickly.

However, it has a lower endurance than EEPROM and is less suitable for applications with frequent, small data updates.

EEPROM vs Flash ROM

• EEPROM

EEPROM and flash ROM are both non-volatile memory types used to store persistent data. However, EEPROM allows for electrical erasure and reprogramming, making it suitable for applications where data needs to be updated or modified in-system, such as in microcontrollers.

This flexibility is crucial in devices that require firmware upgrades or store user-configurable settings.

• Flash ROM

Flash ROM, while also non-volatile, is typically programmed once and cannot be easily modified after manufacturing. It is often used for storing firmware or program code in devices where updates are infrequent or performed through specialized procedures, like in gaming consoles and networking equipment.

EEPROM vs Static RAM (SRAM) and Dynamic RAM (DRAM)

• EEPROM

EEPROM differs from SRAM and DRAM in its non-volatility. EEPROM retains data even when power is removed, making it suitable for storing persistent information like device settings or calibration data.

In contrast, SRAM and DRAM are volatile memory types, meaning they lose their contents when power is interrupted.

• Static RAM (SRAM)

SRAM is a type of volatile memory that is faster and more power-efficient than DRAM. It is commonly used for CPU caches and embedded systems where speed and low power consumption are critical, enabling fast read/write operations for short-term data storage.

However, SRAM is more expensive and has lower storage density than DRAM.

• Dynamic RAM (DRAM)

DRAM is a volatile memory type that offers high storage density at a lower cost than SRAM. It is commonly used for main memory in computers and other devices where large amounts of data need to be stored.

However, DRAM requires periodic refresh cycles to maintain data integrity and consumes more power than SRAM.

Memory Type	Non-volatile	Programming	Capacity	Endurance	Applications
EEPROM	Yes	Byte-level	Low	High	Config data, sensor calibration, settings storage
Flash Memory	Yes	Block-level	High	Moderate	Firmware, OS storage, multimedia files
Flash ROM	Yes	Block-level	Moderate	Moderate	Gaming consoles, networking equipment
SRAM	No	Fast read/write	Low	N/A	Processor caches, short-term data
DRAM	No	Fast read/write	Moderate	N/A	Main memory in computers
NOR Flash	Yes	Block-level	Moderate	High	Firmware storage, code execution
NAND Flash	Yes	Page/block-level	Very High	Low	SSDs, USB drives, smartphones

EEPROM plays a vital role in modern electronics, enabling devices to store and retain crucial data even when power is off. Its non-volatile nature and ability to be reprogrammed make it essential for various applications.

Australia's adoption of EEPROM is increasing across key sectors like industrial automation, telecommunications, and consumer electronics. This growth is driven by the rising demand for smart devices and systems that require flexible and reliable data storage.

As Australia continues to invest in the Internet of Things (IoT), smart infrastructure, and advanced electronics, the demand for EEPROM is expected to rise further. EEPROM's ability to store configuration data, calibration parameters, and sensor readings makes it a crucial component in these applications, enabling devices to operate autonomously and efficiently.
