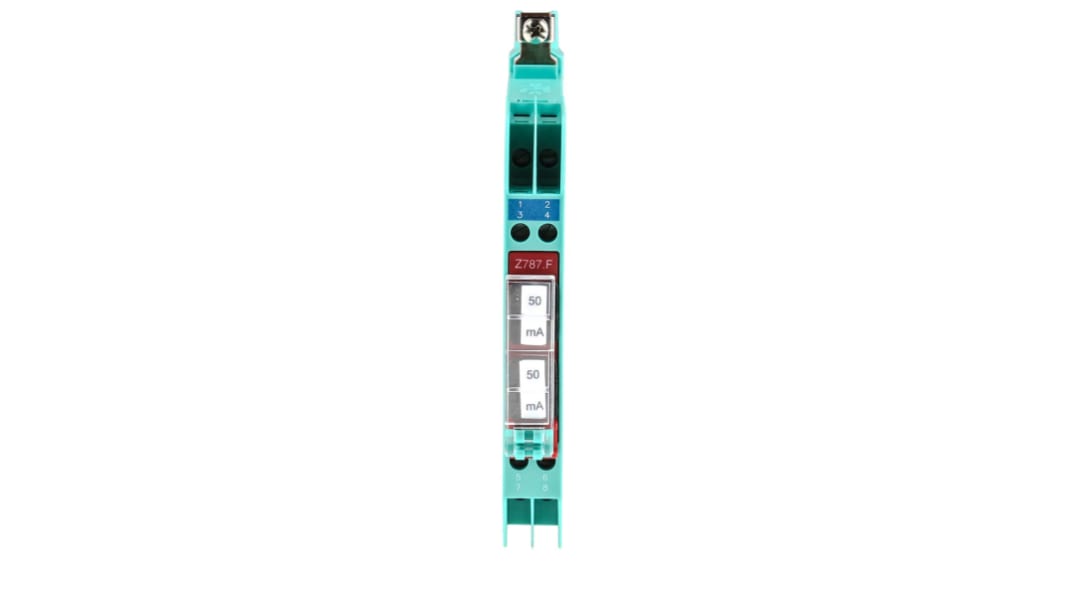

Pepperl + Fuchs 2 Channel Zener Barrier, ATEX
- RS Stock No.:
- 793-4290
- Mfr. Part No.:
- 261544
- Brand:
- Pepperl + Fuchs
9 In Global stock for delivery within 10 working day(s)
Added
Price (ex. GST) Each
$499.69
(exc. GST)
$549.66
(inc. GST)
| Units | Per unit |
| 1 + | $499.69 |
- RS Stock No.:
- 793-4290
- Mfr. Part No.:
- 261544
- Brand:
- Pepperl + Fuchs
Technical data sheets
Legislation and Compliance
RoHS Status: Not Applicable
- COO (Country of Origin):
- ID
Product Details
P&F Dual Channel Zener Diode Barriers
Using a dual channel barrier impedes a direct grounding of the intrinsically safe circuit. The ground is only made in the event of a failure, if the zener diodes conduct. This circuit also suppresses influences of external circuits.
Typical application - thermocouples
Certificate No.
BAS 01 ATEX 7005
Group and Category
[EEx ia] IIC Class 1, Div1, Groups A-G
Isolation Barriers
Pepperl+Fuchs shunt zener diode barriers are for use as safety interfaces between intrinsically safe and non-intrinsically safe circuits. They are manufactured from Makrolon® and designed to conduct electrical signals - in either direction - between safe and hazardous areas and to limit the amount of energy which can be transferred from a safe to a hazardous area in the event of fault conditions occurring in the safe area. All systems shown are licensed for [EEx ia] IIC Class 1, Div1, Groups A-G
Specifications
Attribute | Value |
|---|---|
| Number of Channels | 2 |
| Module Type | Zener Barrier |
| Barrier Type | Zener Barrier |
| Maximum Voltage | 250V |
| Hazardous Area Certification | ATEX |
| Safety Current Resistance | 341Ω |
| Minimum Operating Temperature | -20°C |
| Maximum Operating Temperature | +60°C |
| Maximum Current | 93mA |
| Supply Voltage | 27V dc |
| Safety Current Maximum | 93mA |
| Safety Voltage Maximum | 250 V |
| Operating Temperature Range | -20 → +60°C |
