Diodes Inc, 20V Zener Diode 5% 500 mW SMT 2-Pin SOD-123

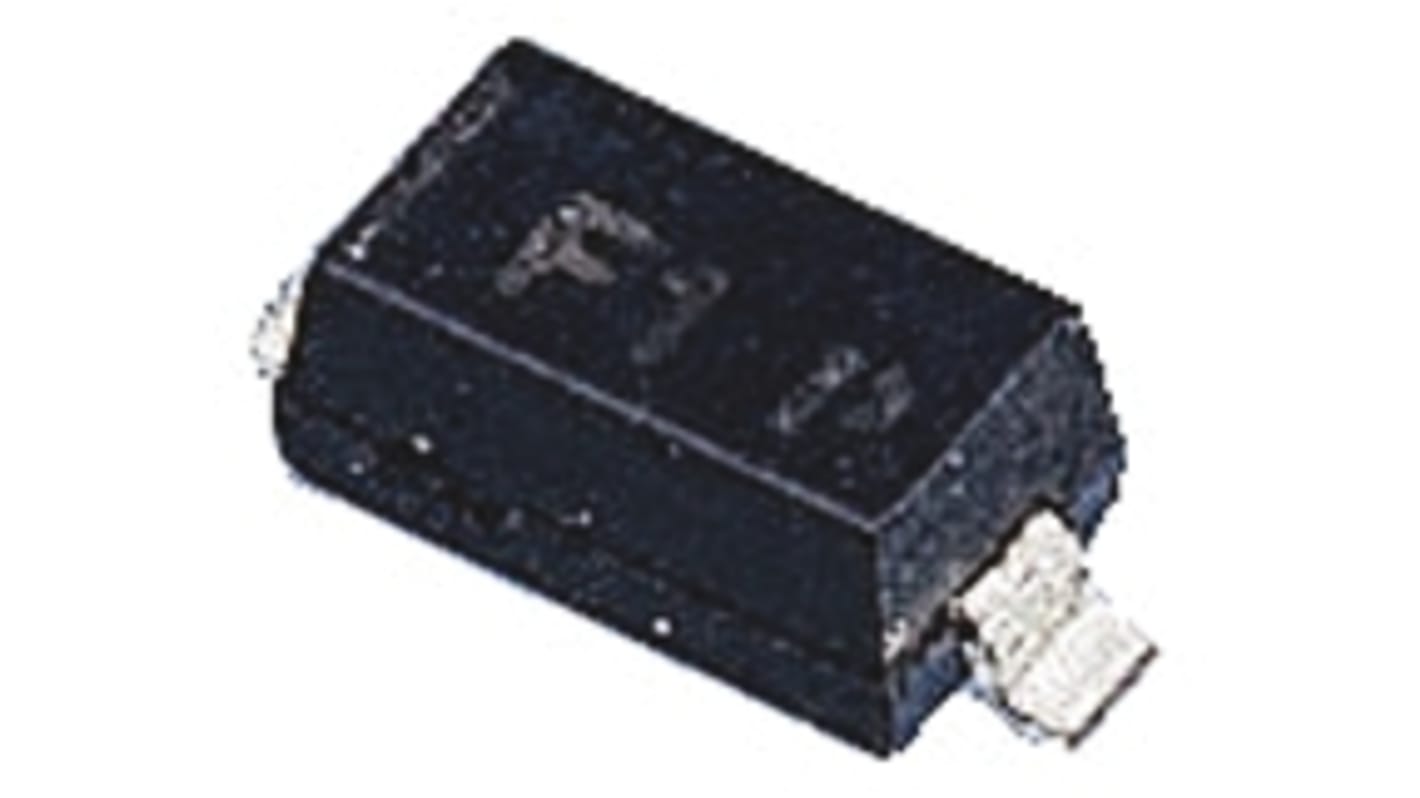

This image is representative of the product range

Bulk discount available

Subtotal 800 units (supplied on a reel)**

$66.40

(exc. GST)

$72.80

(inc. GST)

16400 In Global stock for delivery within 10 working day(s)*

* Delivery dates may change based on your chosen quantity and delivery address.

Real time qty checker

Units	Per unit
800 - 1400	$0.081
1600 +	$0.079

**price indicative

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	DiodesZetex
	Nominal Zener Voltage	20V
	Diode Configuration	Single
	Mounting Type	Surface Mount
	Number of Elements per Chip	1
	Maximum Power Dissipation	500 mW
	Package Type	SOD-123
	Zener Type	General Purpose
	Zener Voltage Tolerance	5%
	Pin Count	2
	Test Current	6.2mA
	Maximum Zener Impedance	25Ω
	Maximum Reverse Leakage Current	100nA
	Dimensions	2.85 x 1.7 x 1.35mm
	Minimum Operating Temperature	-65 °C
	Maximum Operating Temperature	+150 °C

	Select all
	Brand DiodesZetex
	Nominal Zener Voltage 20V
	Diode Configuration Single
	Mounting Type Surface Mount
	Number of Elements per Chip 1
	Maximum Power Dissipation 500 mW
	Package Type SOD-123
	Zener Type General Purpose
	Zener Voltage Tolerance 5%
	Pin Count 2
	Test Current 6.2mA
	Maximum Zener Impedance 25Ω
	Maximum Reverse Leakage Current 100nA
	Dimensions 2.85 x 1.7 x 1.35mm
	Minimum Operating Temperature -65 °C
	Maximum Operating Temperature +150 °C
