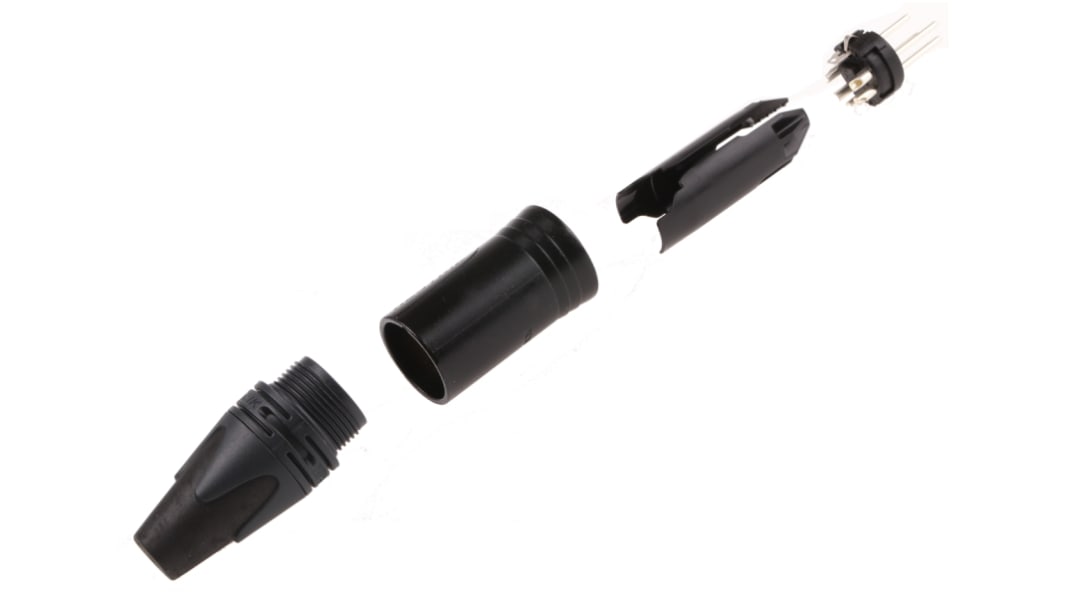

Neutrik 5 Way Cable Mount XLR Connector, Male, Silver over Nickel Plated Contacts, 50 V

  • RS Stock No. 166-529
  • Mfr. Part No. NC5MXX-BAG
  • Manufacturer Neutrik
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): LI
Product Details

XX Series XLR Black Chrome Cable Connectors

Low contact resistance through the cage design of the female contact
Female contact with a solder barrier to prevent solder running into the contact mating area
Female connector with solid metal latch
Strain relief provides a high pull-out force making assembly easier and faster

Mechanical
Connector bodies Diecast zinc/aluminium
Insulator Polyester/Nylon
Contacts Copper alloy
Plating Hard silver
Operating temperature -30°C → +80°C
Insertion force ≤ 20 N
Withdrawal force ≤ 10 N
Electrical
Current per contact 3-way 16A, 4-way 10A
  5- & 6-way 7.5 A
  7-way 6 A
Rated voltage 250 V a.c.
Test voltage 1500 V a.c.
Contact resistance ≤ 3 mΩ
Insulation resistance ≥ 109Ω

Warning

  • Not to be used as mains connectors
Specifications
Attribute Value
Number of Contacts 5
Gender Male
Mounting Type Cable Mount
Body Orientation Straight
Contact Plating Silver over Nickel
Housing Material Nylon
Termination Method Solder
Current Rating 7.5A
Voltage Rating 50 V
Contact Material Brass
Minimum Operating Temperature -30°C
Maximum Operating Temperature +80°C
314 In stock for delivery within 5 working day(s)
Price (ex. GST) Each
$ 13.20
(exc. GST)
$ 14.52
(inc. GST)
units
Per unit
1 - 14
$13.20
15 - 49
$12.88
50 - 99
$12.21
100 +
$11.48
