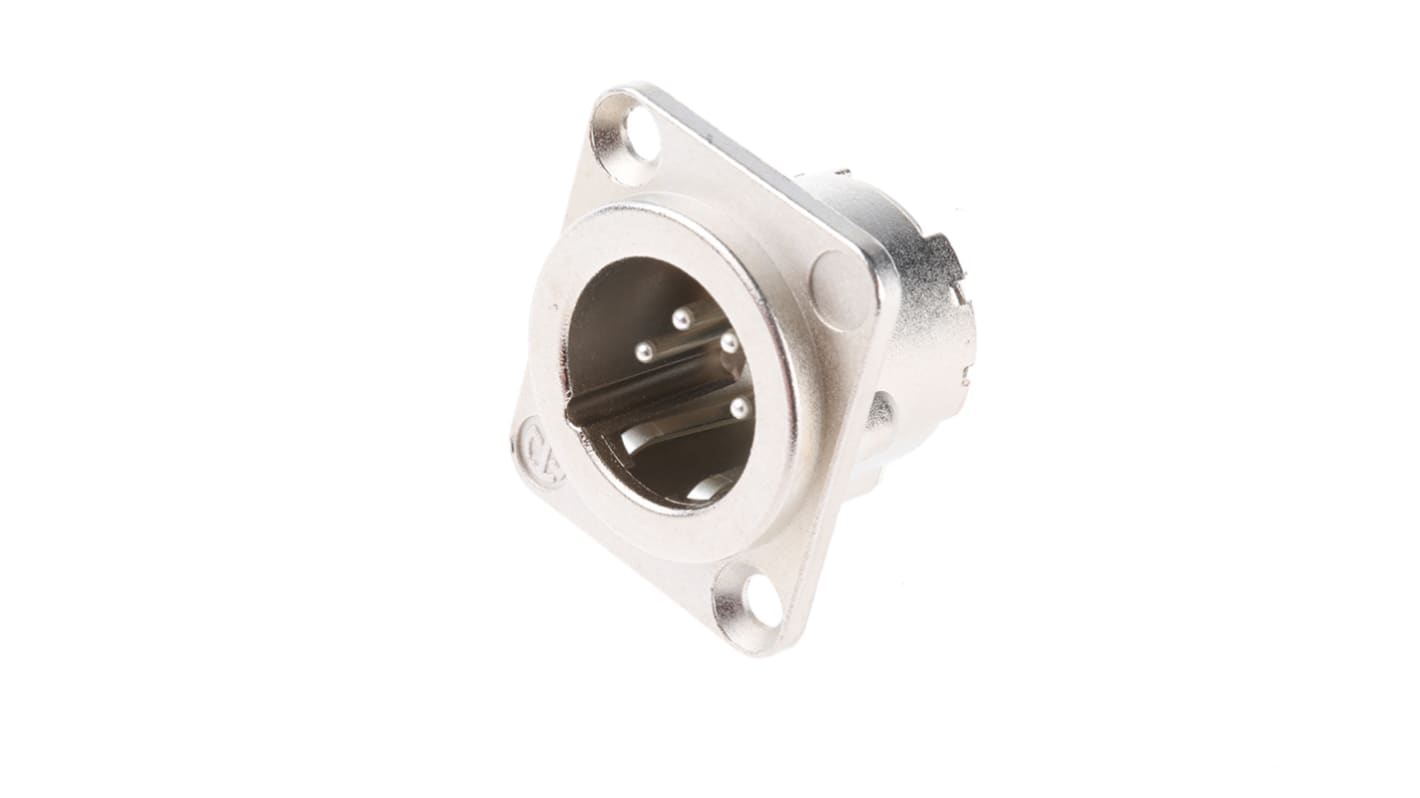

Neutrik 4 Way Panel Mount XLR Connector, Male, Silver over Nickel Plated Contacts, 50 V

  • RS Stock No. 166-210
  • Mfr. Part No. NC4MD-LX
  • Manufacturer Neutrik
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): LI
Product Details

DLX Series Chassis Connectors

All metal housing gives greater overall RF protection and shielding
Duplex ground contact improves contact integrity between chassis and cable connector

Warning

  • Not to be used as mains connectors
Specifications
Attribute Value
Number of Contacts 4
Gender Male
Mounting Type Panel Mount
Body Orientation Straight
Contact Plating Silver over Nickel
Housing Material Nylon
Termination Method Solder
Current Rating 10A
Voltage Rating 50 V
Contact Material Brass
Minimum Operating Temperature -30°C
Maximum Operating Temperature +80°C
199 In stock for delivery within 5 working day(s)
Price (ex. GST) Each
$ 6.71
(exc. GST)
$ 7.38
(inc. GST)
units
Per unit
1 - 14
$6.71
15 - 49
$6.55
50 - 99
$6.22
100 +
$5.84
