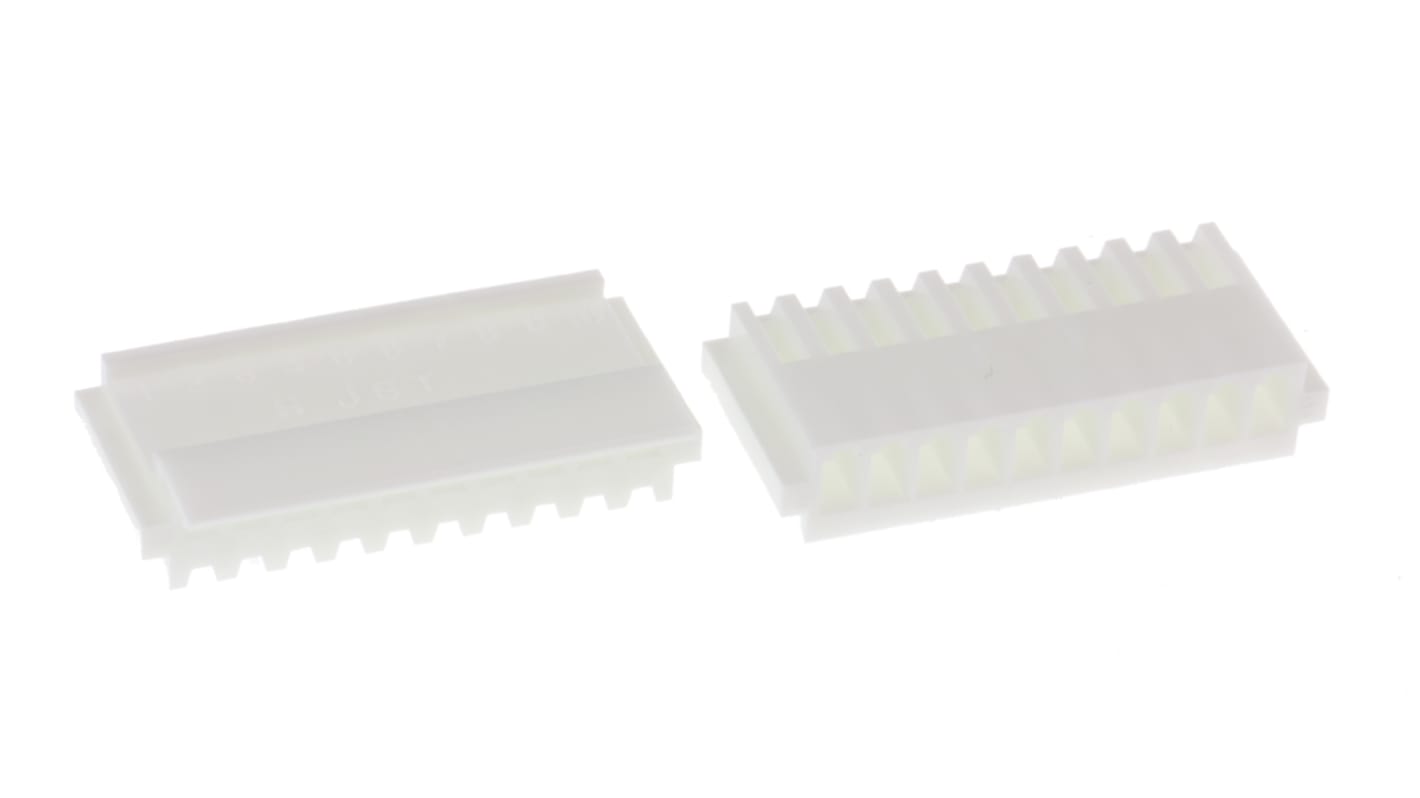

JST, NH Female Connector Housing, 2.5mm Pitch, 10 Way, 1 Row
- RS Stock No.:
- 490-5628
- Mfr. Part No.:
- H10P-SHF-AA
- Brand:
- JST
200 In AU stock for next working day delivery
1650 In Global stock for delivery within 5 working day(s)
Price (ex. GST) Each (In a Pack of 10)
Was $0.472
You pay
$0.401
(exc. GST)
$0.441
(inc. GST)
| units | Per unit | Per Pack* |
| 10 - 240 | $0.401 | $4.01 |
| 250 - 990 | $0.399 | $3.99 |
| 1000 - 4990 | $0.395 | $3.95 |
| 5000 + | $0.37 | $3.70 |
| *price indicative | ||
- RS Stock No.:
- 490-5628
- Mfr. Part No.:
- H10P-SHF-AA
- Brand:
- JST
Legislation and Compliance
- COO (Country of Origin):
- JP
Product Details
JST NH Series Socket Housing
The NH Series of 2.5mm pitch socket housing from JST is used to connect wires to printed boards. Three different header configurations are available: top, side and bottom entry depending upon your requirements.
Features and Benefits
• 2.5mm pitch
• Natural (white) colour
• Wire to board configurations and fittings
• Highly reliable
• Double sided contact to protect against mismating
• Superior folded beam construction
• Natural (white) colour
• Wire to board configurations and fittings
• Highly reliable
• Double sided contact to protect against mismating
• Superior folded beam construction
2.5mm Wire to Board, JST NH Series
Specifications
Attribute | Value |
|---|---|
| Number of Contacts | 10 |
| Number of Rows | 1 |
| Pitch | 2.5mm |
| Gender | Female |
| Series | NH |
| For Use With | Disconnectable Crimp Connector |
| Body Orientation | Straight |
| Length | 28.7mm |
| Width | 6.4mm |
| Housing Material | Nylon |
