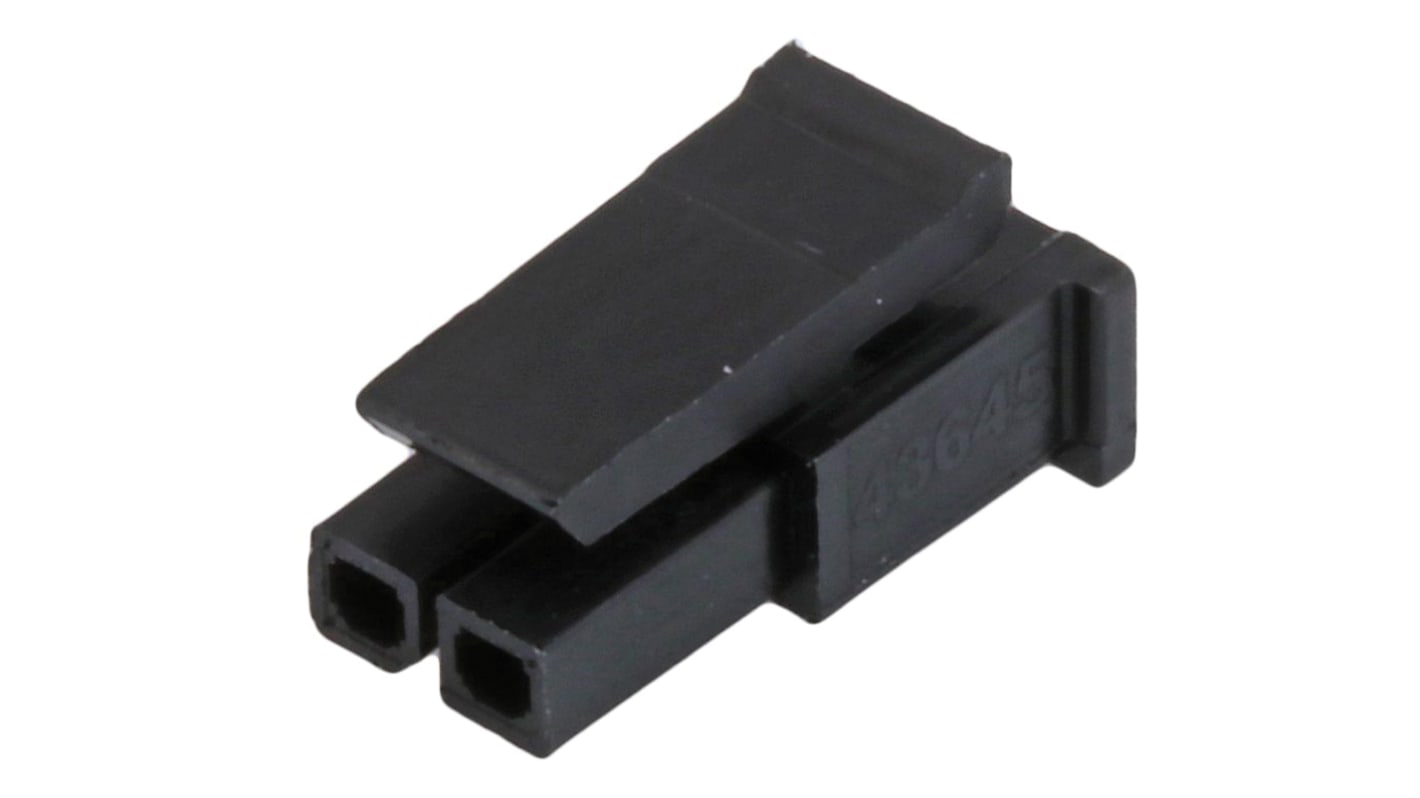

2 way single row receptacle,3mm pitch

  • RS Stock No. 189-1346
  • Mfr. Part No. 43645-0200
  • Manufacturer Molex
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): US
Product Details

Reduction in engagement and disengagement forces
Supports ergonomics and user-friendly interface
The plug’s TPA retainer mates with the existing Micro-Fit TPA Receptacle to prevent terminal back-outs in wire-to-wire applications
Prevents end product failure. Ensures both components provide a reliable connection
10.0A RMF terminal available
Delivers higher power with existing Micro-Fit components. Enables running changes to higher amperage
Terminal position assurance (TPA) feature with integrated secondary lock
Eliminates terminal back-outs resulting from improper assembly
Applications
Consumer
Washers and dryers
Freezers
Gaming machines
Printers
Refrigerators
Scanners
Security systems
Vending machines
White goods
Telecommunications/Networking
Routers and switches
Servers
Storage
Medical
Diagnostic equipment
Patient monitors
Sustainable Energy
Solar power
Automotive
Harness manufacturers
Non-sealed applications
Inside devices

Specifications
Attribute Value
Number of Contacts 2
Number of Rows 1
Pitch 3mm
Gender Female
Mounting Type Cable Mount
Series Micro-Fit
For Use With 43030 Micro-Fit 3.0 Female Crimp Terminals, 45773 Micro-Fit 3.0 Female Crimp Terminals, 46235 Micro-Fit RMF Female Crimp Terminals
Length 8.28mm
Width 11.56mm
Housing Material Polyamide
On back order for despatch 06/07/2020, delivery within 5 working days from despatch date.
Price (ex. GST) Each (In a Bag of 5000)
$ 0.221
(exc. GST)
$ 0.243
(inc. GST)
units
Per unit
Per Bag*
5000 - 5000
$0.221
$1,105.00
10000 - 10000
$0.21
$1,050.00
15000 +
$0.196
$980.00
*price indicative
