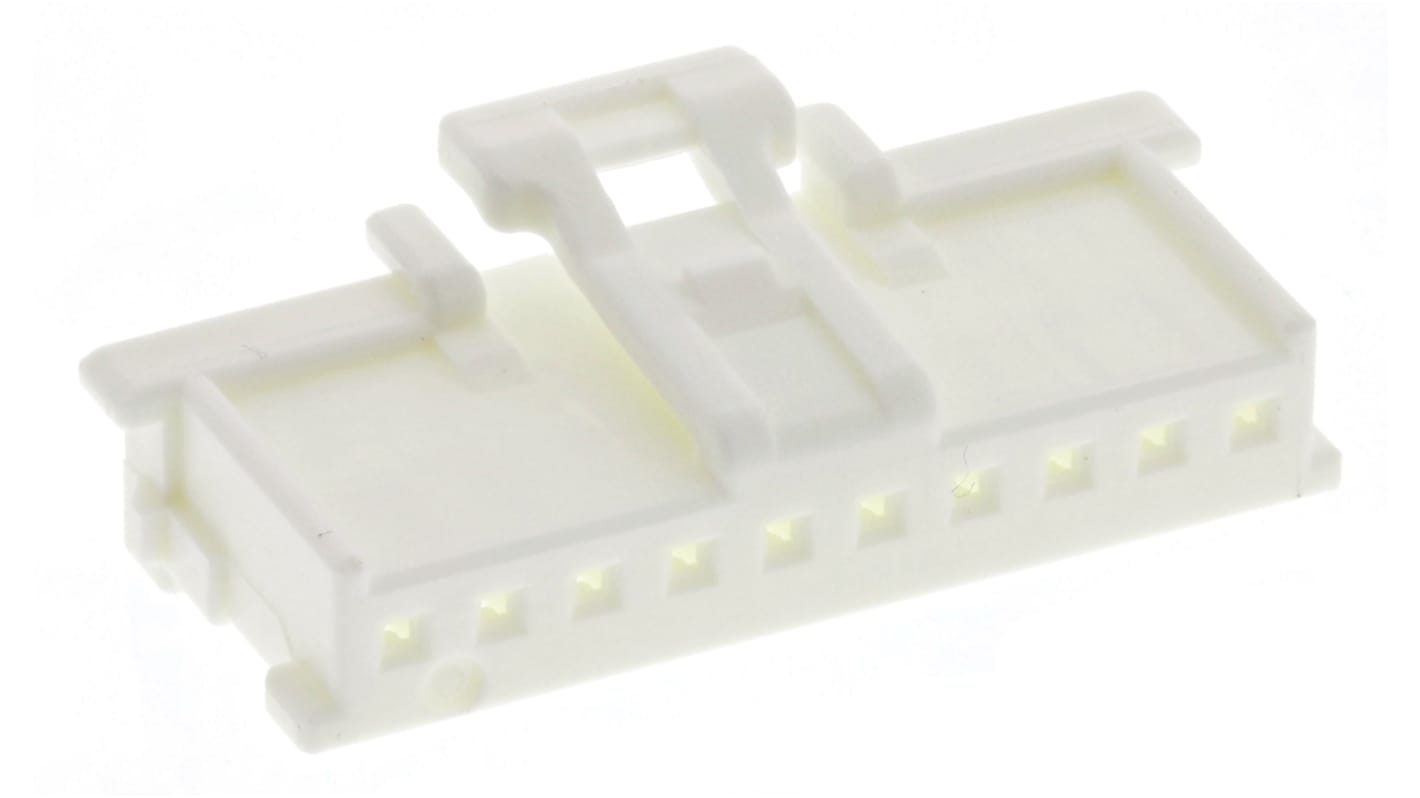

Molex, MicroClasp Female Connector Housing, 2mm Pitch, 10 Way, 1 Row
- RS Stock No.:
- 187-958
- Mfr. Part No.:
- 51382-1000
- Brand:
- Molex
Stock check temporarily unavailable - call for stock availability
Added
Price (ex. GST) Each (In a Pack of 10)
$0.619
(exc. GST)
$0.681
(inc. GST)
| Units | Per unit | Per Pack* |
| 10 - 190 | $0.619 | $6.19 |
| 200 - 740 | $0.60 | $6.00 |
| 750 - 2990 | $0.581 | $5.81 |
| 3000 - 5990 | $0.568 | $5.68 |
| 6000 + | $0.555 | $5.55 |
| *price indicative | ||
- RS Stock No.:
- 187-958
- Mfr. Part No.:
- 51382-1000
- Brand:
- Molex
Legislation and Compliance
- COO (Country of Origin):
- JP
Product Details
Single Row Receptacle Housing
Approvals
UL 94V-0
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
2.0mm Wire to Board - Molex MicroClasp™ Range
MicroClasp™ 2.00mm pitch Wire to Board system provides space savings and easy mating/unmating compared to similar 2.00mm and 2.50mm pitch Wire to Board systems. MicroClasp™ includes a unique inner positive lock that provides latch protection, secure retention and an audible mating click. The terminal design of the MicroClasp™ series offers low insertion and withdrawal forces and is able to carry 3.0 A current in a compact 2.00mm pitch design.
2.00mm (0.079”) Pitch
Inner Positive Lock
Low insertion force terminal design
Two-point contact design
High-current contact design
Housing lance system
PCB space savings
Latch protection/secure mating/audible “click”
Easy mating/unmating
Carry up to 3.0A
Terminal protection and secure retention
Inner Positive Lock
Low insertion force terminal design
Two-point contact design
High-current contact design
Housing lance system
PCB space savings
Latch protection/secure mating/audible “click”
Easy mating/unmating
Carry up to 3.0A
Terminal protection and secure retention
Specifications
Attribute | Value |
|---|---|
| Number of Contacts | 10 |
| Number of Rows | 1 |
| Pitch | 2mm |
| Gender | Female |
| Mounting Type | Cable Mount |
| Series | MicroClasp |
| For Use With | MicroClasp Wire-to-Board Receptacle |
| Body Orientation | Straight |
| Length | 23.4mm |
| Width | 6.95mm |
| Housing Material | Nylon |
