TANGO24/1M/SMAM/S/RP/17 Siretta - Puck WiFi Antenna, Through Hole/Bolted Mount, (2400 2483 GHz)

  • RS Stock No. 124-8718
  • Mfr. Part No. TANGO24/1M/SMAM/S/RP/17
  • Manufacturer Siretta
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): TW
Product Details

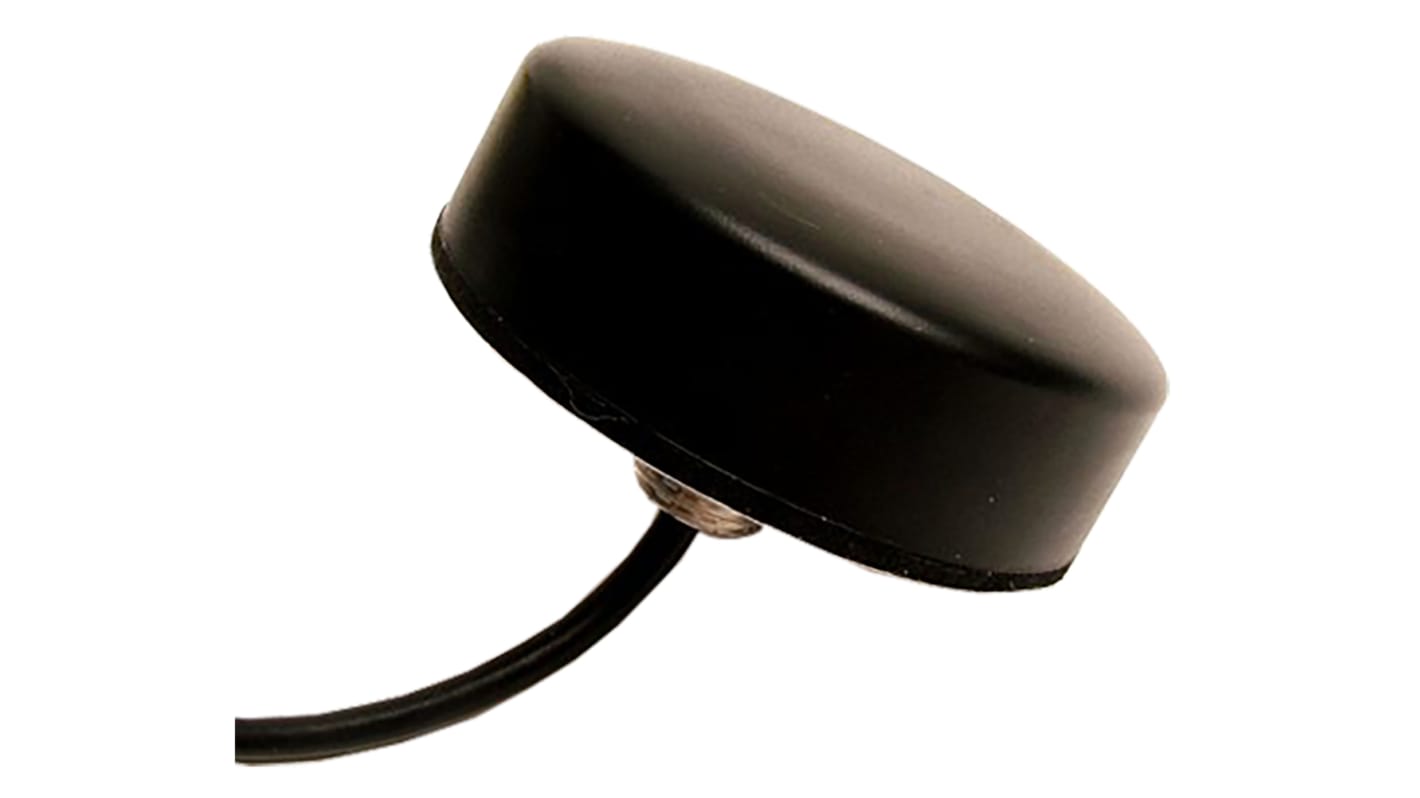

TANGO 24 - IP67 2.4 GHz WiFi/WLAN/Bluetooth/ZigBee Puck Antenna, Siretta

The Tango 24 puck shaped antenna is tuned to 2.4 GHz WiFi/WLAN/Bluetooth/ZigBee frequencies. Mountable internally or externally using its M12 screw and its IP67 rating ensures it is protected whatever the weather. The Tango 24 achieves a peak gain of 3 dBi maximising the range of WiFi modems, Bluetooth or ZigBee signals.

Supplied with 1 metre RG174 coaxial cable with an SMA male connector.

Operating Temperature: -30 to +60˚C
Impedance: 50 Ω
Gain: 3 dBi
VSWR: ≤1.5
Polarisation: Vertical
Radiation: Omnidirectional
Dimensions: 40 mm (diameter) x 15 mm (height, excluding screw thread)

Operating Frequencies
WiFi/WLAN/Bluetooth/ZigBee: 2.4 GHz to 2.5 GHz

2.4GHz Antennas

Specifications
Attribute Value
Internal/External External
RF Protocols WiFi
Antenna Physical Form Puck
Supported Frequency Bands 2400 2483 GHz
Antenna Mounting Type Through Hole/Bolted
Connector Type SMA RP
Gain 3dBi
Antenna Directivity Omnidirectional
Connector Gender Male
Series TANGO 24
6 In stock for delivery within 1 working day(s)
Price (ex. GST) Each
$ 43.41
(exc. GST)
$ 47.75
(inc. GST)
units
Per unit
1 +
$43.41
