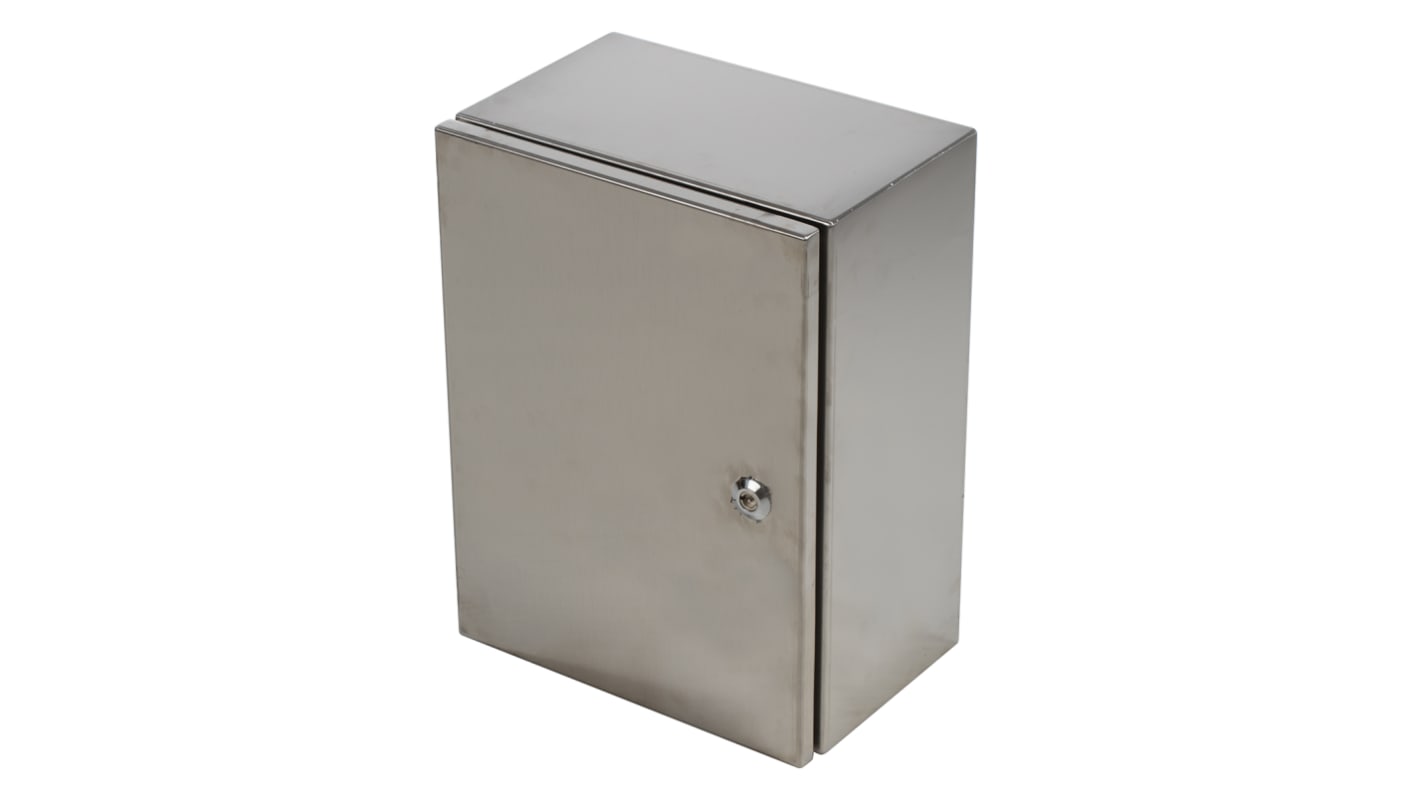

ABB SRX, 304 Stainless Steel Wall Box, IP66, 200mm x 400 mm x 300 mm

  • RS Stock No. 799-0559
  • Mfr. Part No. SRN4320X
  • Manufacturer ABB
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): IT
Product Details

ABB SRX Enclosures

The range of ABB stainless steel, SRX enclosures can be used indoors or outdoors and are designed to offer a high standard of protection and strength as well as a very high level of hygiene.

Features and Benefits

• Easy to mount to the wall or floor
• Door can be hinged on the left or the right side
• IP66 protection meaning that they have protection from dust and powerful water jets
• IK10 Protected against 20 Joules impact. Equivalent to impact of 5 kg mass dropped from 400 mm above impacted surface
• Made from 304 stainless steel making the enclosures resistant to oxidation and corrosion
• Chassis plate supplied
• Normal operating conditions -25 to +55°C

Typical Applications

The SRX wall mounted enclosures are ideal for using in environments such as the food, chemical and pharmaceutical industry and hospital sectors. The enclosures are also a great choice for constructing small and medium sized switchboards for automation and distribution.

Note

Enclosures do not have cable entry flanges or an inner door.

Standards

IEC EN 62208, IEC EN 60439-1, IEC 61439-1-2
Certifications UL (Underwriters Laboratories) Ex

The SRN4320X enclosure has external dimensions of 400mm x 300mm x 200mm.

Supplied with

A blind door and a galvanised sheet metal internal mounting plate.

Specifications
Attribute Value
External Height 400 mm
External Width 300 mm
External Depth 200mm
Body Material 304 Stainless Steel
Transparent Door No
IP Rating IP66
Chassis Plate Yes
Door Lock Type Key
Gland Plate No
Colour Unpainted
Series SRX
RAL Code RAL 7035
Fixing Kit No
Internal Mounting Type Panel
External Mounting Type Bracket
2 : Next working day (AU stock)
2 : 5 working days (Global stock)
Price (ex. GST) Each
$ 714.51
(exc. GST)
$ 785.96
(inc. GST)
units
Per unit
1 - 4
$714.51
5 +
$702.01
