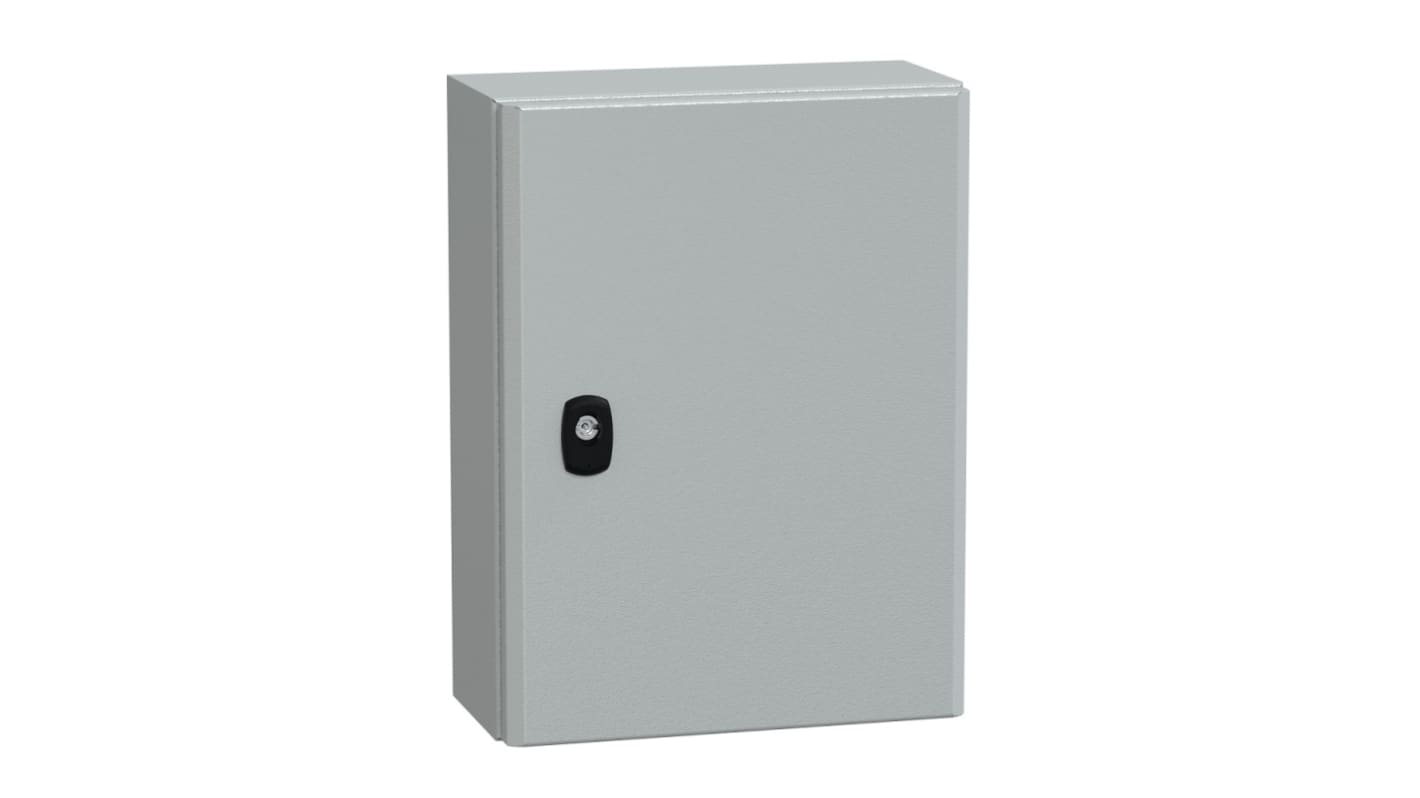

Schneider Electric Spacial S3D, Steel Wall Box, IP66, 150mm x 400 mm x 300 mm

Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): FR
Product Details

Spacial S3D Wall Boxes with Chassis Plate

The Schneider Electric Spacial S3D steel wall mounting enclosure is made up of a one-piece folded and welded body with a double plate thickness gutter shaped front profile. The Spacial S3D series has perforated rails on door, with drilled diameter of 4.2 mm on 25 mm pitch: (enclosures from an External Height of 400 mm have 2 vertical rails and enclosures from External Width of 800 mm have 2 horizontal and vertical rails).

Features and Benefits

• IP66 protection meaning the enclosures are dust tight and protect against powerful jets of water and heavy seas
• External mechanical impact resistance of IK10 (protected against a 5kg object dropped from 20cm)
• Cable gland plate with grid pattern to facilitate drilling and assure maximum access supplied
• High UV resistance
• Aluminium hinge pins
• Door can be removed and reversed to open left or right
• Door can be opened up to 120°
• Wall mounting brackets are fixed from the outside
• Double thickness 20mm return fold doors for excellent rigidity
• Polyurethane door seal
• The handle supplied has two functions as operating key and as tool for removal of stud protective caps

NSYS3D4315P Wall Box

What are the external dimensions?

NSYS3D4315P has external dimensions of 300 x 400 x 150 mm.

What type of lock does it have?

The enclosure has a 3mm double-bar lock.

What is supplied?

The NSYS3D4315P is supplied with a single piece body, plain front face door, cable gland plate and a 3mm double-bar lock.

Standards

Compliance with enclosure standards IEC 62208, UL, CUL, BV, DNV and GL.

Specifications
Attribute Value
External Height 400 mm
External Width 300 mm
External Depth 150mm
Body Material Steel
Transparent Door No
IP Rating IP66
Chassis Plate Yes
Door Lock Type Double Bar
Gland Plate Yes
Colour Grey
RAL Code RAL 7035
Series Spacial S3D
Fixing Kit Yes
External Mounting Type Bracket
Internal Mounting Type Panel
85 In stock for delivery within 5 working day(s) (Global Stock)
Price (ex. GST) Each
Was $315.32
$ 267.92
(exc. GST)
$ 294.71
(inc. GST)
units
Per unit
1 - 2
$267.92
3 - 4
$258.54
5 - 7
$253.51
8 - 11
$243.07
12 +
$231.74
