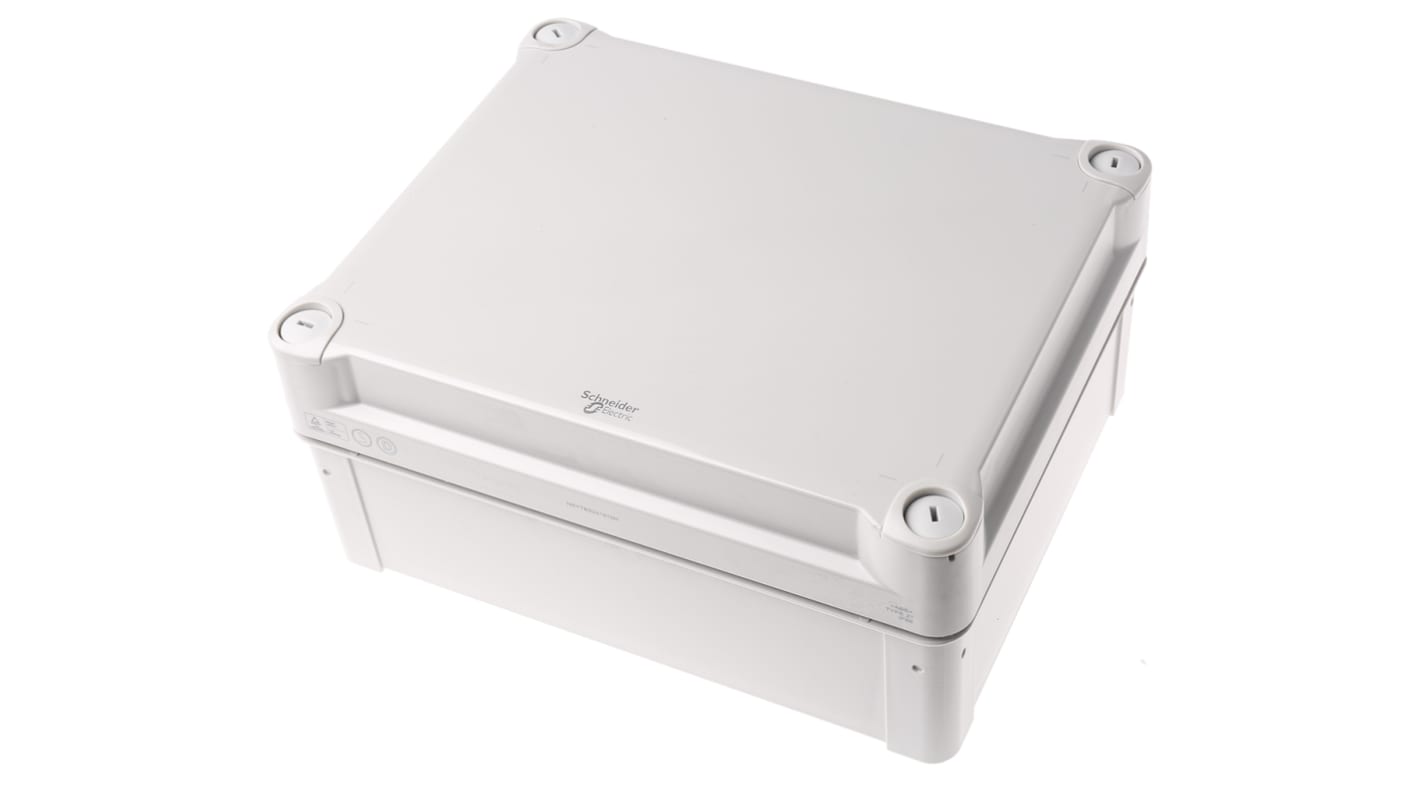

Schneider Electric ABS Wall Box IP66, 107mm x 241 mm x 194 mm

Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): HU
Product Details

Schneider Electric Thalassa TBS Enclosures

The Thalassa TBS series from Schneider Electric is a range of multifunction wall mounted, insulating, industrial enclosures that are easy to install using a flat screwdriver. The ABS enclosures provide 3 wall-mounting methods: directly by the holes on the base, by channels outside the sealed area or by fixing wrap-over clamps.

Features and Benefits

• IP66 protection meaning the enclosures are dust tight and protect against powerful jets of water and heavy seas
• External mechanical impact resistance of IK07 (joules 2) meaning the wall box is protected against a 500 g object dropped from 40 cm in height
• Mounting studs on the cover
• Cover locking by 4 plastic captive screws
• Adaptable hinges on the 20 mm and 40 mm covers
• Usage temperature of -25° C to +60° C
• Halogen free
• Self-extinguishing provides you with the added safety regarding fire protection
• Only 1 tool required, a flat screwdriver

Typical Applications

The range of Thalassa TBS enclosures are suitable for the protection of small size components that require little intervention or maintenance.

NSYTBS241910H Wall Mounting Enclosure

What are the external dimensions?

NSYTBS241910H has external dimensions of 241 x 194 x 107 mm.

What is supplied?

The NSYTBS241910H enclosure is supplied with a 1 body, 1 cover and 4 cover screws.

Can the wall box be used outside?

The NSYTBS241910H has an Ingress Protection rating of IP66 so can be used inside or outside.

Standards

IEC 62208 which is the reference standard regarding empty enclosures for device assemblies for protection and manoeuvre to low voltage

Specifications
Attribute Value
External Height 241 mm
External Width 194 mm
External Depth 107mm
Body Material ABS
Transparent Door No
IP Rating IP66
Chassis Plate No
Door Lock Type Screw
Gland Plate No
Colour Grey
Series Thalassa TBS
RAL Code RAL 7035
Fixing Kit No
External Mounting Type Knockouts
Internal Mounting Type Mounting Bosses
5 : Next working day (AU stock)
56 : 5 working days (Global stock)
Price (ex. GST) Each
$ 73.09
(exc. GST)
$ 80.40
(inc. GST)
units
Per unit
1 - 4
$73.09
5 - 9
$69.43
10 - 19
$67.51
20 - 29
$63.54
30 +
$59.29
