- RS Stock No.:
- 289-6099
- Mfr. Part No.:
- CAB PC 604022 G3B CABINET
- Brand:
- Fibox
On back order for despatch 09/07/2024, delivery within 10 working days from despatch date.
Added
Price (ex. GST) Each
$514.98
(exc. GST)
$566.48
(inc. GST)
Units | Per unit |
1 + | $514.98 |
Alternatives
This product is not currently available. Here are our alternative recommendations.
- RS Stock No.:
- 289-6099
- Mfr. Part No.:
- CAB PC 604022 G3B CABINET
- Brand:
- Fibox
Technical data sheets
Legislation and Compliance
RoHS Status: Not Applicable
- COO (Country of Origin):
- FI
Product Details

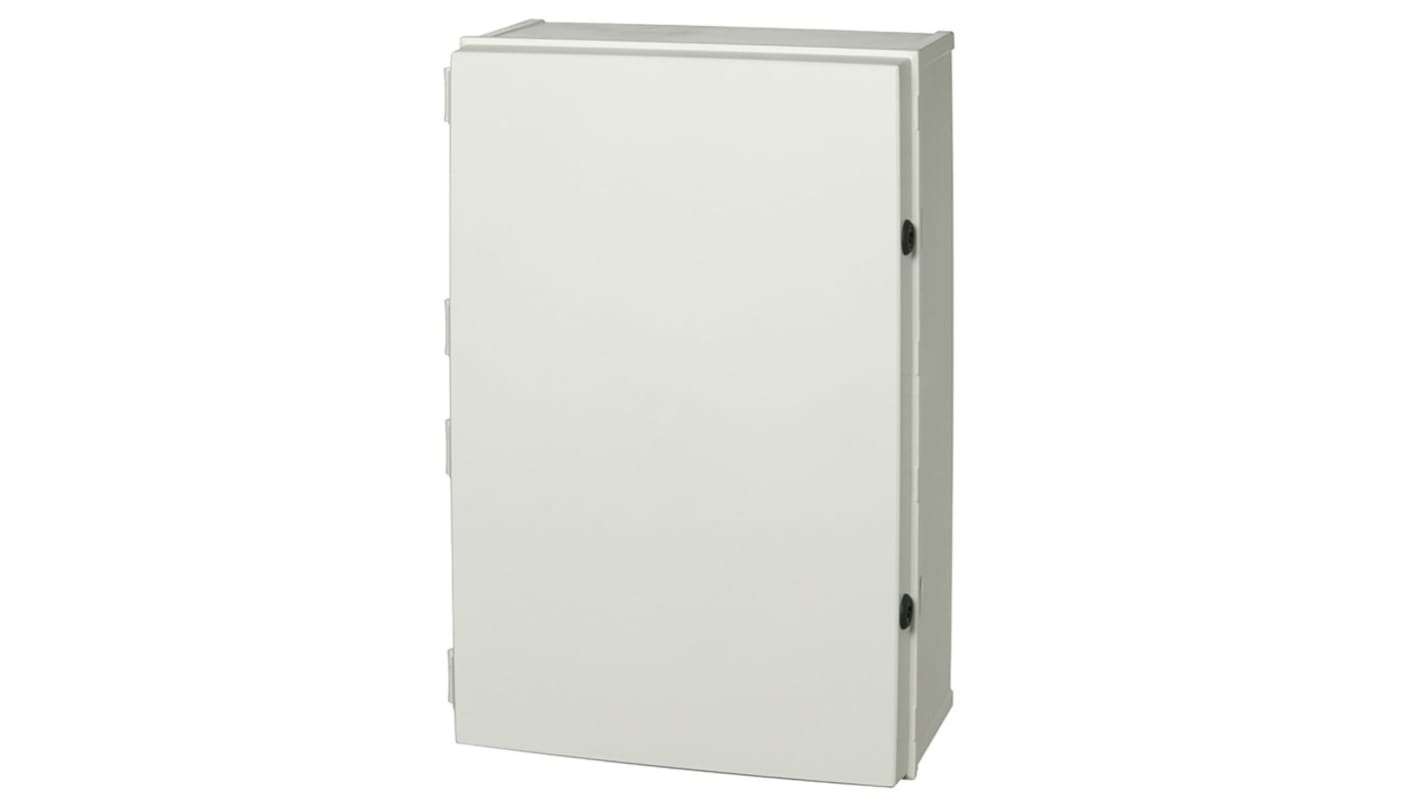

Fibox CAB PC Wall Mount Enclosures
High impact resistant, glass filled polycarbonate enclosures offering a viable and cost effective alternative to steel wall mounting enclosures. The material used is Halogen free and is flame tested to UL94-V2 (self-extinguishing).
Features and Benefits
Polycarbonate light grey RAL 7035
Polyurethane gasket
IP65 and IK08 protection
Electrically insulated
Halogen free
UV resistant
Operating temperature range: -40°C to +80°C
Polyurethane gasket
IP65 and IK08 protection
Electrically insulated
Halogen free
UV resistant
Operating temperature range: -40°C to +80°C
Accessories (ordered separately)
Swing doors/front plates, aluminium, 1.5 mm thick
Mounting plates, galvanised steel, 1.5 mm thick
Swing door kit for aluminium front plates. Contains a pair of hinges (in kit form). Each kit is for one swing door and comes with full installation instructions
Wall Brackets, 4 pieces, includes screws
Mounting plates, galvanised steel, 1.5 mm thick
Swing door kit for aluminium front plates. Contains a pair of hinges (in kit form). Each kit is for one swing door and comes with full installation instructions
Wall Brackets, 4 pieces, includes screws
Standards
EN 60529, EN 62262.
Approvals
8888
Specifications
Attribute | Value |
---|---|
External Height | 600 mm |
External Width | 400 mm |
External Depth | 220mm |
Body Material | Polycarbonate |
Transparent Door | No |
IP Rating | IP65 |
Chassis Plate | No |
Door Lock Type | Key |
Gland Plate | No |
Colour | Grey |
Series | CAB PC |
External Mounting Type | Bracket |
IK Rating | IK08 |
Internal Mounting Type | Panel |
Fixing Kit | Yes |
