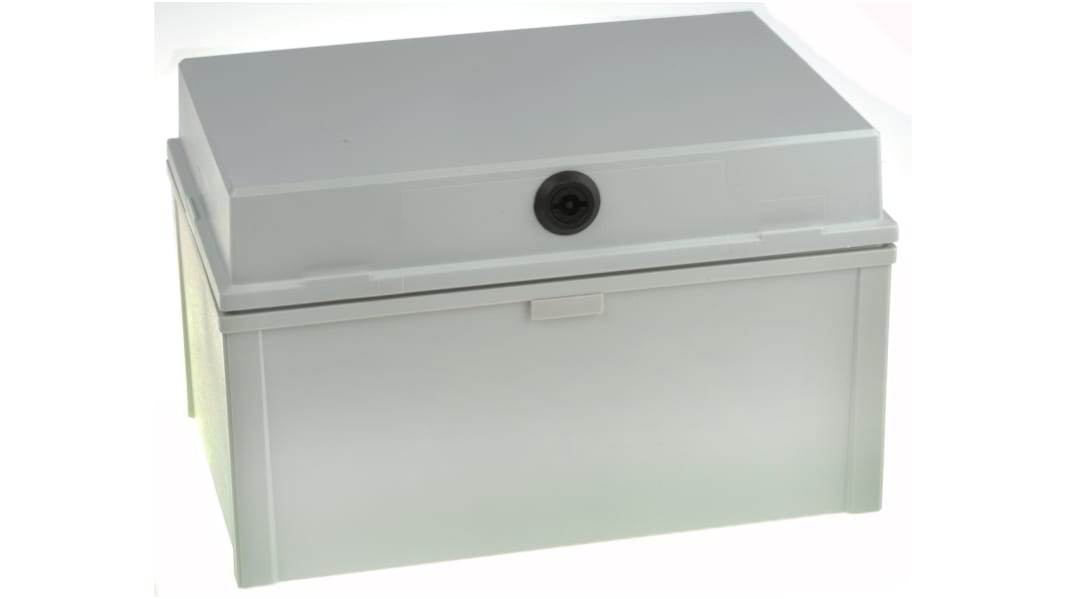

Fibox CAB PC, Polycarbonate Wall Box, IP65, 180mm x 300 mm x 200 mm

  • RS Stock No. 289-6005
  • Mfr. Part No. CAB PC 302018 G3B cabinet
  • Manufacturer Fibox
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

Fibox CAB PC Wall Mount Enclosures

High impact resistant, glass filled polycarbonate enclosures offering a viable and cost effective alternative to steel wall mounting enclosures. The material used is Halogen free and is flame tested to UL94-V2 (self-extinguishing).

Features and Benefits

• Polycarbonate light grey RAL 7035
• Polyurethane gasket
• IP65 and IK08 protection
• Electrically insulated
• Halogen free
• UV resistant
• Operating temperature range: -40°C to +80°C

Accessories (ordered separately)

• Swing doors/front plates, aluminium, 1.5 mm thick
• Mounting plates, galvanised steel, 1.5 mm thick
• Swing door kit for aluminium front plates. Contains a pair of hinges (in kit form). Each kit is for one swing door and comes with full installation instructions
• Wall Brackets, 4 pieces, includes screws

Standards

EN 60529, EN 62262.

Approvals

UL; IEC 529; EEI

Specifications
Attribute Value
External Height 300 mm
External Width 200 mm
External Depth 180mm
Body Material Polycarbonate
Transparent Door No
IP Rating IP65
Chassis Plate No
Door Lock Type Key
Gland Plate No
Colour Grey
Series CAB PC
Fixing Kit Yes
Internal Mounting Type Panel
External Mounting Type Bracket
20 In stock for delivery within 5 working day(s) (Global Stock)
Price (ex. GST) Each
$ 133.72
(exc. GST)
$ 147.09
(inc. GST)
units
Per unit
1 - 11
$133.72
12 - 24
$130.42
25 +
$128.47
