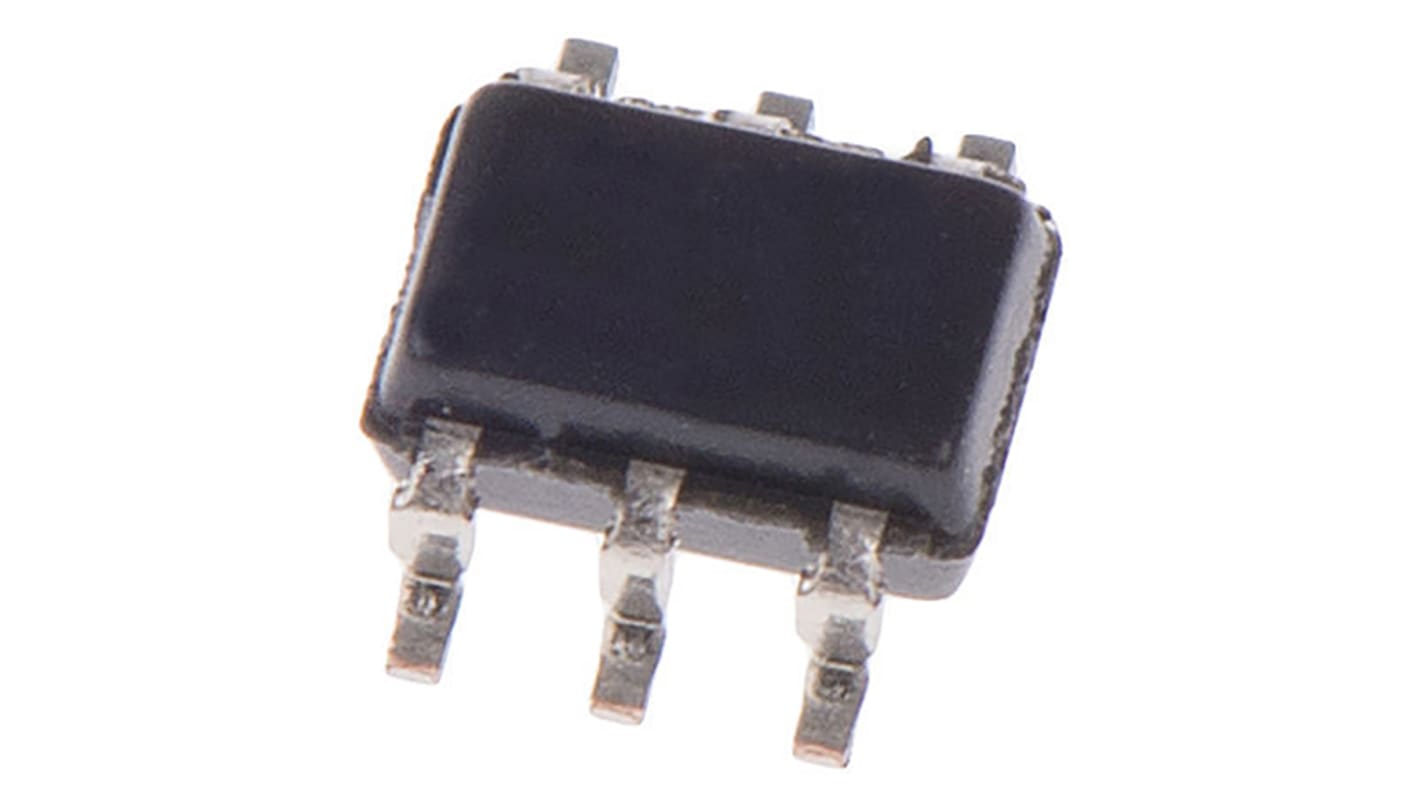

Analog Devices ADM1085AKSZ-REEL7, Voltage Supervisor, 0.6 → 22 V 6-Pin, SC-70

  • RS Stock No. 742-7705
  • Mfr. Part No. ADM1085AKSZ-REEL7
  • Manufacturer Analog Devices
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

Analogue Sequencers, Analog Devices

Analogue and Digital Sequencers, Analog Devices

Analogue and digitally programmable power supply sequencers solve power supply requirements. Analogue Sequencers control the functionality of power-on and power-down sequencing for voltage regulator banks. Digital Sequencers offer total power management platform for monitoring, measuring, sequencing, and margining of many voltages.

Specifications
Attribute Value
Voltage Supervisor Type Simple Sequencer
Number of Supervisors 1
Maximum Reset Threshold Voltage 0.64V
Minimum Reset Threshold Voltage 0.56V
Mounting Type Surface Mount
Package Type SC-70
Pin Count 6
Dimensions 2.2 x 1.35 x 1mm
Height 1mm
Length 2.2mm
Maximum Monitored Voltage 22V
Maximum Operating Supply Voltage 3.6 V
Minimum Monitored Voltage 0.6V
Minimum Operating Temperature -40 °C
Maximum Operating Temperature +125 °C
Minimum Operating Supply Voltage 2.25 V
Width 1.35mm
6125 In stock for delivery within 5 working day(s)
Price (ex. GST) Each (In a Pack of 5)
$ 1.57
(exc. GST)
$ 1.73
(inc. GST)
units
Per unit
Per Pack*
5 - 20
$1.57
$7.85
25 - 95
$1.258
$6.29
100 - 245
$1.102
$5.51
250 - 495
$0.972
$4.86
500 +
$0.854
$4.27
*price indicative
