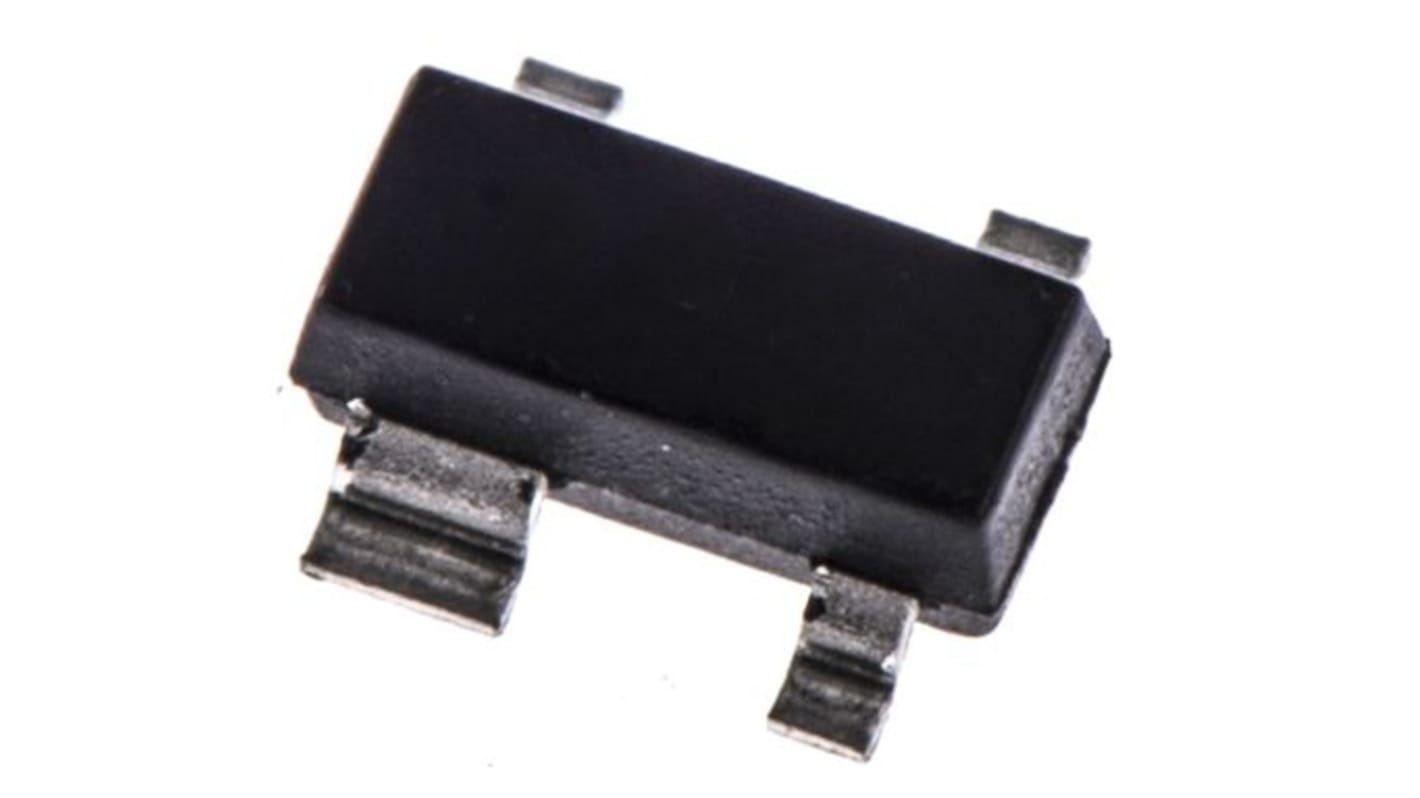

MAX811SEUS+T,Supervisory Circuits

Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): TH
Product Details

Integrated Voltage Monitor Increases System Robustness with Added Manual Reset
Precision Monitoring of 3V, 3.3V, and 5V Power-Supply Voltages
140ms Min Power-On-Reset Pulse Width
- Active-Low RESET Output (MAX811), RESET Output (MAX812)
Guaranteed Over Temperature
Guaranteed Active-Low RESET Valid to VCC = 1V (MAX811)
Power-Supply Transient Immunity
Saves Board Space
No External Components
4-Pin SOT143 Package
Low Power Consumption Simplifies Power-Supply Requirements
6μA Supply Current
Applications
Computers: Desktop, Workstation, Server
Controllers
Critical μP and μC Power Monitoring
Intelligent Instruments
Portable Battery-Powered Equipment

Specifications
Attribute Value
Voltage Supervisor Type Voltage Monitor
Number of Supervisors 1
Manual Reset Yes
Maximum Reset Threshold Voltage 3V
Minimum Reset Threshold Voltage 2.85V
Mounting Type Surface Mount
Package Type SOT-143
Pin Count 4
Dimensions 3.04 x 2.64 x 1.07mm
Height 1.07mm
Length 3.04mm
Maximum Operating Supply Voltage 5.5 V
Maximum Operating Temperature +85 °C
Width 2.64mm
Minimum Operating Supply Voltage 1.2 V
Minimum Operating Temperature -40 °C
