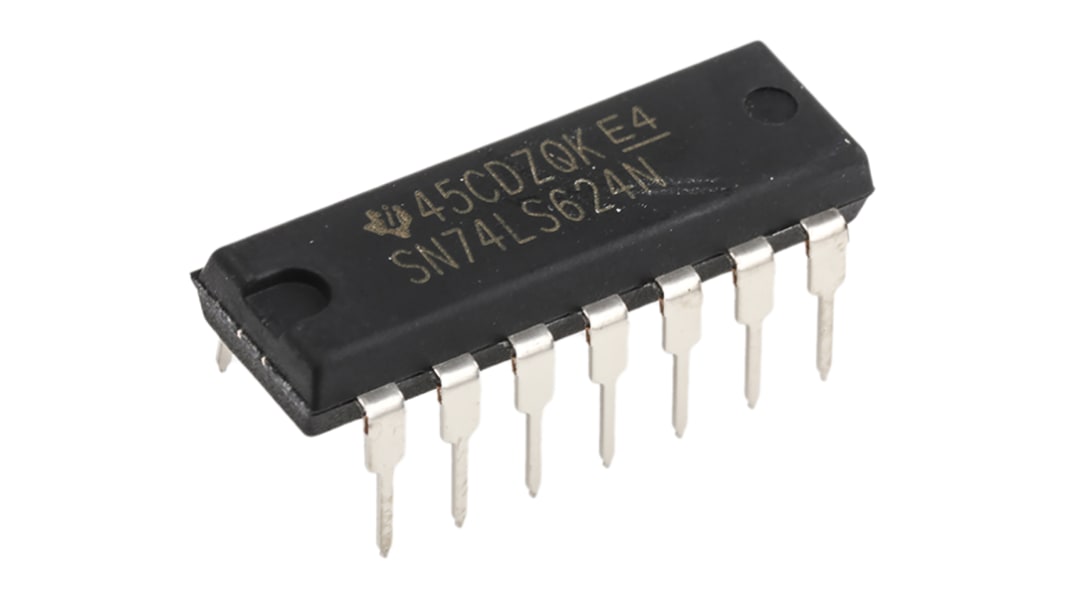

Texas Instruments SN74LS624N, VCO, 1.1 → 25 MHz, 14-Pin PDIP 19.3x6.35mm

Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

74LS Family Multivibrators & VCOs, Texas Instruments

Texas Instruments Monostable Multivibrators and Voltage Controlled Oscillators from the 74LS Family of Low Power Schottky Logic ICs. The 74LS Family use bipolar junction technology coupled with Schottky diode clamps to achieve operating speeds equal to the original 74TTL family but with much lower power consumption.

74LS Family

Specifications
Attribute Value
Oscillator Type VCO
Output Frequency 1.1 → 25 MHz
Load Capacitance 45pF
Package Type PDIP
Output Level Squarewave
Minimum Operating Temperature 0 °C
Maximum Operating Temperature +70 °C
Dimensions 19.3 x 6.35 x 4.57mm
Height 4.57mm
Maximum Operating Supply Voltage 5.25 V
Minimum Operating Supply Voltage 4.75 V
75 In stock for delivery within 5 working day(s)
Price (ex. GST) Each (In a Tube of 25)
$ 3.567
(exc. GST)
$ 3.924
(inc. GST)
units
Per unit
Per Tube*
25 +
$3.567
$89.175
*price indicative
