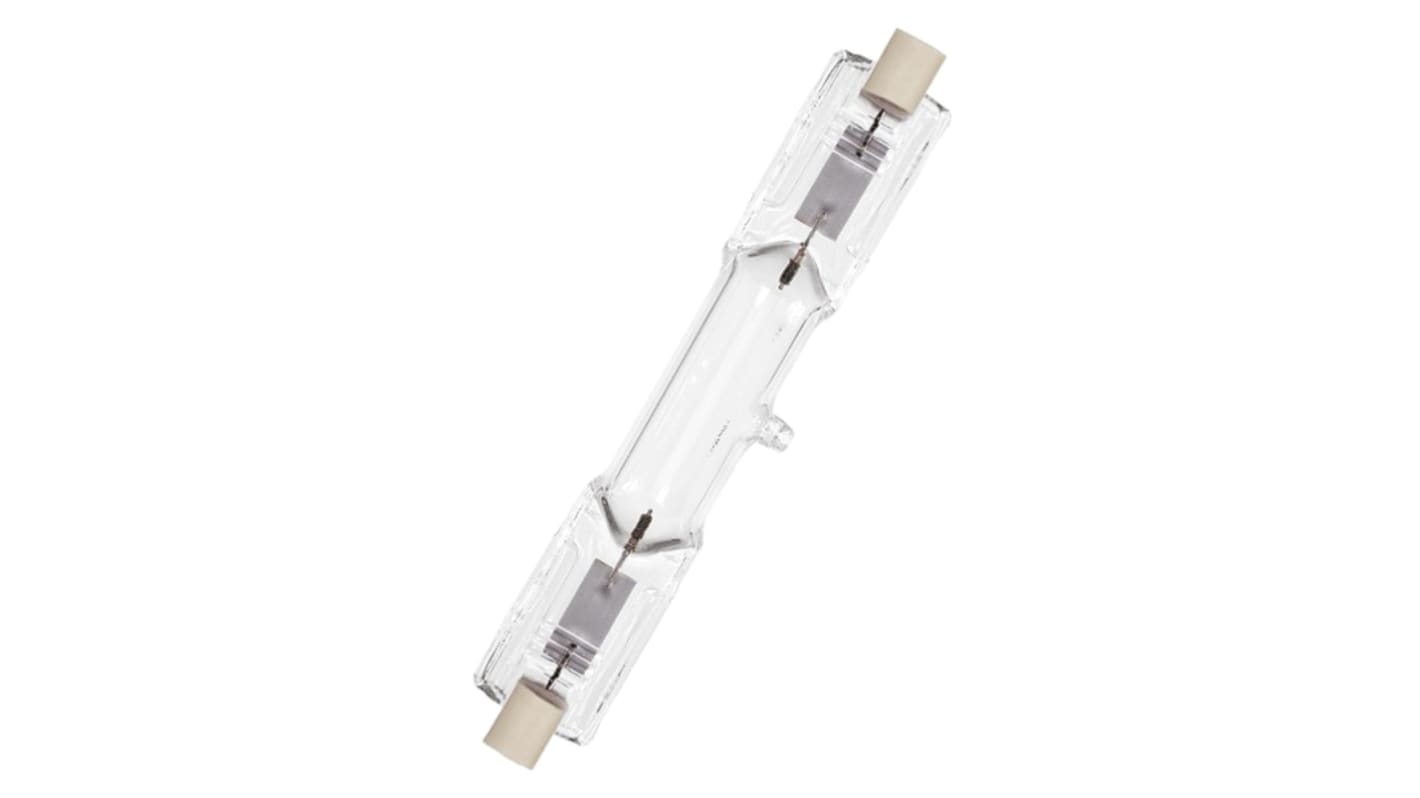

Osram 165 W UV Light Bulb R7s, length 57.6 mm, 230 V, 1000h

  • RS Stock No. 829-8886
  • Mfr. Part No. SUPRATEC HTT 150-211
  • Manufacturer Osram
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): DE
Product Details

Osram UV Curing Lamps

The Osram SUPRATEC range of UV curing lamps has been created specifically for industrial applications. These UV curing lamps use a combination of metal halides which create strong radiation in the UVA range (315-380 nm) and also in the UVB range (280-315 nm). Ideal applications of the SUPRATEC UV curing lamp are in hardening of plastic, drying lacquers, paints and varnishes, Glue curing and artificial material aging.

Features and Benefits

SUPRATEC UV high pressure lamps for technical applications
Curing large areas of plastic
Drying paint and varnishes
Glue curing
Exposure of diazo film material and print masters
Artificial material aging
Curing large areas of plastic

Warning

  • UV LEDs emit ultraviolet light which can be hazardous to the human eye. Do not look at operating UV LEDs without necessary skin and eye protection.
Specifications
Attribute Value
Wattage 165 W
Lamp Base R7s
Length 57.6 mm
Voltage Rating 230 V
Life Hours 1000h
17 In stock for delivery within 5 working day(s)
Price (ex. GST) Each
$ 170.98
(exc. GST)
$ 188.08
(inc. GST)
units
Per unit
1 +
$170.98
