- RS Stock No.:
- 174-9824
- Mfr. Part No.:
- SM0603UV-395
- Brand:
- Bivar
- RS Stock No.:
- 174-9824
- Mfr. Part No.:
- SM0603UV-395
- Brand:
- Bivar
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details

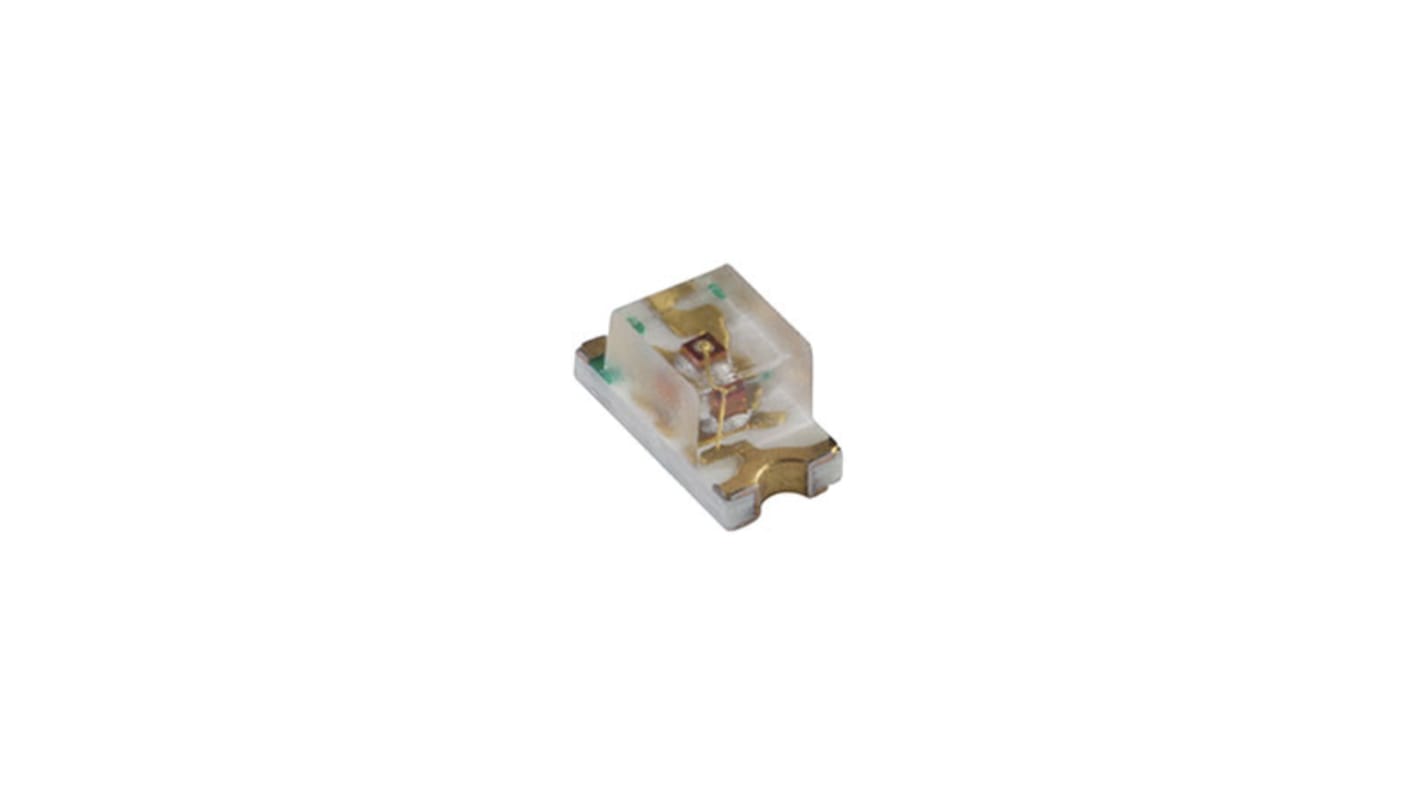

LED, SMD, 0603, UV, 395∼400nm, Water Clear Lens, 130 Deg Viewing Angle.
Industry Standard 0603 Package
Ultraviolet emitting LED
Water clear lens providing maximum radiant power output
Wide viewing angle of 130 degrees for uniform output
Ultraviolet emitting LED
Water clear lens providing maximum radiant power output
Wide viewing angle of 130 degrees for uniform output
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Specifications
Attribute | Value |
---|---|
Number of LEDs | 1 |
Peak Wavelength | 395 → 400nm |
Radiant Flux | 10mW |
Package Type | 0603 |
Viewing Angle | 130 ° |
Lens Shape | Dome |
Number of Pins | 2 |
LED Material | InGaN, SiC |
Mounting Type | Surface Mount |
Height | 0.6mm |
Length | 1.6mm |
Width | 0.8mm |
Dimensions | 1.6 x 0.8 x 0.6mm |
