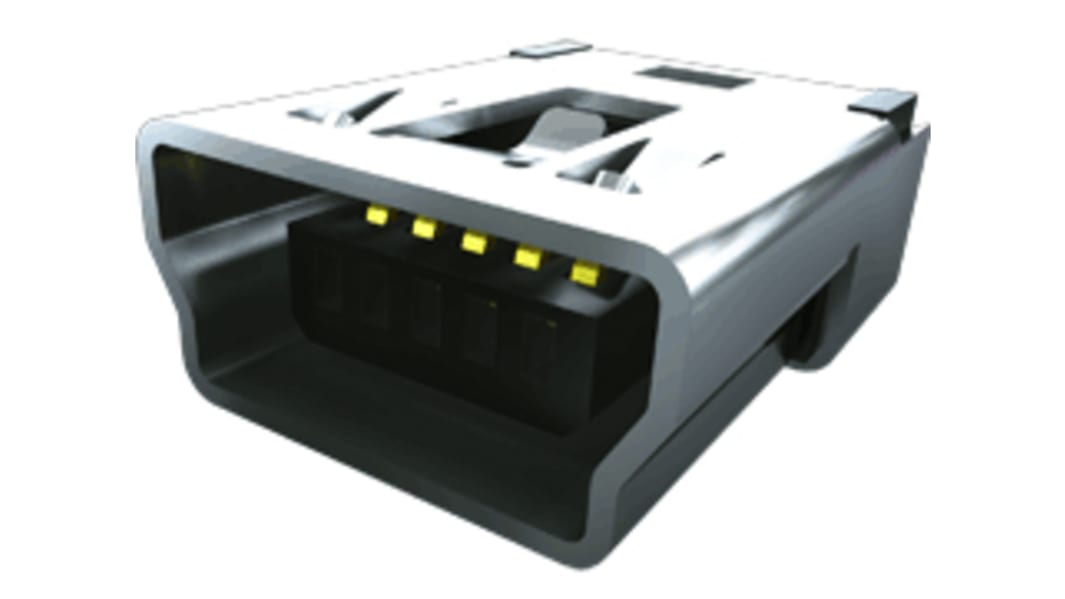

Samtec MUSB Series, Right Angle SMT, Version 2 Type AB Mini USB Connector, Receptacle

  • RS Stock No. 158-5608
  • Mfr. Part No. MUSB-05-F-AB-SM-A
  • Manufacturer Samtec
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

Mini USB 2.0 Interface

Available in standard or high-retention
Cost saving flash gold plating available
Mini USB 2.0 jacks
Type A, AB, and B available

Specifications
Attribute Value
Gender Female
USB Type Micro AB
Mounting Type Surface Mount
Termination Method Solder
USB Version 2.0
Body Orientation Right Angle
Voltage Rating 30.0 V
Series MUSB
Contact Material Phosphor Bronze
Minimum Operating Temperature -50.0°C
Maximum Operating Temperature +85°C
Temporarily out of stock - back order for despatch when stock is available
Price (ex. GST) 1 Tray of 1
$ 17.45
(exc. GST)
$ 19.19
(inc. GST)
Tray(s)
1 +
$17.45
