RS PRO GTC Sealed Series, , GTC Sealed Series Number Panel Mount, Version 3 Type A USB Connector, Receptacle

  • RS Stock No. 122-3032
  • Manufacturer RS PRO
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): TW
Product Details

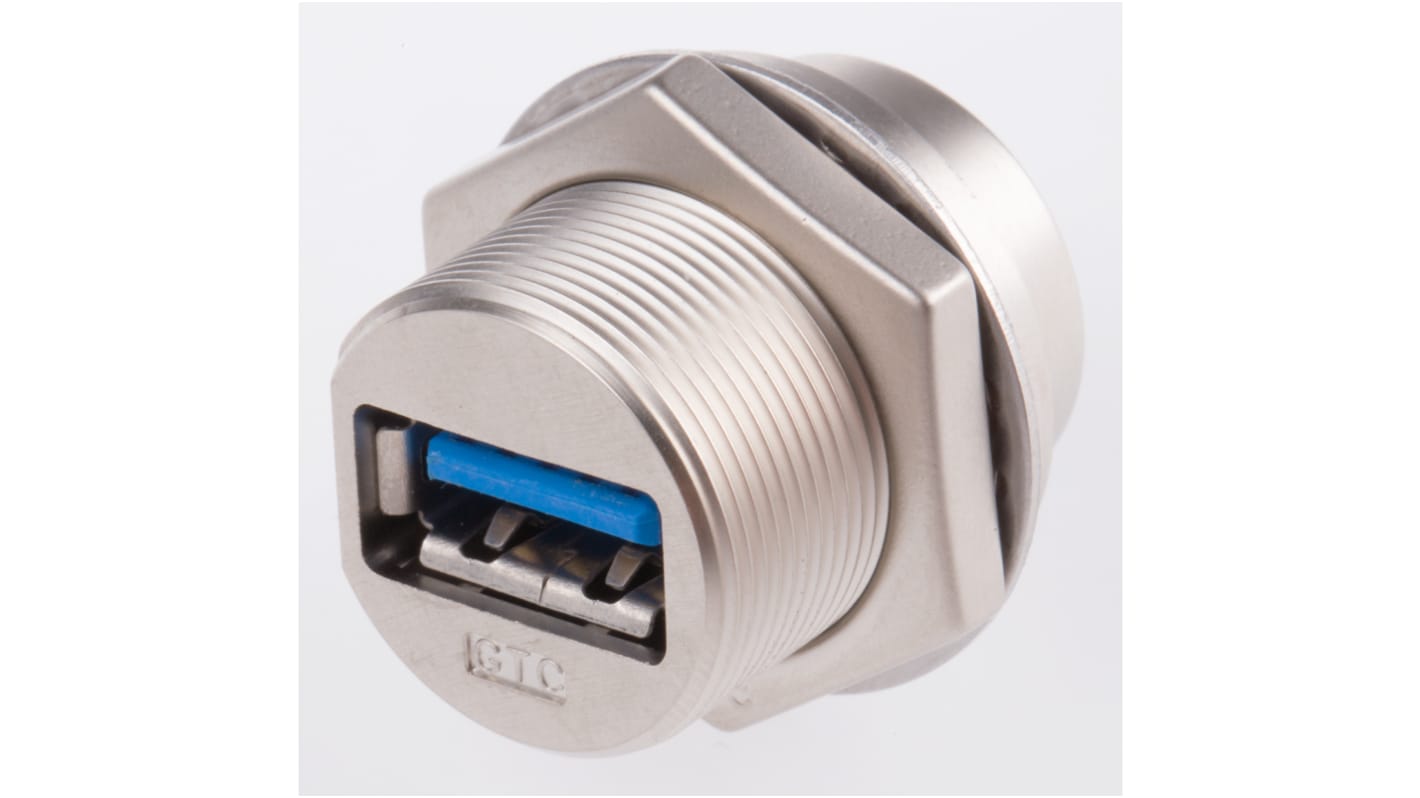

RS Pro Waterproof Metal USB-A Panel Mount Jacks

From the trusted RS Pro brand, a series of superior quality waterproof USB-A metal connectors. These IP68 panel mount jacks have copper alloy gold plated contacts housed in a copper alloy nickel plated shell. The connectors have red silicone O-Rings to ensure a tight weatherproof grading and EMI shield plates for interference screening. The IP68 panel mount jacks are suited to applications where the prevention of dust and water ingress is essential.

Features and Benefits

IP68 rated
Metal construction
Rugged design
RoHS compliant

Applications

Wireless outdoor AP
Medical equipment
GPS
Industrial PC
Outdoor LED display
Military equipment

Specifications
Attribute Value
Gender Female
USB Type A
Mounting Type Panel Mount
Termination Method Solder
USB Version 3.0
Body Orientation Straight
Number of Ports 1
Current Rating 1.5A
Voltage Rating 500.0 V
Series GTC Sealed
Series Number GTC Sealed
Contact Material Copper Alloy
Minimum Operating Temperature -40.0°C
Maximum Operating Temperature +105°C
96 In stock for delivery within 5 working day(s) (Global Stock)
Price (ex. GST) Each
$ 53.71
(exc. GST)
$ 59.08
(inc. GST)
units
Per unit
1 - 4
$53.71
5 - 9
$51.83
10 - 24
$50.03
25 - 49
$48.59
50 +
$47.11
